Recommended initialisation (via 14-22 Operation Mode)
1.
Select 14-22 Operation Mode.
2. Press [OK].
3.
Select [2] Initialisation (for NLCP select “2”).
4. Press [OK].
5. Remove power to unit and wait for display to
turn off.
6. Reconnect power and the frequency converter is
reset. Note that first start-up takes a few more
seconds.
7. Press [Reset]
14-22 Operation Mode initialises all except:
14-50 RFI Filter
8-30 Protocol
8-31 Address
8-32 Baud Rate
8-35 Minimum Response Delay
8-36 Max Response Delay
8-37 Maximum Inter-Char Delay
15-00 Operating hours to 15-05 Over Volt's
15-20 Historic Log: Event to 15-22 Historic Log: Time
15-30 Alarm Log: Error Code to 15-32 Alarm Log: Time
NOTICE
Parameters selected in 0-25 My Personal Menu stay
present with default factory setting.
Manual initialisation
NOTICE
When carrying out manual initialisation, serial communi-
cation, RFI filter settings and fault log settings are reset.
Removes parameters selected in 0-25 My Personal Menu.
1. Disconnect from mains and wait until the display
turns off.
2. Press
2a [Status] - [Main Menu] - [OK] at the
same time while power up for Graphical
LCP (GLCP).
2b [Menu] while power up for LCP 101,
Numerical Display.
3. Release the keys after 5 s.
4. The frequency converter is now programmed
according to default settings.
This parameter initialises all except:
15-00 Operating hours
15-03 Power Up's
15-04 Over Temp's
15-05 Over Volt's
4.1.11
RS-485 Bus Connection
One or more frequency converters can be connected to a
controller (or master) using the RS-485 standard interface.
Terminal 68 is connected to the P signal (TX+, RX+), while
terminal 69 is connected to the N signal (TX-,RX-).
If more than one frequency converter is connected to a
master, use parallel connections.
130BA060.11
68 69 68 69 68 69
RS 485
RS 232
USB
+
-

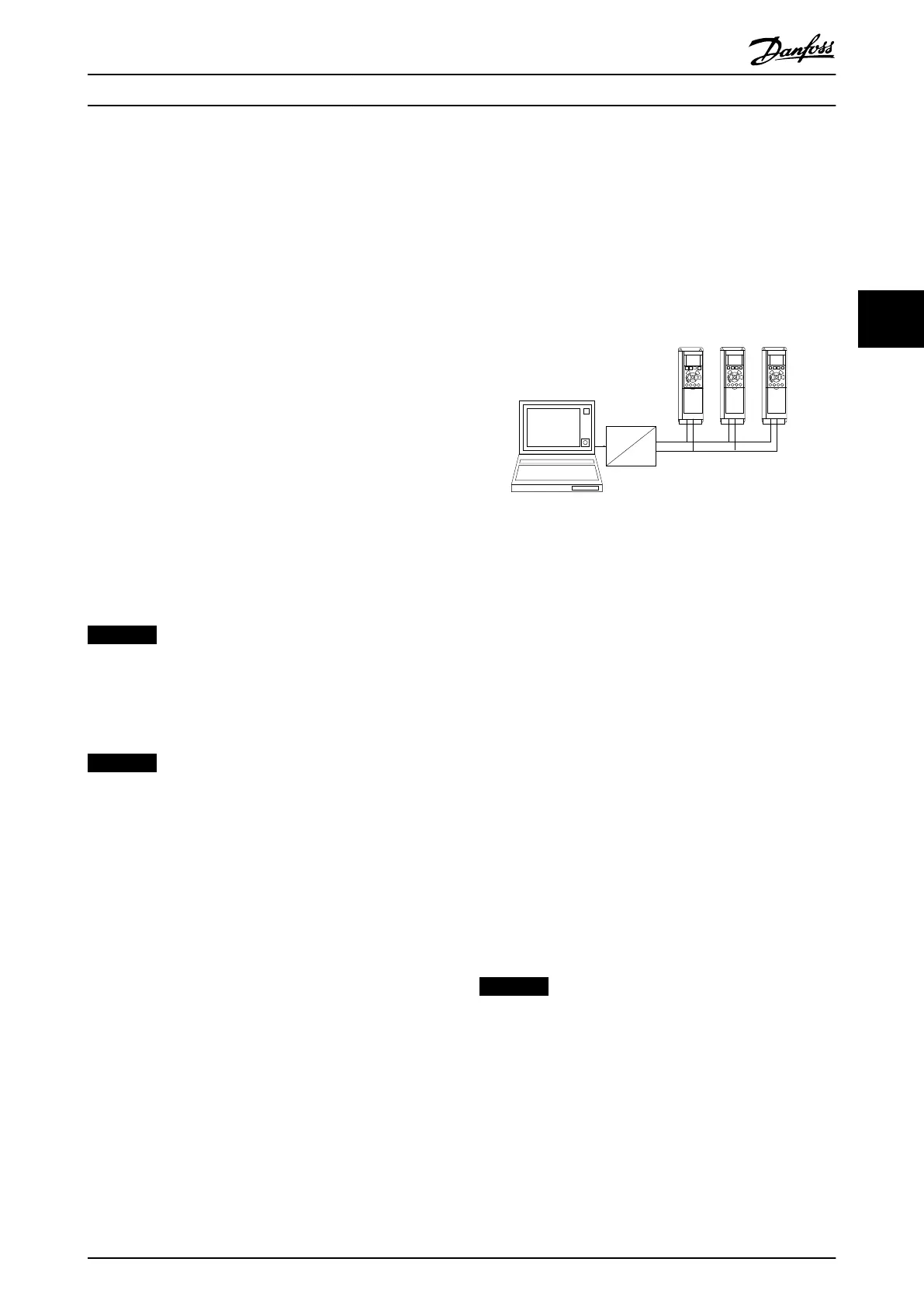

Illustration 4.21 Connection Example.
To avoid potential equalizing currents in the screen,
ground the cable screen via terminal 61, which is
connected to the frame via an RC-link.
Bus termination
The RS-485 bus must be terminated by a resistor network
at both ends. If the frequency converter is the first or the
last device in the RS-485 loop, set the switch S801 on the
control card for ON.
For more information, see the paragraph Switches S201,
S202, and S801.
4.1.12
How to Connect a PC to the
Frequency Converter
To control or program the frequency converter from a PC,
install the PC-based configuration tool MCT 10 Set-up
Software.
The PC is connected via a standard (host/device) USB
cable, or via the RS-485 interface as shown in
chapter 4.1.11 RS-485 Bus Connection.
NOTICE
The USB connection is galvanically isolated from the
supply voltage (PELV) and other high-voltage terminals.
The USB connection is connected to protection earth.
Use only an isolated laptop as PC connection to the USB
connector on the frequency converter.
How to operate the frequenc... VLT AQUA Drive FC 202 Operation Instructions
MG20P402 - Rev. 2013-12-16 77
4 4
