Danfoss VLT AutomationDrive FC 300 Series Service Guide

2
12
6
4
1
8
9
11
10
5
3
130BF856.10
7
1 Current scaling card 7 MK501
2 Power card (PCA3) 8 MK902
3 MK104 9 MK106
4 MK101 10 Power card mounting plate
5 MK103 11 Stando (8 mm)
6 MK502 12 Plastic stando

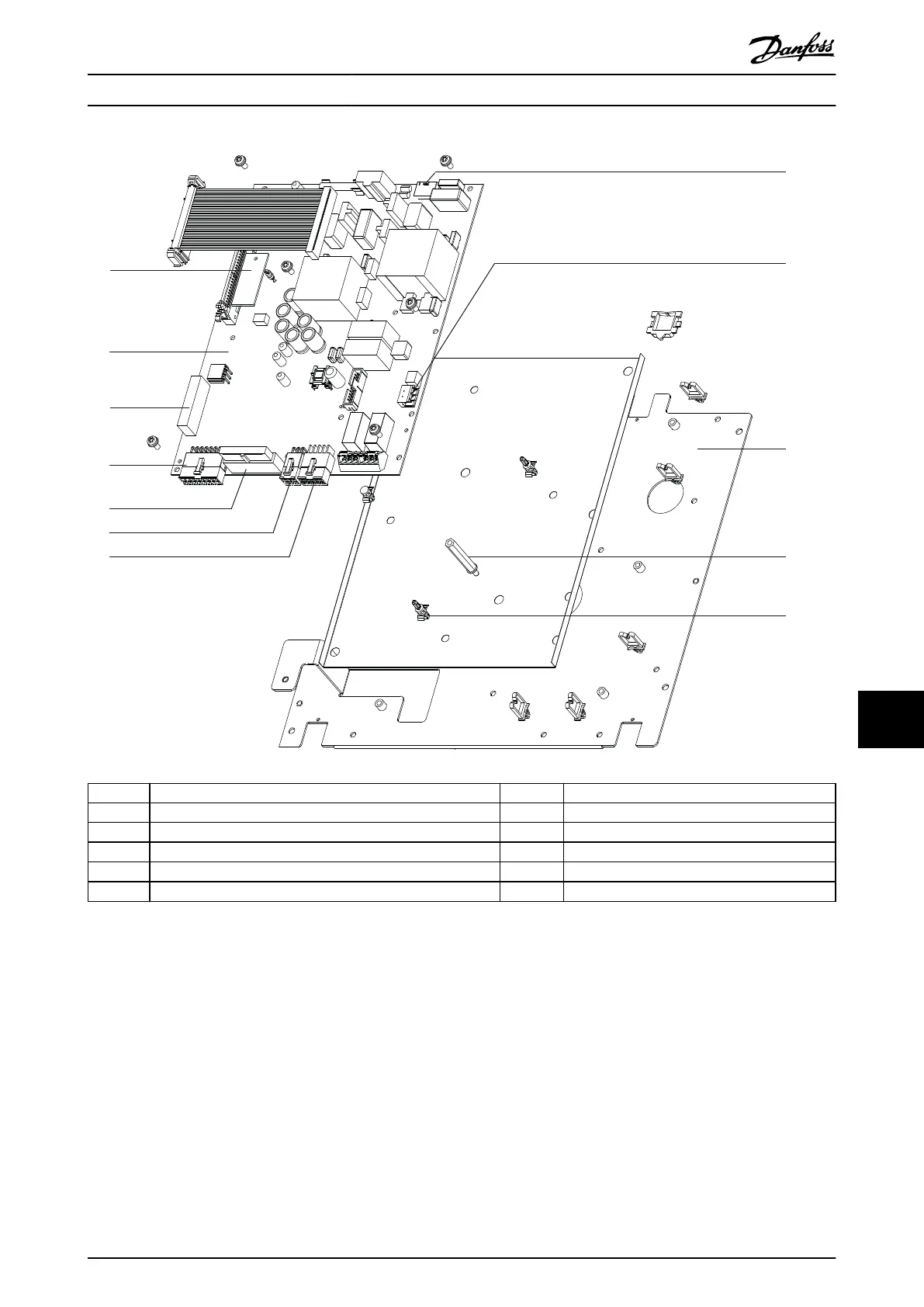

Illustration 11.2 Power Card and Power Card Mounting Plate
D2h/D4h/D7h/D8h/J9 Unit Dis... Service Guide
MG94A502 Danfoss A/S © 02/2019 All rights reserved. 191
11 11
