Danfoss VLT AutomationDrive FC 300 Series Service Guide

e30bg857.10
1
2
3
4
5
6
7
8
9
10
11
12
13
14

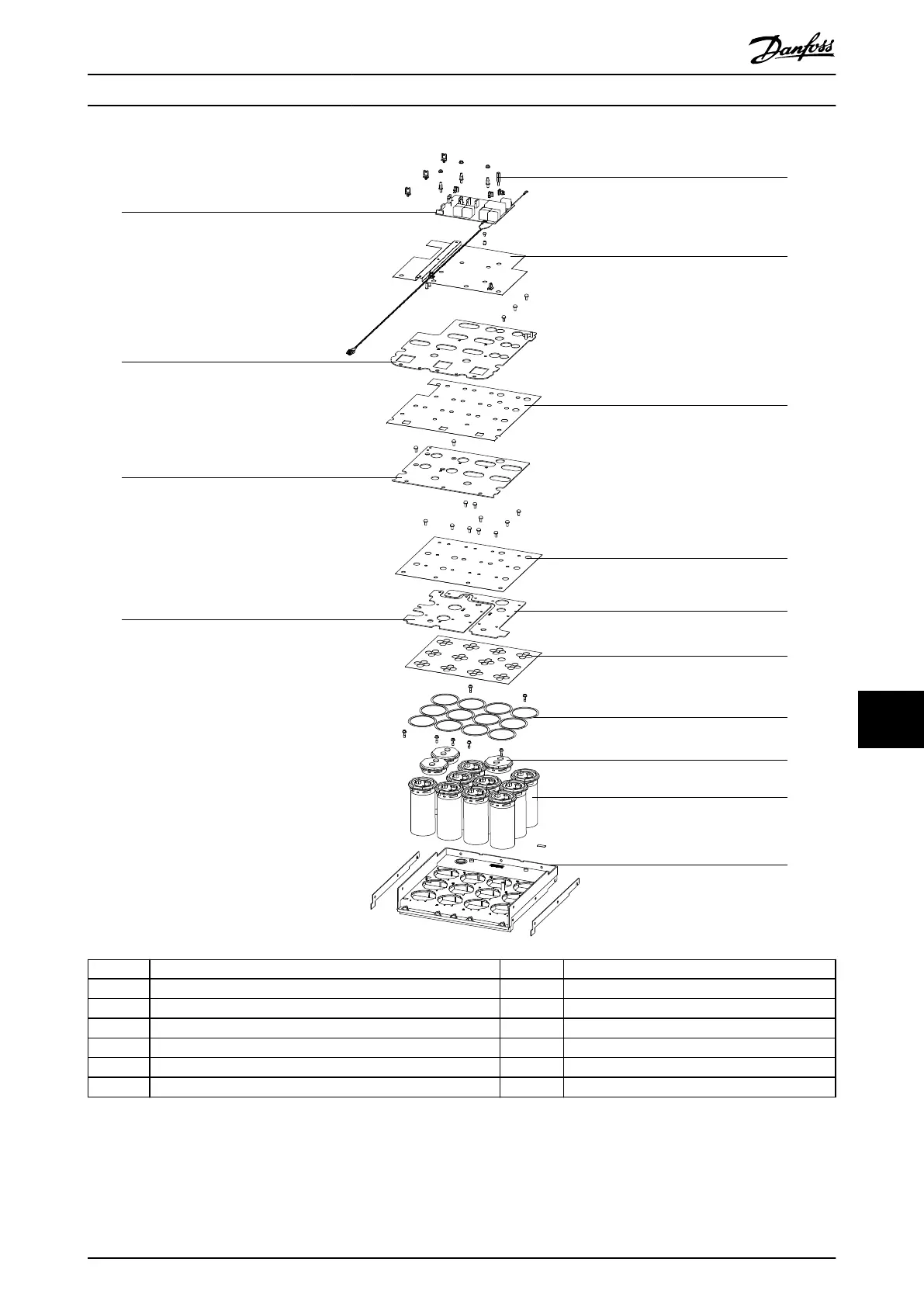

1 Balance/high frequency card 8 Insulator sheet 3
2 DC(+) plate 9 Midplate 2
3 Midplate 1 10 Capacitor locking panel
4 DC(-) plate 11 O-ring gasket
5 Stando 12 Plug
6 Insulator sheet 1 13 Twistlock DC capacitor
7 Insulator sheet 2 14 Capacitor bank housing
Illustration 11.23 Twistlock DC Capacitors, 690 V AC Unit
D2h/D4h/D7h/D8h/J9 Unit Dis... Service Guide
MG94A502 Danfoss A/S © 02/2019 All rights reserved. 227
11 11
