Danfoss VLT AutomationDrive FC 300 Series Service Guide

1
2
3
4
5
6
130BF844.10
1 Cable retaining clip 4 SCR input busbar
2 SCR/diode module 5 Screw (T25)
3 Screw (T40) 6 Nut (8 mm)

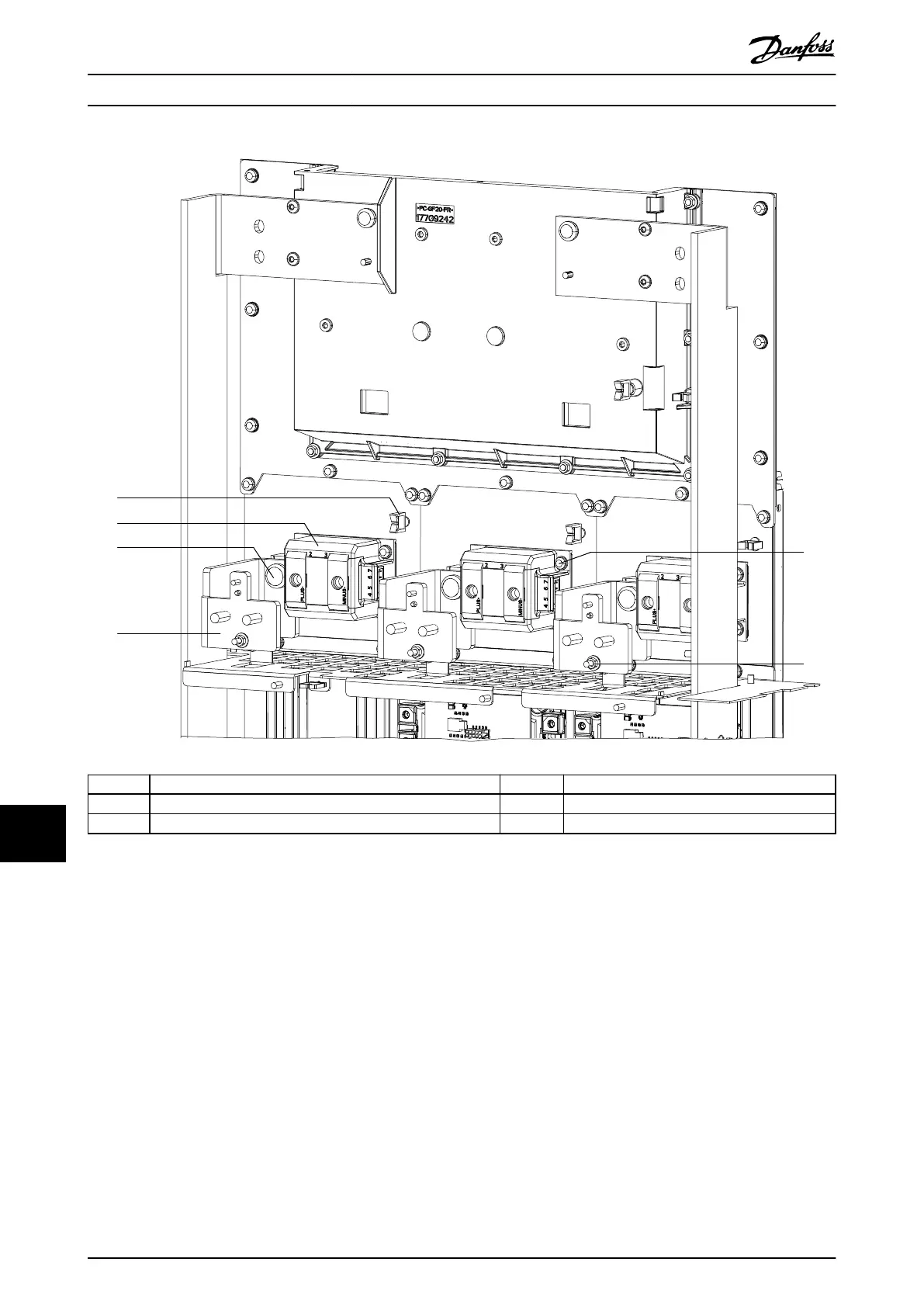

Illustration 13.7 SCR/Diode Modules
E1h–E4h Drive Disassembly a...
VLT
®
FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
274 Danfoss A/S © 02/2019 All rights reserved. MG94A502
1313
