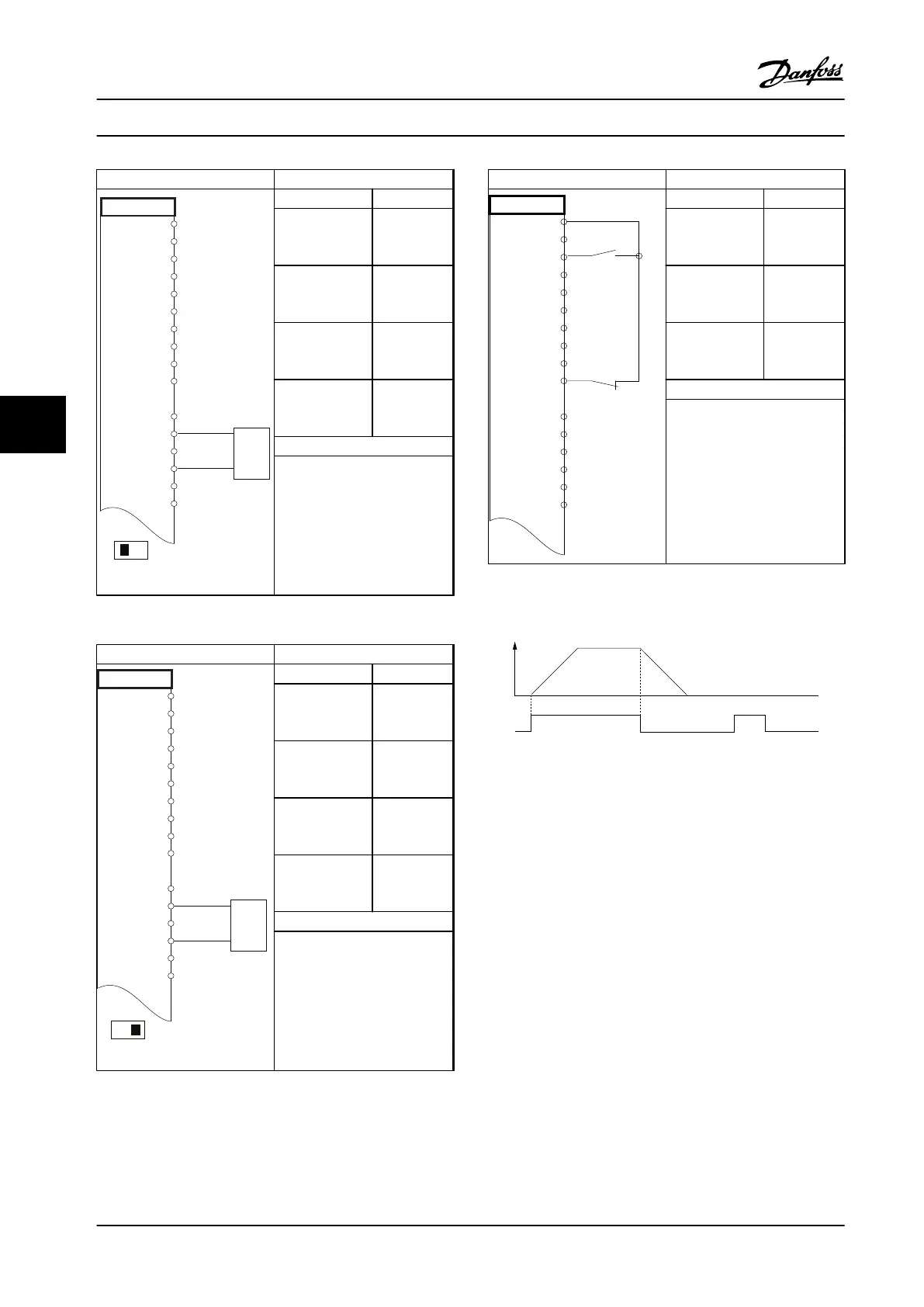

Danfoss VLT AutomationDrive FC 300 Series Installation Manual

Parameters
FC
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
D IN
+10
V
A IN
A IN
COM
A OUT
COM
12
13
18
19
20
27
29
32
33
37
50
53
54
55
42
39
A53
U - I
-10 - +10V
+
-
130BB926.10
Function Setting
parameter 6-10
Terminal 53 Low
Voltage
0.07 V*
parameter 6-11
Terminal 53 High
Voltage
10 V*
parameter 6-14
Terminal 53 Low
Ref./Feedb. Value
0 RPM
parameter 6-15
Terminal 53 High
Ref./Feedb. Value
1,500 RPM
*=Default Value
Notes/comments:
Table 6.3 Analog Speed Reference (Voltage)
Parameters
130BB927.10
FC
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
D IN
+10
V
A IN
A IN
COM
A OUT
COM
12
13
18
19
20
27
29
32
33
37
50
53
54
55
42
39
A53
U - I
4 - 20mA
+
-
Function Setting
parameter 6-12
Terminal 53 Low
Current
4 mA*
parameter 6-13
Terminal 53 High
Current
20 mA*
parameter 6-14
Terminal 53 Low
Ref./Feedb. Value
0 RPM
parameter 6-15
Terminal 53 High
Ref./Feedb. Value
1,500 RPM
*=Default Value
Notes/comments:
Table 6.4 Analog Speed Reference (Current)
Parameters
FC
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
D IN
+10
A IN
A IN
COM
A OUT
COM
12
13
18
19
20
27
29
32
33
37
50
53
54
55
42
39
130BB802.10
Function Setting
parameter 5-10
Terminal 18
Digital Input
[8] Start*
parameter 5-12
Terminal 27
Digital Input
[0] No
operation
parameter 5-19
Terminal 37
Digital Input
[1] Safe Stop
Alarm
*=Default Value
Notes/comments:
If parameter 5-12 Terminal 27
Digital Input is set to [0] No
operation, a jumper wire to
terminal 27 is not needed.
Table 6.5 Start/Stop Command with Safe Torque O
130BB805.11
Speed
Start (18)
Figure 6.1 Start/Stop with Safe Torque O
Application Examples
