L1R, L2S, L3T
R, S, T
L1R, L2S, L3T
R, S, T
e30bu873.10

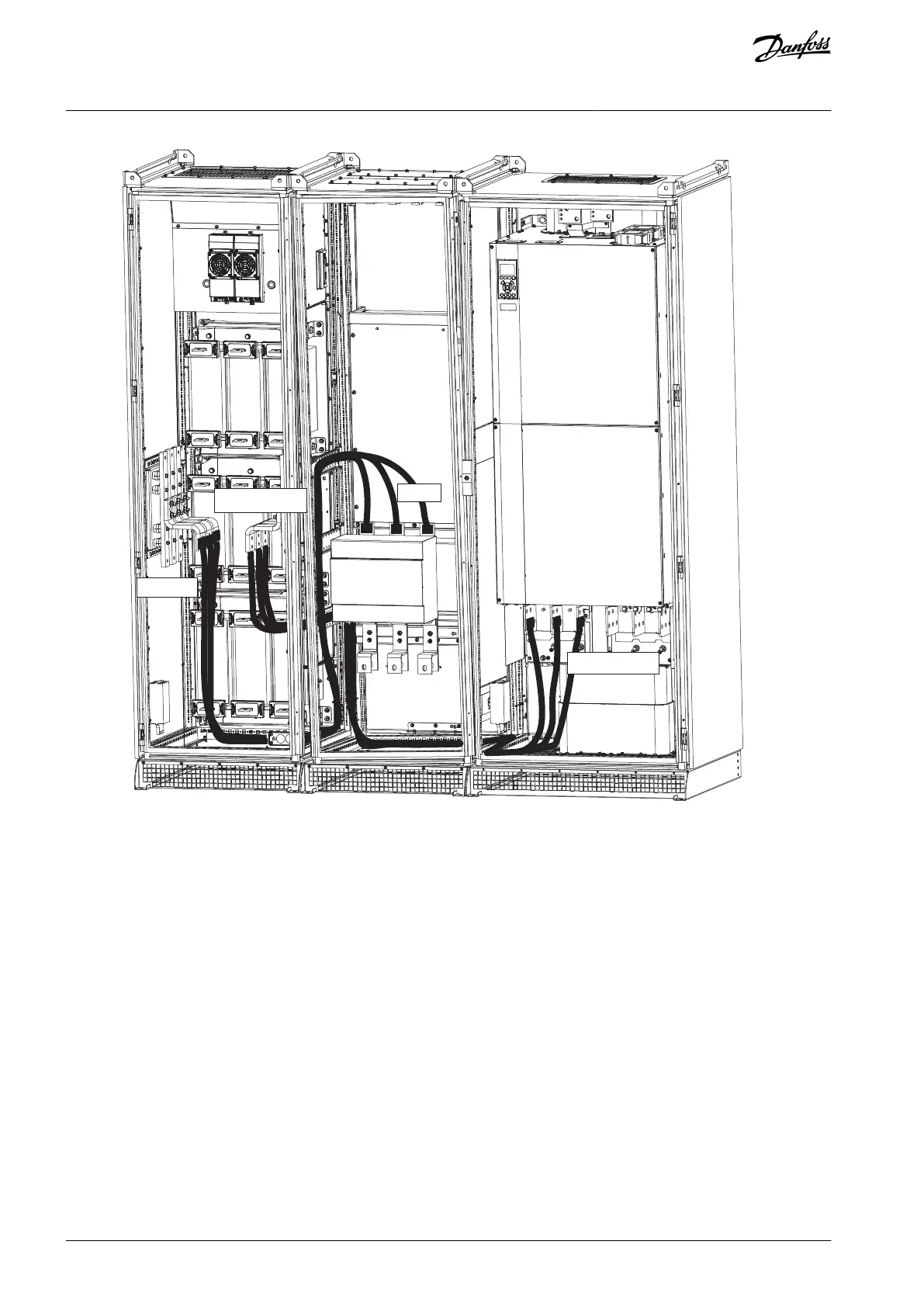

Illustration 30: Cable Routing for Line Reactor Cabinet to Input Power Options Cabinet and E6h Drive Cabinet (Internal Wiring Connection Be-
tween Inductors in the Line Reactor Cabinet Is Not Shown)
AQ262139143212en-000301 / 130R087964 | Danfoss A/S © 2021.10
Electrical Installation
VLT® AutomationDrive FC 302
Operating Guide
