5.8.4 J9 Terminal Dimensions
33 (1.3) 91 (3.6)
149 (5.8) 211 (8.3)
265 (10.4) 319 (12.6)
200 (7.9)
319 (12.6)
e30bg616.10
0.0
o.o
1
2
3
1 Mains terminals 3 Ground terminals
2 Motor terminals – –

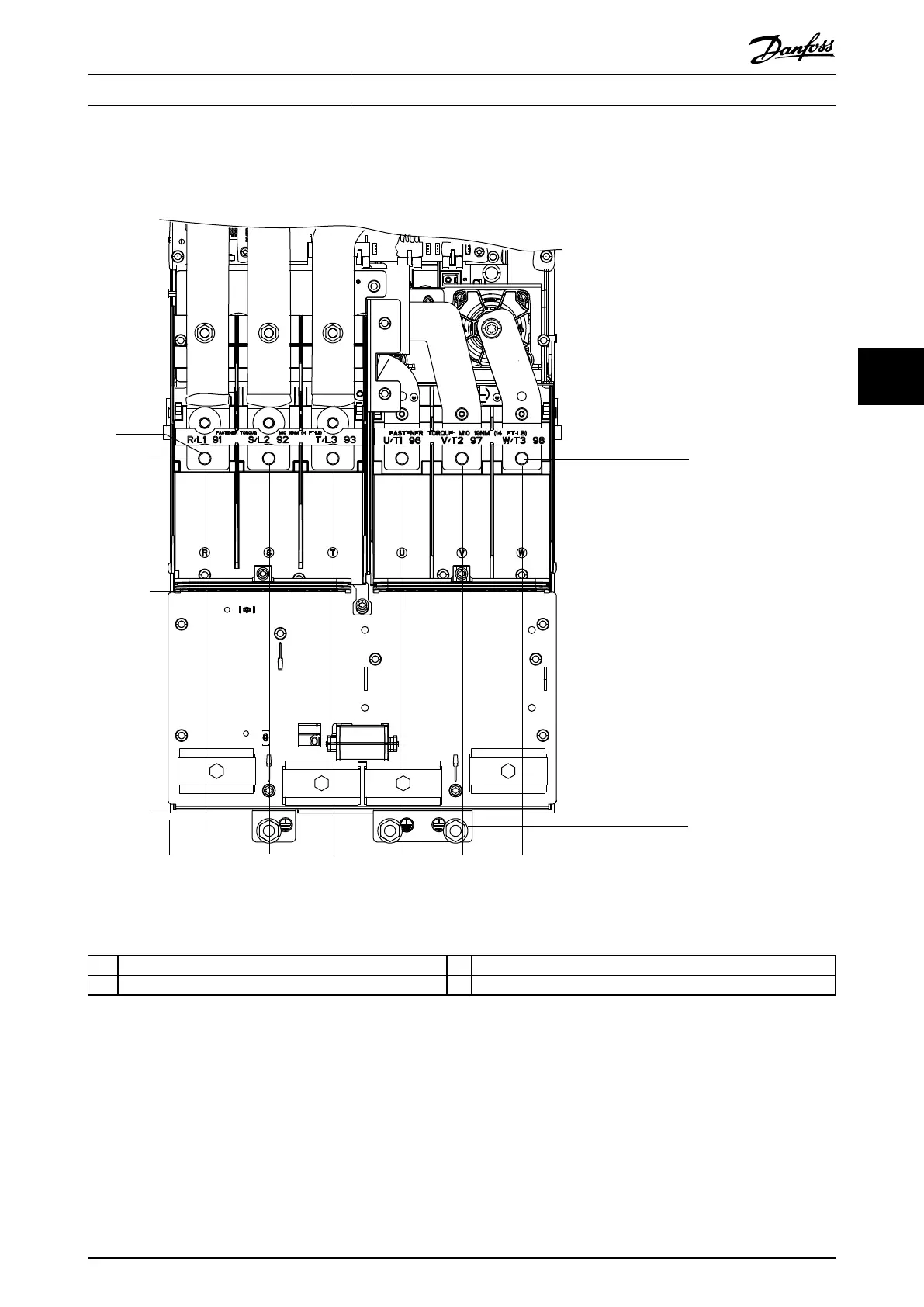

Illustration 5.10 J9 Terminal Dimensions (Front View)
