130BB838.12
a
b
c
d
e
f
A Installations with cables connected in a common joint as shown in A and B are only recommended for short cable lengths.
B Be aware of the maximum motor cable length specied in chapter 5.5 Cable Specications.
C The total motor cable length specied in chapter 5.5 Cable Specications is valid as long as the parallel cables are kept less than
10 m (32 ft) each.
D Consider voltage drop across the motor cables.
E Consider voltage drop across the motor cables.
F The total motor cable length specied in chapter 5.5 Cable Specications is valid as long as the parallel cables are kept less than
10 m (32 ft) each.

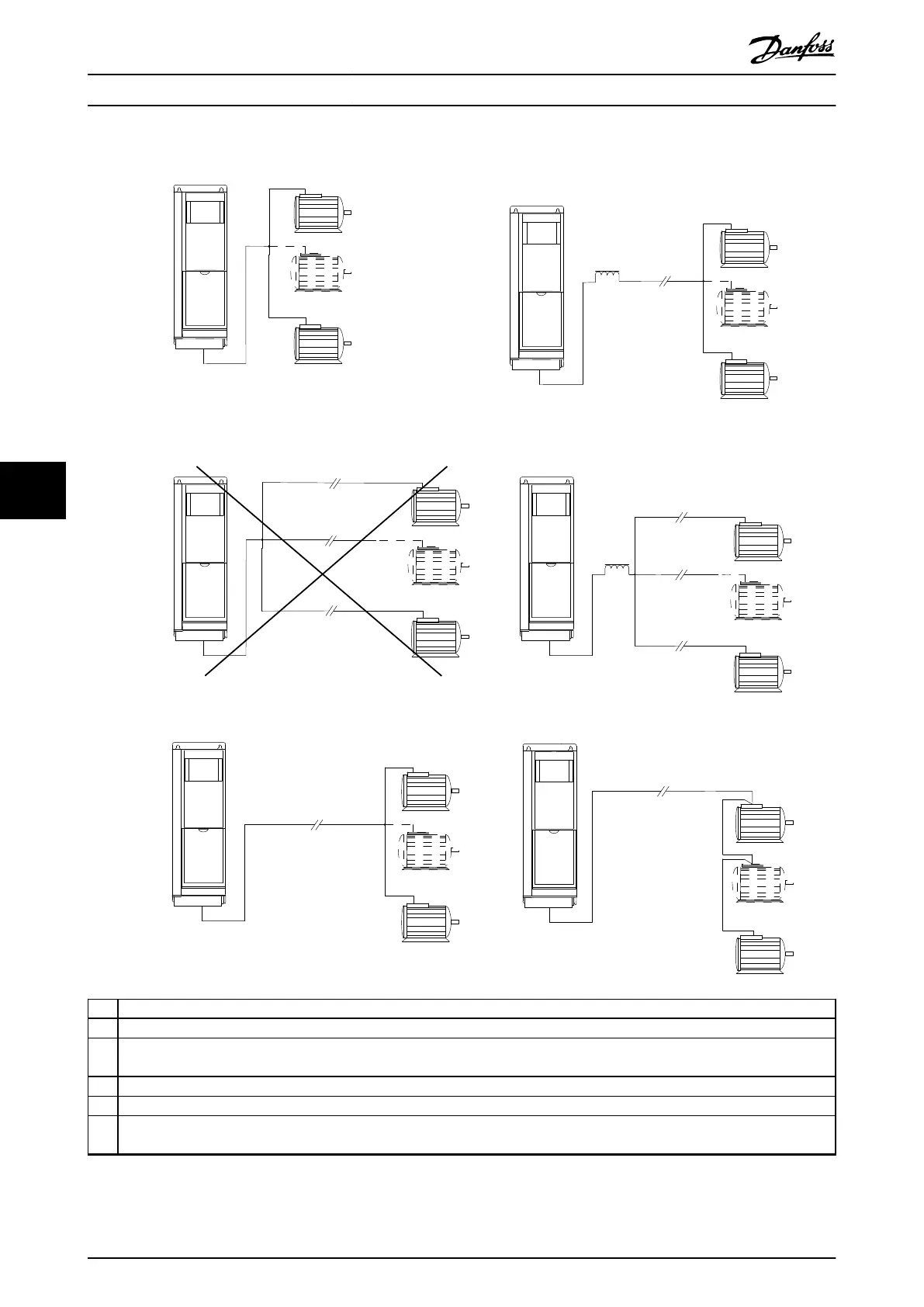

Illustration 7.10 Dierent Parallel Connections of Motors
Electrical Installation Con... VLT® AutomationDrive FC 361
46 Danfoss A/S © 03/2019 All rights reserved. MG06K102
77
