9.7.15 Figure 15 - 917CMD37
130BD281.10
175Uxxxx
8
6
160 [ 6.3 ]
60 [ 2.4 ]
25 [ 1.0 ]
30 [ 1.2 ]
4
3
90 [ 3.5 ]
3
100 [ 3.9 ]
100 [ 3.9 ]

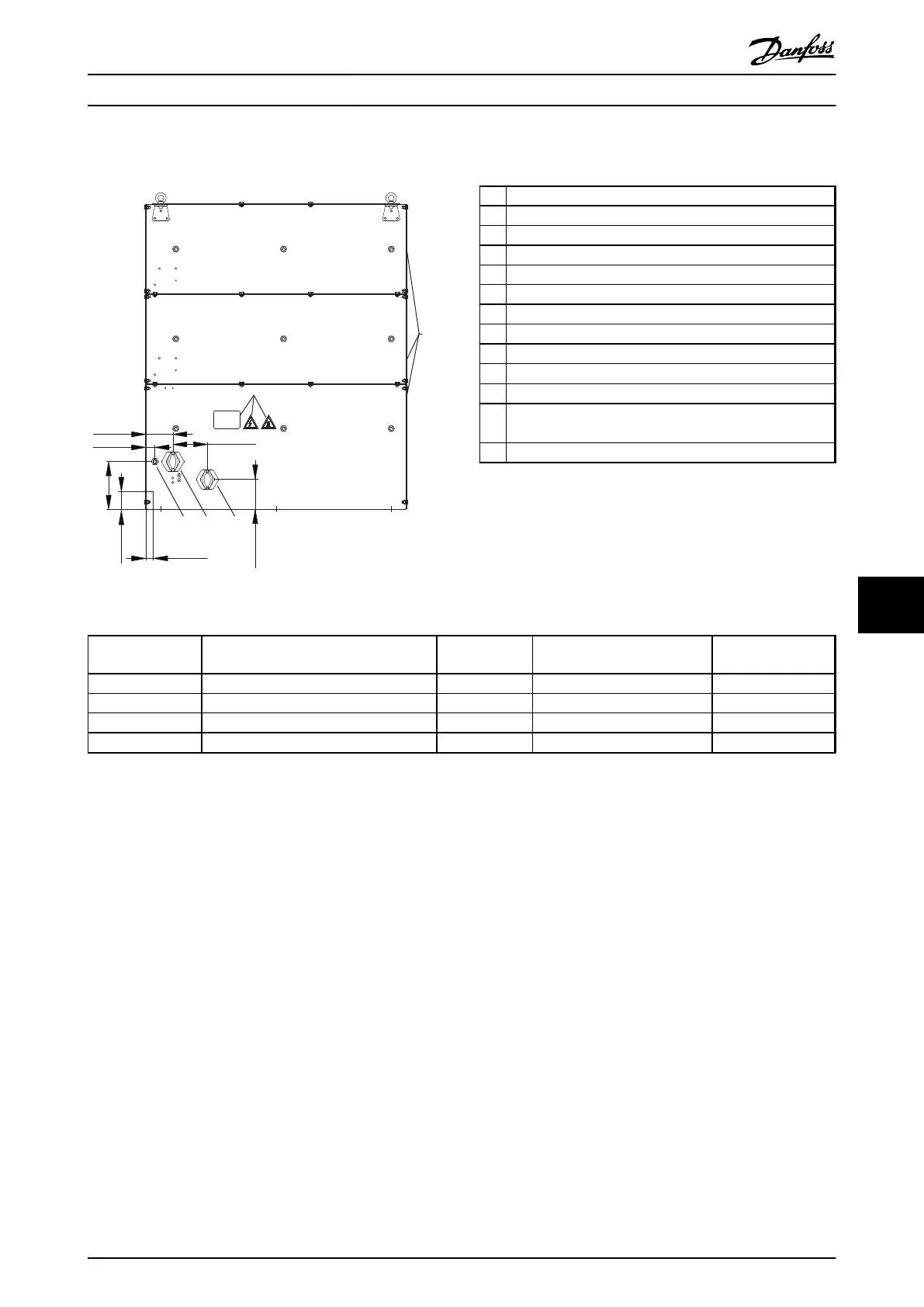

Illustration 9.74 IP20, Side View, Right
1 Resistor
2
Terminal board, see Illustration 9.77
3 Cable gland for load cables
4 Cable gland M16 temperature switch cable
5 Grounding bolt M10
6 Name plate/warning signs
7 Front cover IP20
8 Rear cover IP20
9 Top cover IP20
10
Temperature switch 260 °C (NC)
11 Load connection, 2x bolt M8
12 Auxiliary connection for temperature switch, porcelain
clamp 2.5 mm
2
13 6x fixing hole Ø 9 mm
Table 9.29 Legend to Illustration 9.74 to Illustration 9.78
Danfoss P/N Type code
Resistance [Ω]
Cable gland type for load
terminals
Weight [kg]
175u3220 MCE101C5R00P78K0E20BAW 5.0 2xM25 182
175u3222 MCE101C4R00P90K0E20BAW 4.0 2xM32 190
175u3228 MCE101C2R70P78K0E20BAW 2.7 2xM32 182
175u3230 MCE101C2R10P90K0E20BAW 2.1 2xM40 190
Table 9.30 Mechanical Dimensions
Specifications
Design Guide
MG90O202 Danfoss A/S © Rev. 05/2014 All rights reserved. 117
9 9
