Danfoss P/N Typecode
[Ω]
L ±2 mm L ±0.08 in L1 ±2 mm L1 ±0.04 in
Weight [kg]
175U3118 MCE101A270RP1k13E21TAW 270 660 25.98 560 22.05 5.4
175U3120 MCE101A200RP1k13E21TAW 200 660 25.98 560 22.05 5.4
175U3124 MCE101A145RP450RE21TAW 145 260 10.24 160 6.30 2.4
175U3136 MCE101A100RP570RE21TAW 100 330 12.99 230 9.06 3
175U3144 MCE101A70R0P790RE21TAW 70 460 18.11 360 14.17 3.9
175U3402 MCE101A100RP450RE21TAW 100 260 10.24 160 6.30 2.4
175U3404 MCE101A70R0P570RE21TAW 70 330 12.99 230 9.06 3
175U3406 MCE101A48R0P960RE21TAW 48 560 22.05 460 18.11 4.6
175U3408 MCE101A35R0P1K13E21TAW 35 660 25.98 560 22.05 5.4
175U3416 MCE101A410RP450RE21TAW 410 260 10.24 160 6.30 2.4
175U3418 MCE101A270RP570RE21TAW 270 330 12.99 230 9.06 3
175U3420 MCE101A200RP960RE21TAW 200 560 22.05 460 18.11 4.6
175U3422 MCE101A145RP1K13E21TAW 145 660 25.98 560 22.05 5.4
175U3430 MCE101A570RP450RE21TAW 570 260 10.24 160 6.30 2.4
175U3432 MCE101A470RP570RE21TAW 415 330 12.99 230 9.06 3
175U3434 MCE101A270RP960RE21TAW 270 560 22.05 460 18.11 4.6
175U3436 MCE101A200RP1K13E21TAW 200 660 25.98 560 22.05 5.4
175U3442 MCE101A18R0P570RE21TAW 18 330 12.99 230 9.06 3
175U3450 MCE101A110RP450RE21TAW 110 260 10.24 160 6.30 2.4
175U3452 MCE101A80R0P570RE21TAW 80 330 12.99 230 9.06 3
175U3456 MCE101A72R0P680RE21TAW 72 400 15.75 300 11.81 3.5
175U3458 MCE101A52R0P1K13E21TAW 52 660 25.98 560 22.05 5.4
175U3466 MCE101A72R0P1K13E21TAW 72 660 25.98 560 22.05 5.4
175U3477 MCE101A27R0P360RE21TAW 27 210 8.27 110 4.33 1.8
175U3481 MCE101A105RP790RE21TAW 105 460 18.11 360 14.17 3.9

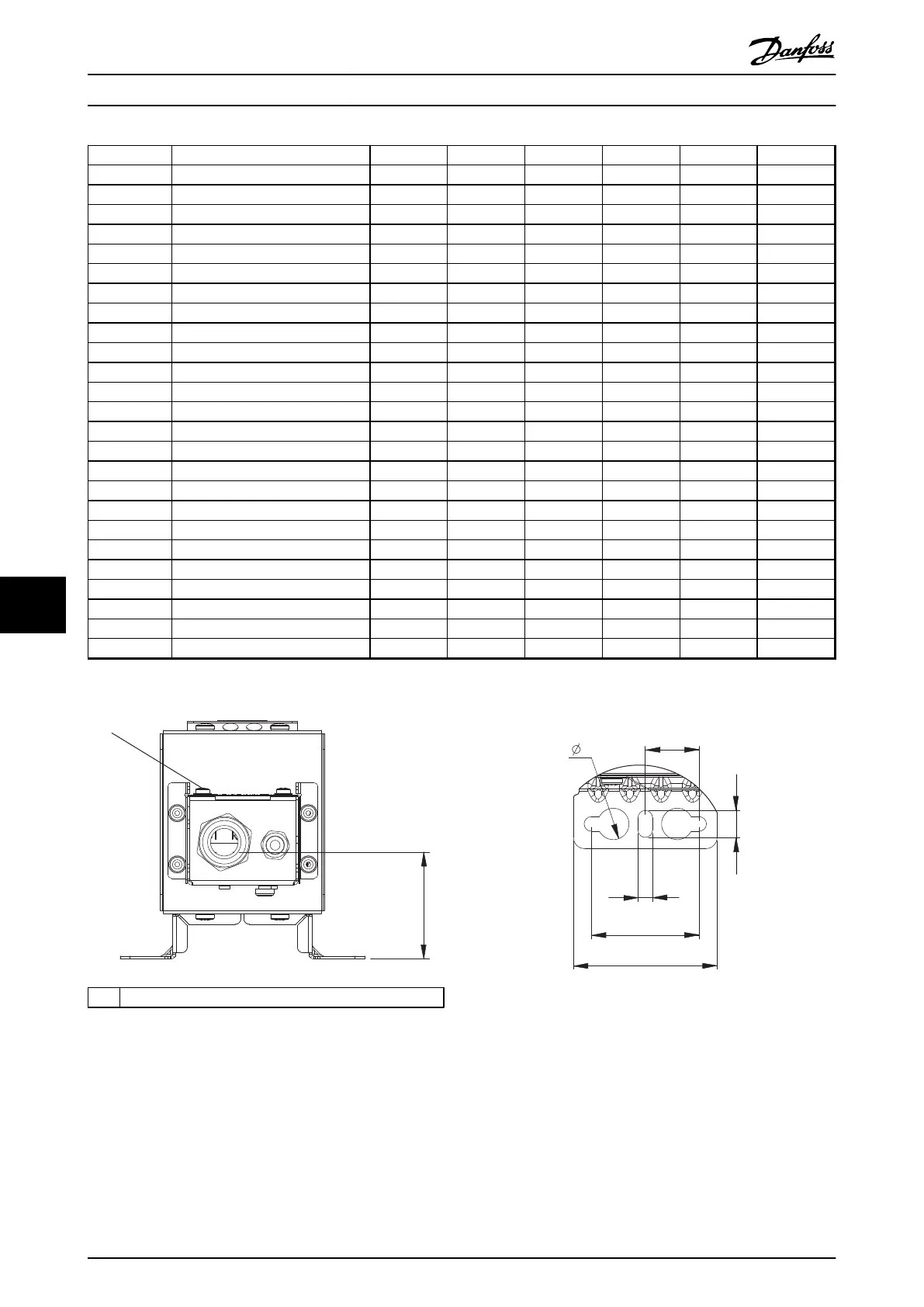

Table 9.9 Mechanical Dimensions
1
Torque 1–1.4 Nm (8.86-12.34 lb-in)
Illustration 9.19 IP21, End View, Connection Box
[0,47]
12
[2,52]
64
[0,55]
14
[0,94]
24
[0,26]
6,5
[1,89]
48
130BD229.10
Illustration 9.20 Mounting Hole
Specifications Design Guide
94 Danfoss A/S © Rev. 05/2014 All rights reserved. MG90O202
