Danfoss VLT CDS 803 Operating Guide

3.2.6 Control Terminals
3.2.6.1 Accessing the Control Terminals
Procedure
1. To activate the snap, place a screwdriver behind the terminal cover.
e30bb622.11

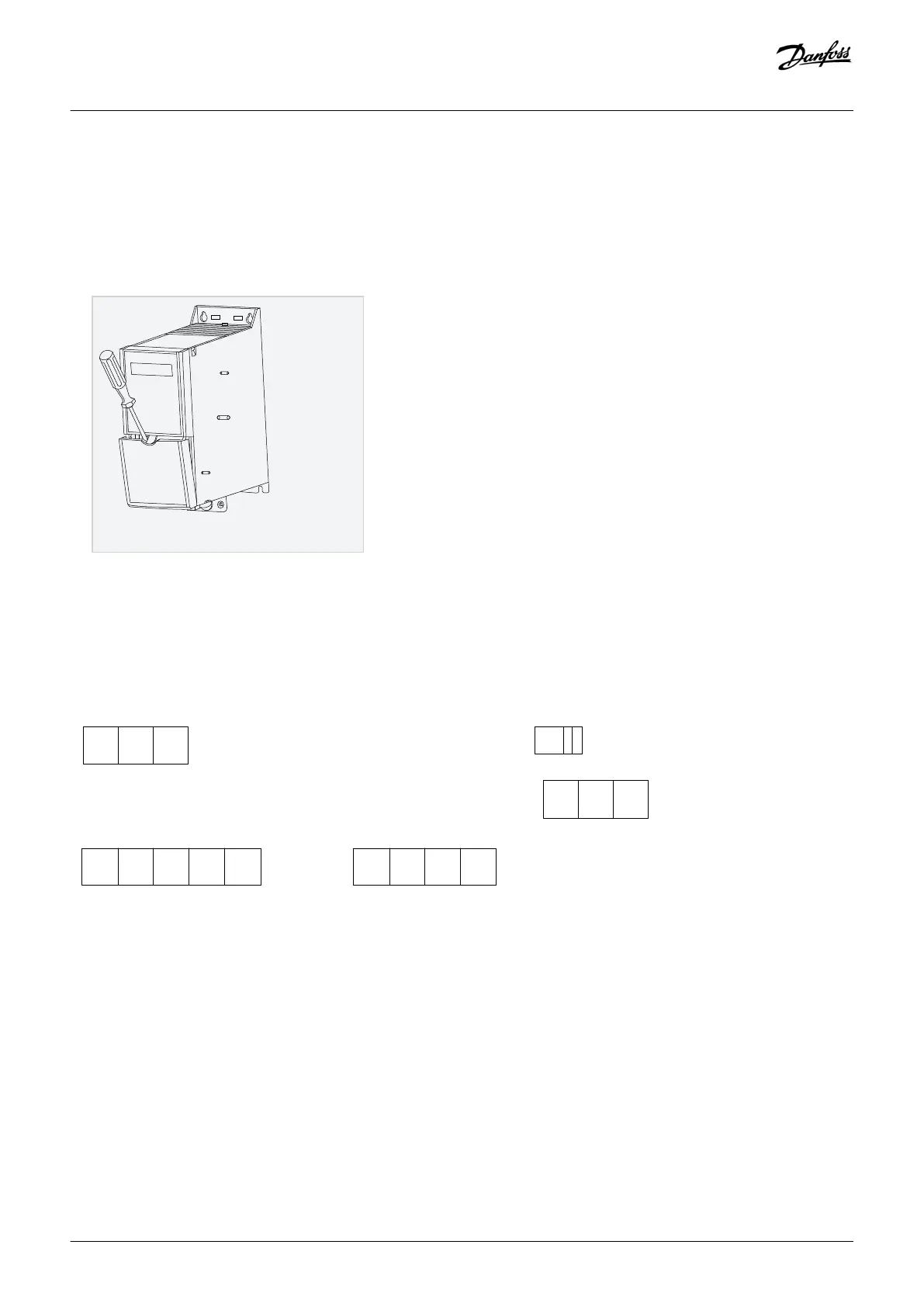

Illustration 10: Removing the Terminal Cover
2. Tilt the screwdriver outwards to open the cover.
3.2.6.2 Setting the Control Terminals to Run the Compressor
Context:
e30bb625.11
12 20 55
20
27
29 42 45
55
50 53 54
GND GND DIGI IN/OUT DIGI IN/OUT
61
68
69
N P COMM. GND
+24 V DIGI IN DIGI IN
10 V/20 mA IN
10 V/20 mA IN
0/4-20m A A OUT/DIG OUT
0/4-20 mA A OUT/DIG OUT
10 V OUT
BUS TER.
OFF
ON
Illustration 11: Overview of the Control Terminals
Installation
Operating Guide | VLT® Compressor Drive CDS 803
AQ321748767627en-000101 / 130R0570| 21
Danfoss A/S © 2019.12
