L
-EB1.4
-EB1.3
-EB1.2
-EB1.1
-XD4

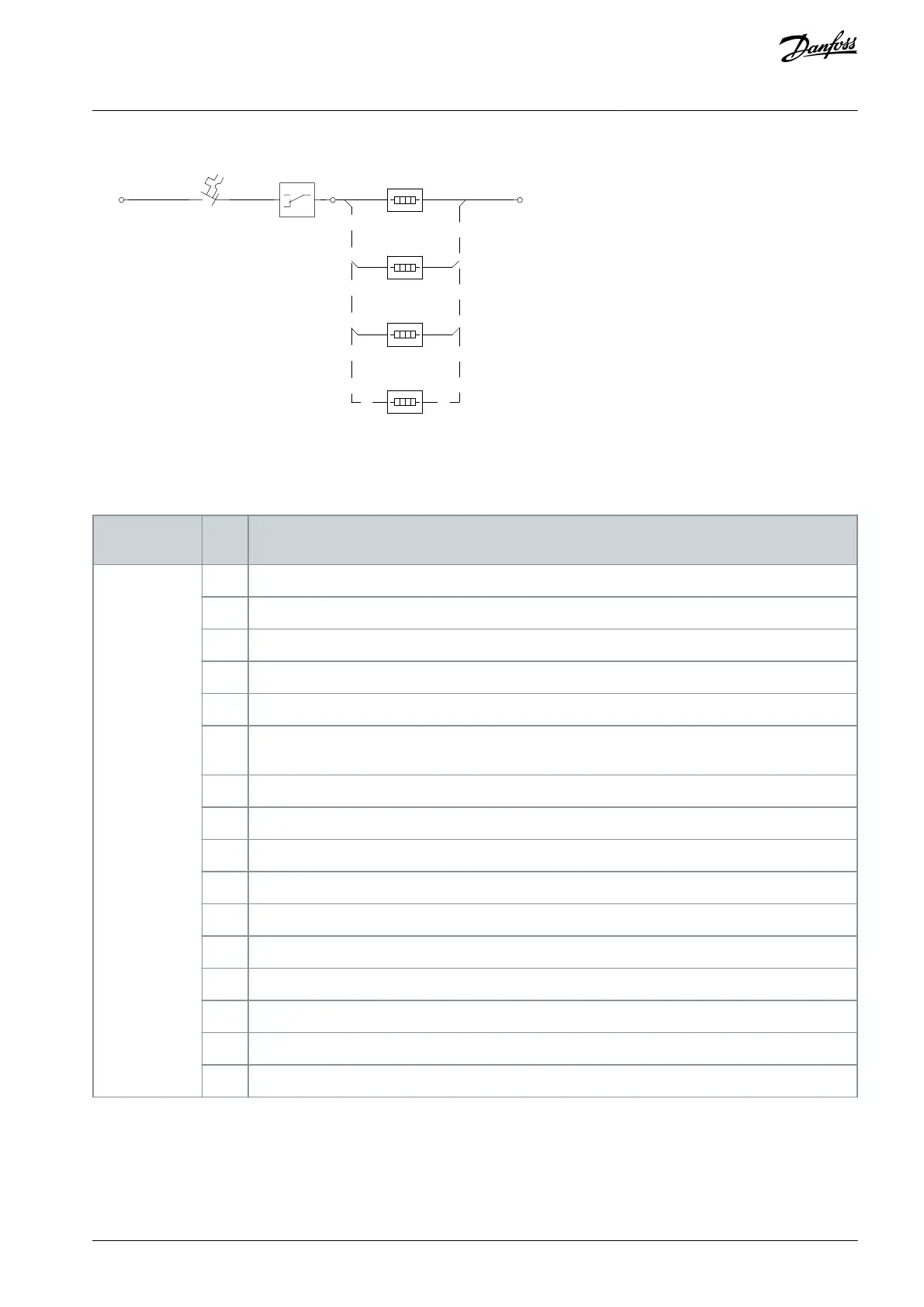

Illustration 45: Cabinet Heater Terminals
5.7.6.7 Motor Heater Control
Table 60: Auxiliary Function Type Codes
AC socket + cabinet light + motor heater control
AC socket + cabinet light + extended I/O terminals + motor heater control
AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control
AC socket + cabinet light + extended I/O terminals + motor heater control + insulation monitor
AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control + insula-
tion monitor
AC socket + cabinet light + cabinet heater + motor heater control
AC socket + cabinet light + cabinet heater + motor heater control + insulation monitor
AC socket + cabinet light + motor heater control + insulation monitor
Extended I/O terminals + motor heater control
Extended I/O terminals + cabinet heater + motor heater control
Extended I/O terminals + cabinet heater + motor heater control + insulation monitor
Extended I/O terminals + motor heater control + insulation monitor
Cabinet heater + motor heater control
Cabinet heater + motor heater control + insulation monitor
Motor heater control + insulation monitor
The motor heater option provides the ability to control the supply for the motor anti-condensation heater. The 24 V DC external
supply is connected to terminal -XD1.1 in the lower part of the cabinet. When the drive is not in run state, the control relay -QAM
changes the external supply to the -XDM output terminals. When the drive is in run state, the control relay disconnects the external
supply to the motor heater. The function is disabled when MCB –FCN is open.
AQ357954340588en-000201 / 130R0881 | 79Danfoss A/S © 2020.09
Electrical Installation
VLT® Refrigeration Drive FC 103
Operating Guide
