Terminal locations
(D1 and D2 enclosures)
Take the following terminal positions into consideration when you design for cable access.

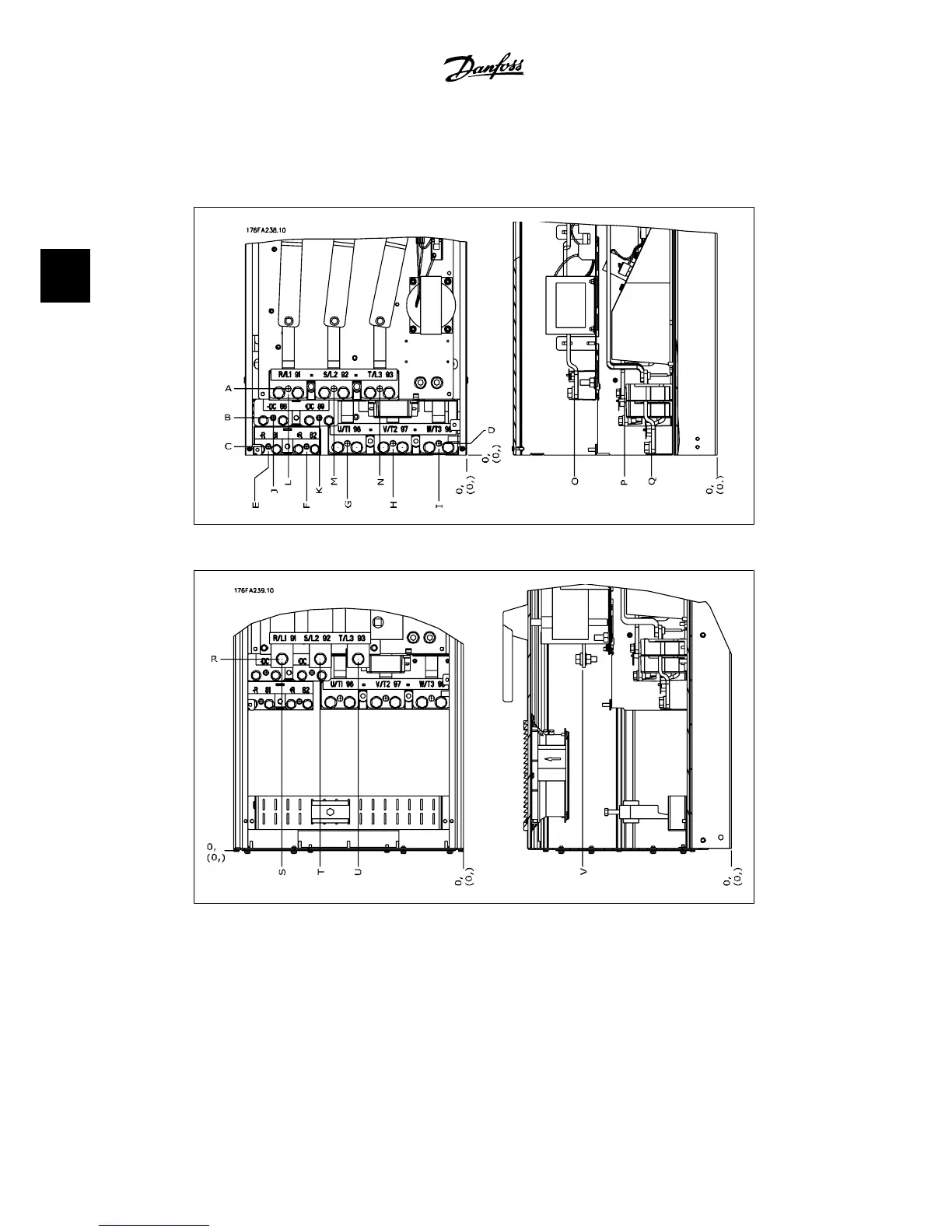

3.8: Position of power connections
3.9: Position of power connections - Disconnect
Be aware that the power cables are heavy and hard to bend. Give thought to the optimum position
of the adjustable frequency drive for ensuring easy installation of the cables.
3. How to Install
VLT
®
Automation Drive FC 300
Instruction Manual High Power
24
MG.33.U1.22 - VLT
®
is a registered Danfoss trademark.
3
