The E1 enclosure is always delivered with a
pedestal as standard. Install the pedestal on
the floor. Fixing holes are to be drilled accord-
ing to this figure:

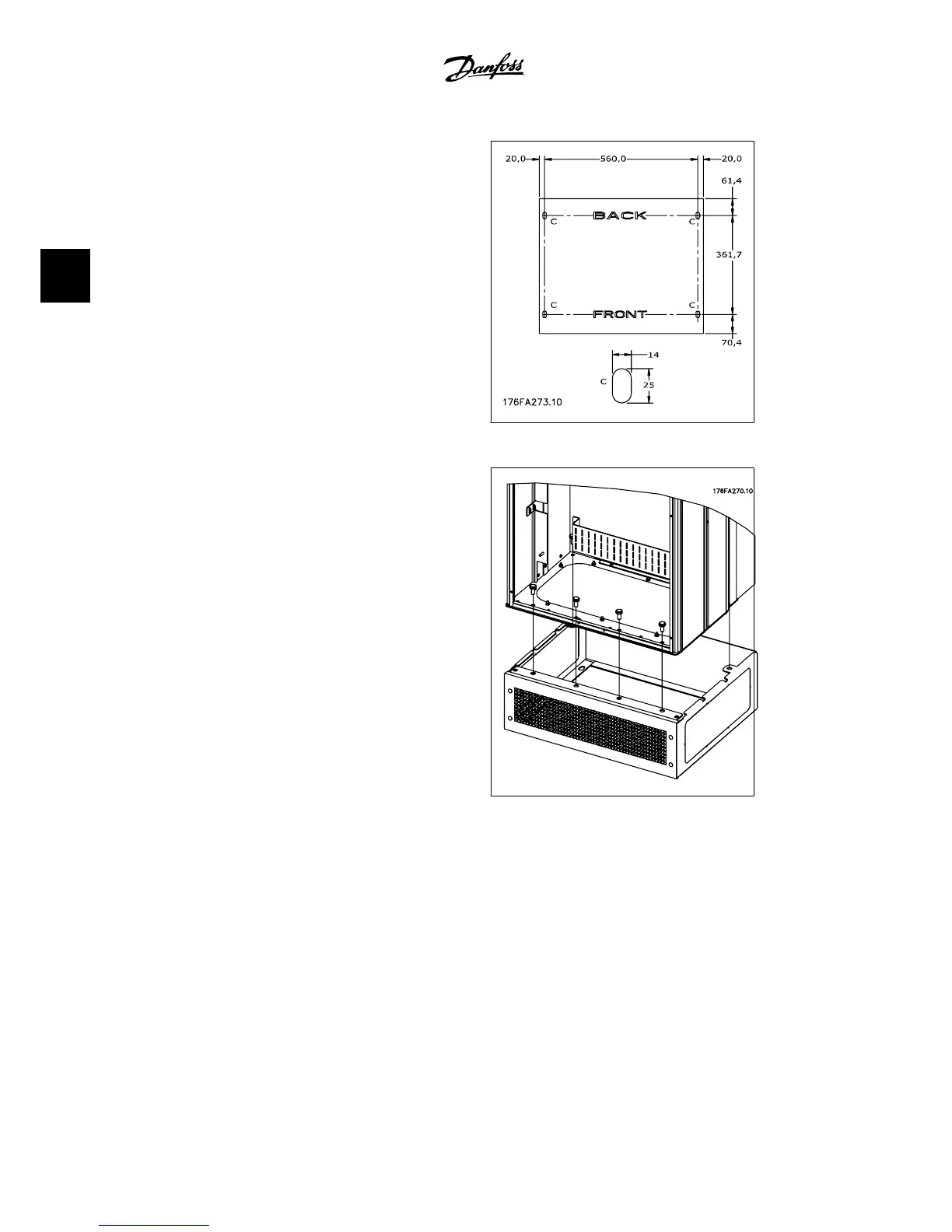

3.23: Drill master for fixing holes in floor.
Mount the drive on the pedestal and using the
enclosed bolts, attach it to the pedestal, as
shown in the illustration.
3.24: Mounting the drive to the pedestal
