Terminal locations - options cabinet (F3 and F4)
1 2 3
4
0.0[0.00]
76.4[3.01]
128.4[5.05] 119.0[4.69] 171.0[6.73]
294.6[11.60] 344.0[13.54]
3639[14.33]
438.9[17.28]
75.3[2.96]
150.3[5.92] 154.0[6.06]
219.6[18.65]
0.0[0.00]
244.4[9.62]
244.4[1.75]
939.0[36.97]
1031.4[40.61]
0.0[0.00]
134.6[5.30]
130BA851.12
0.0[1.75]
1 Ground bar

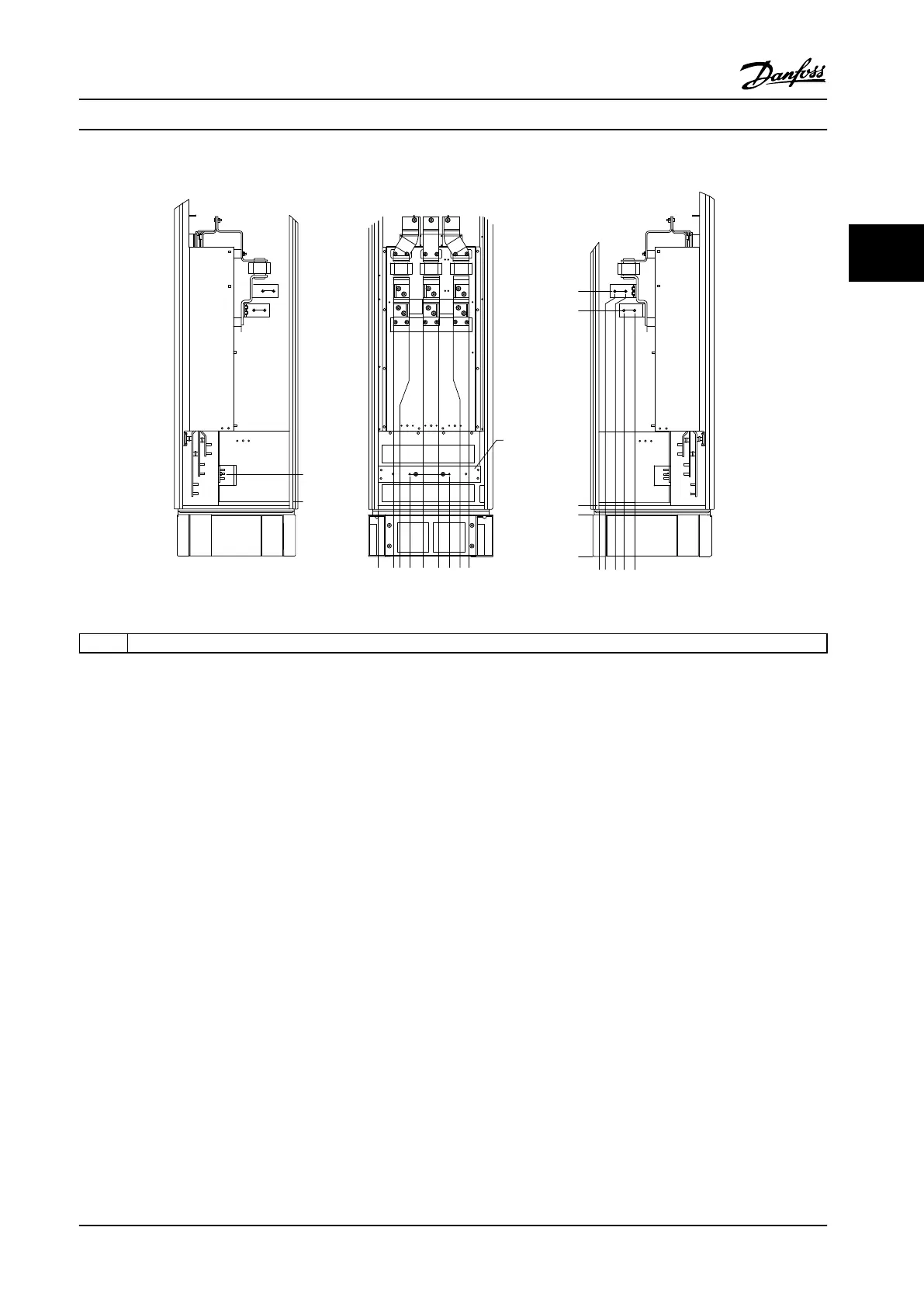

Figure 3.29 Terminal Locations - Options Cabinet (Left Side, Front and Right Side View). The Connector Plate is 42 mm (1.65 in)
below .0 level.
