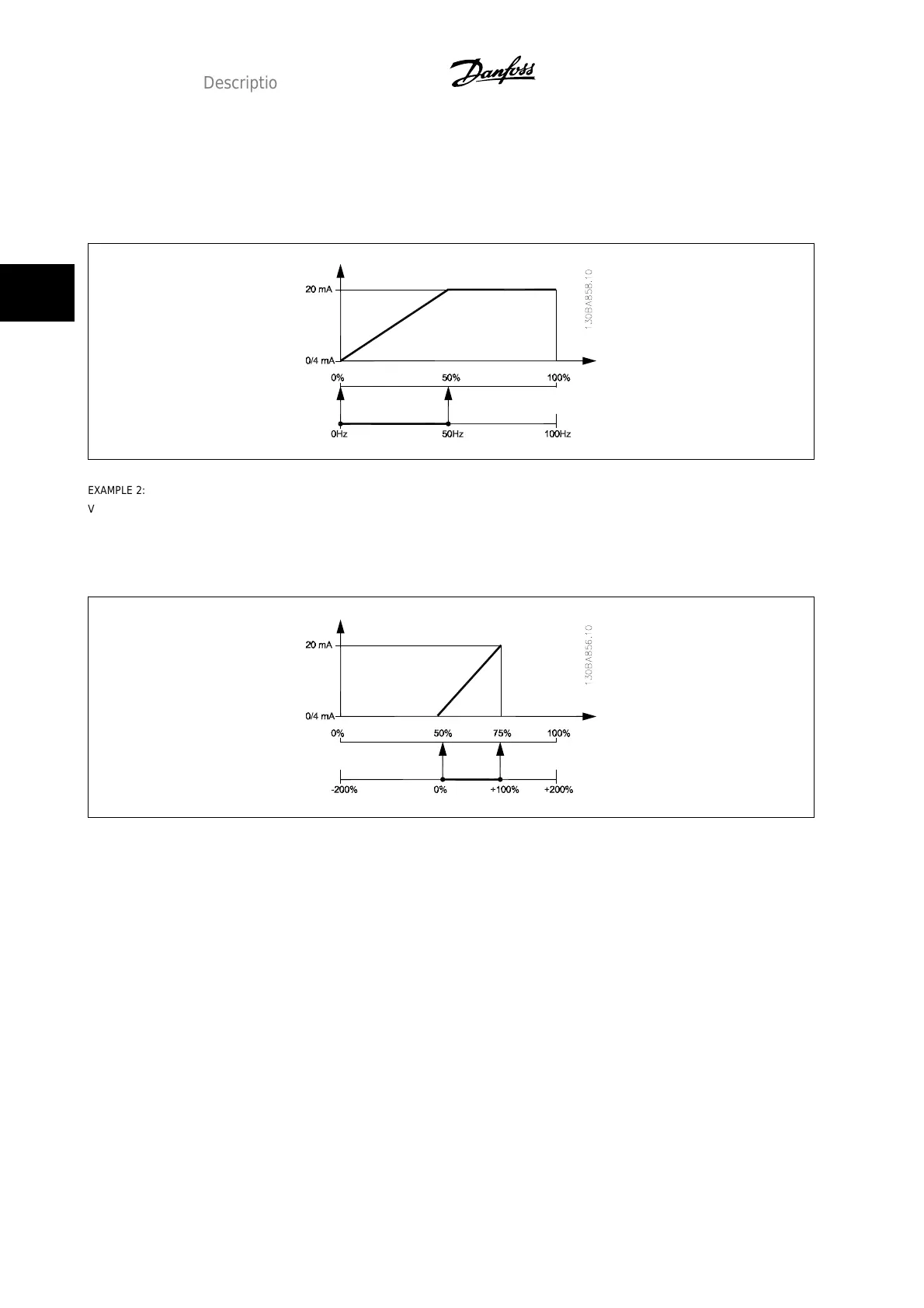

EXAMPLE 1:
Variable value= OUTPUT FREQUENCY, range = 0–100 Hz
Range needed for output = 0–50 Hz
Output signal 0 or 4 mA is needed at 0 Hz (0% of range) - set par.6-51
Terminal 42 Output Min Scale to 0%
Output signal 20 mA is needed at 50 Hz (50% of range) - set par.6-52
Terminal 42 Output Max Scale to 50%

EXAMPLE 2:
Variable= FEEDBACK, range= -200% to +200%
Range needed for output= 0–100%
Output signal 0 or 4 mA is needed at 0% (50% of range) - set par.6-51
Terminal 42 Output Min Scale to 50%
Output signal 20 mA is needed at 100% (75% of range) - set par.6-52
Terminal 42 Output Max Scale to 75%

3 Parameter Description VLT
®
HVAC Drive Programming Guide
3-88 MG.11.C6.22 - VLT
®
is a registered Danfoss trademark
3

Danfoss VLT HVAC Series Specifications

General

Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short circuit
Communication Interfaces	Profibus, Ethernet
Cooling Method	Forced convection
Ambient Temperature	-10°C to +40°C
Enclosure Rating	IP20, IP21, IP55
Output Voltage	0 - 100% of supply voltage
