2.1.8 Parameter Selection
In main menu mode, the parameters are divided into groups. You select
a parameter group by means of the navigation keys.
The following parameter groups are accessible:
Group no. Parameter group:
0 Operation/Display
1Load/Motor
2 Brakes
3 References/Ramps
4 Limits/Warnings
5Digital In/Out
6 Analog In/Out
8 Comm. and Options
9 Profibus
10 CAN Ser. Com. Bus
11 LonWorks
13 Smart Logic
14 Special Functions
15 Adjustable Frequency Drive Information
16 Data Readouts
18 Data Readouts 2
20 Drive Closed-loop
21 Ext. Closed-loop
22 Application Functions
23 Time-based Functions
25 Cascade Controller
26 Analog I/O Option MCB 109
After selecting a parameter group, choose a parameter by means of the
navigation keys.

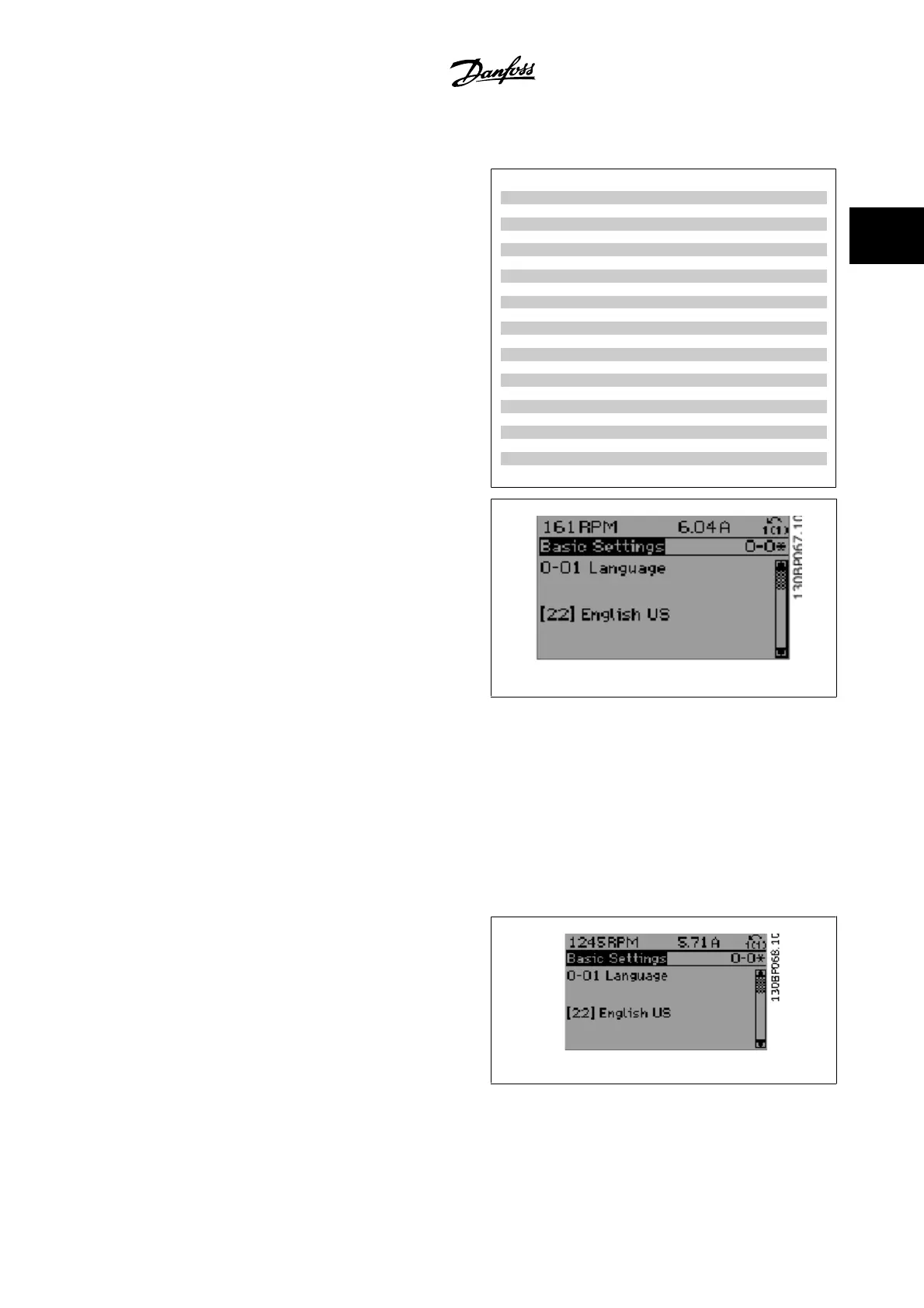

The middle section on the display shows the parameter number and name
as well as the selected parameter value.
2.1.9 Changing Data
The procedure for changing data is the same whether you select a parameter in the quick menu or the main menu mode. Press [OK] to change the
selected parameter.
The procedure for changing data depends on whether the selected parameter represents a numerical data value or a text value.
2.1.10 Changing a Text Value
If the selected parameter is a text value, change the text value by means
of the [
▲
] [
▼
] navigation keys.
The up key increases the value, and the down key decreases the value.
Place the cursor on the value you want to save and press [OK].
VLT
®
HVAC Drive Programming Guide 2 How to Program
MG.11.C6.22 - VLT
®
is a registered Danfoss trademark 2-17
2
