ENGLISH
7

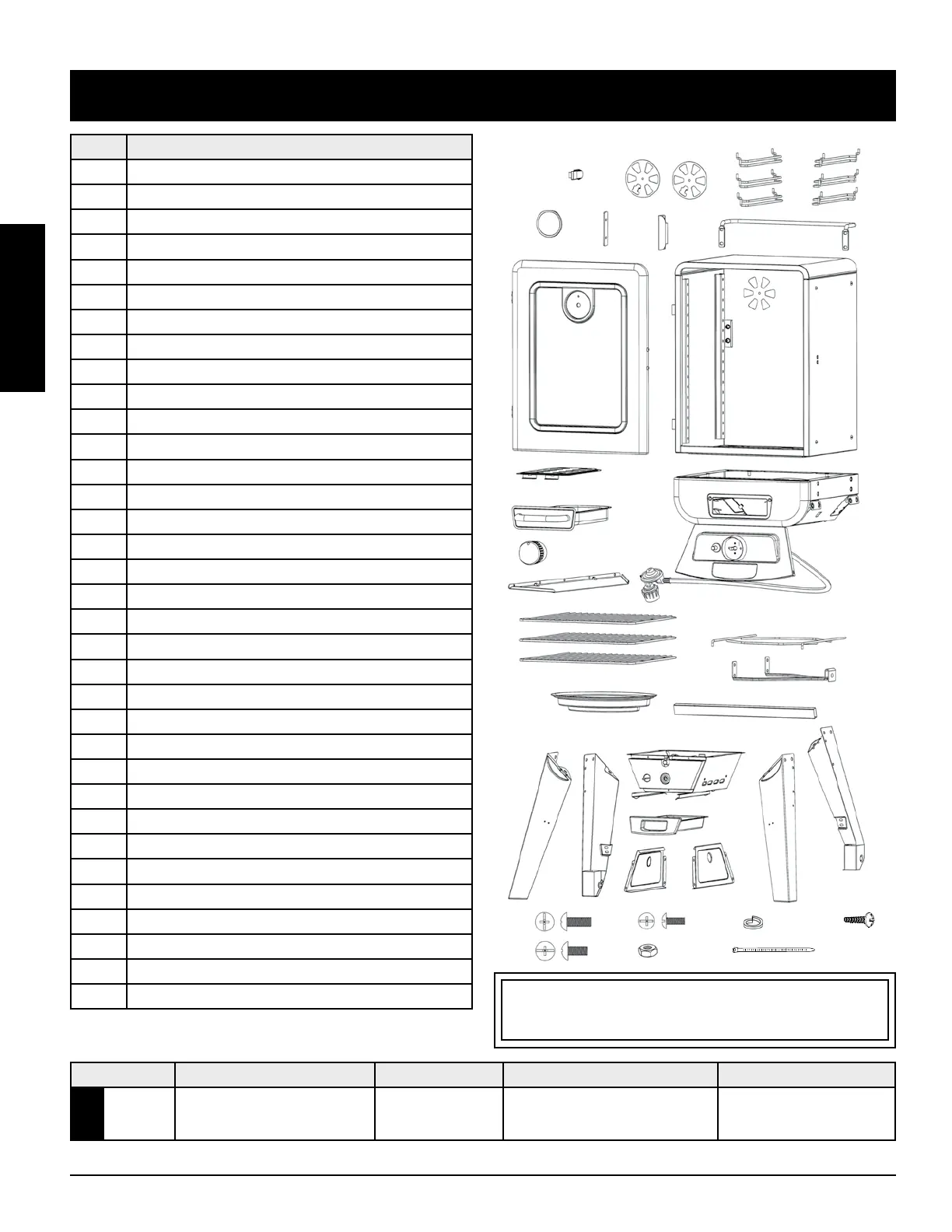

Part# Description
1 Damper (x2)
2 Upper Smoker Cabinet Assembly (x1)
3 Back Handle (x1)
4 Cooking Grid (x3)
5 Cooking Grid Support (x6)
6 Door Latch Assembly (x1)
7 Door Handle (x1)
8 Door Silcon Gasket (x1)
9 Heat Indicator (x1)
10 Door Assembly (x1)
11 Wood Chip Box Lid (x1)
12 Wood Chip Box Assembly (x1)
13 Control Knob (x1)
14 Lower Smoker Cabinet Assembly (x1)
15 Water Pan (x1)
16 Water Pan Support (x1)
17 Gas Cylinder Retainer Bracket (x1)
18 Right Rear Leg Assembly (x1)
19 Support Panel (x2)
20 Left Rear Leg Assembly (x1)
21 Left Front Leg (x1)
22 Right Front Leg (x1)
23 Back Support Tube (x1)
24 Burner Chamber Assembly (x1)
25 Grease Tray Assembly (x1)
26 Door Grease Shield (x1)
A ¼–20x⅝" Screw (x4)
B ¼–20x½" Screw (x16)
C #10–24x½" Screw (x32)
D #10–24 Lock Nut (x2)
E M5 Locking Washer (x2)
F Zip-tie (x1)
G #8-32 Self-tapping Screw (x5)
H Spare Hardware
NOTE: Due to ongoing product development, parts are subject to change without
notice. Contact Customer Care if parts are missing when assembling the unit.
6
1
5
3
210
11
14
17
16
4
15
23
22
18
19
25
2420
21
12
13
26
9 8 7
PB- BTU REQUIREMENTS
TOTAL: 12,500 BTU
MODEL UNIT ASSEMBLED (WxHxD) UNIT WEIGHT COOKING AREA TEMPERATURE RANGE
21
580mm x 1,040mm x 545mm
/ 22.8 in. x 40.9 in. x 21.4 in.
22 kg
/ 48.5 lb
Cubic Cooking: 0.06 m
3
/ 2.1 ft
3
TOTAL
- 3,480 cm / 540 sq. in.
38-160°C
/ 100-320°F
