24
1
3
2
7
8
9
10
12
4
5
6
11

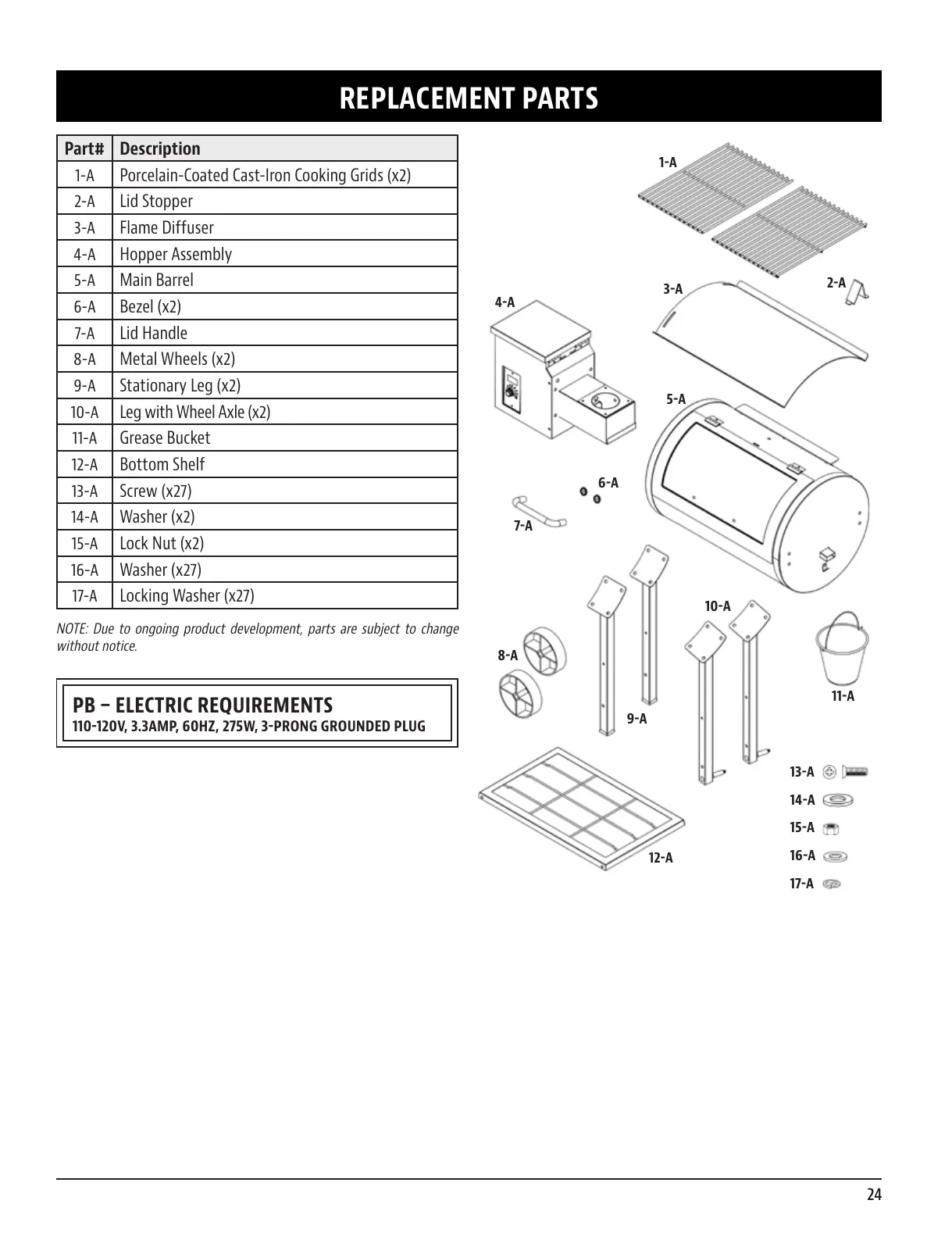

Part# Description
1- Porcelain-Coated Cast-Iron Cooking Grids (x2)
2- Lid Stopper
3- Flame Diffuser
4- Hopper Assembly
5- Main Barrel
6- Bezel (x2)
7- Lid Handle
8- Metal Wheels (x2)
9- Stationary Leg (x2)
10- Leg with Wheel Axle (x2)
11- Grease Bucket
12- Bottom Shelf
13- Screw (x27)
14- Washer (x2)
15- Lock Nut (x2)
16- Washer (x27)
17- Locking Washer (x27)
NOTE: Due to ongoing product development, parts are subject to change
without notice.
110120, 33, 60, 275, 3
17
16
15
14
13
