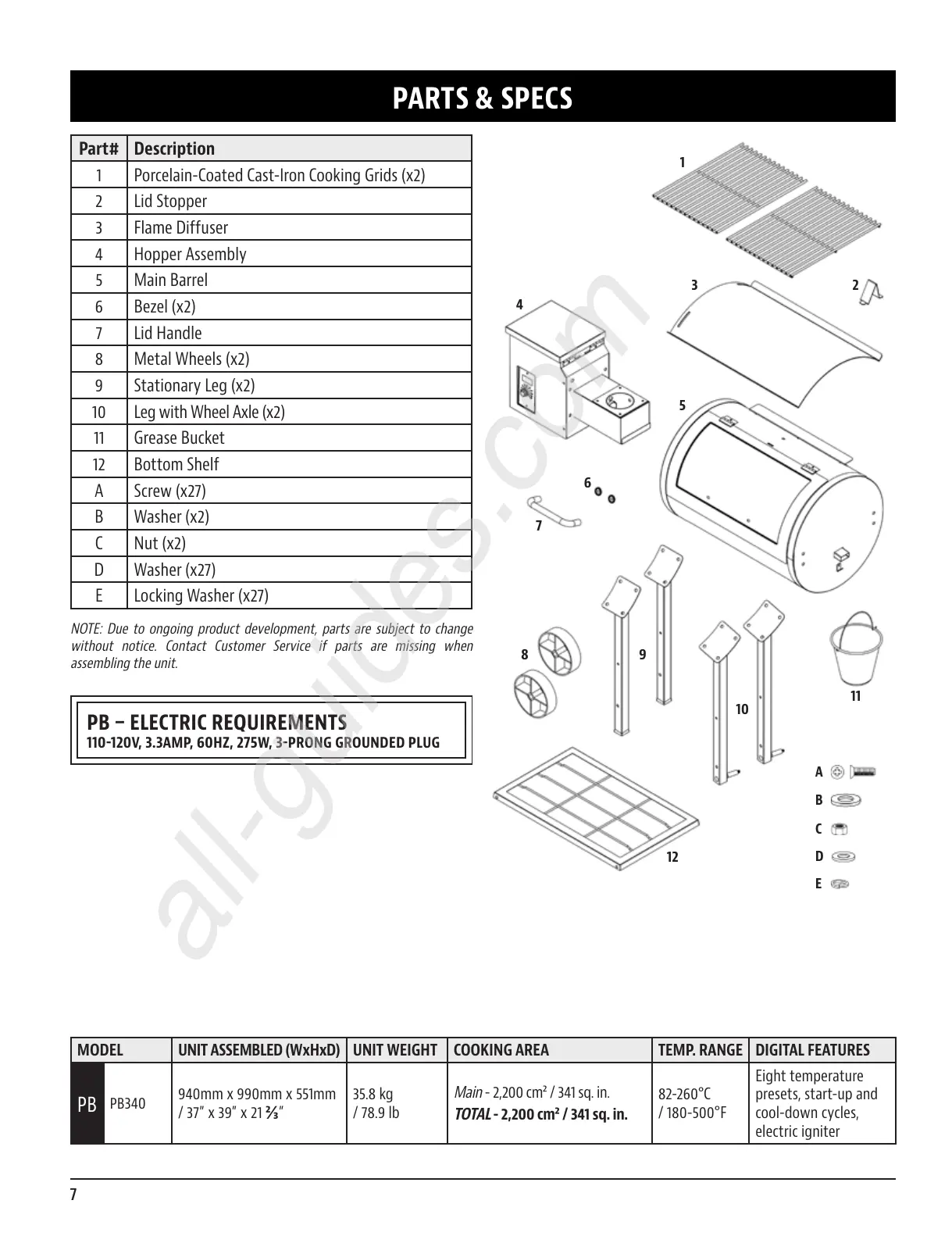

Part# Description
1 Porcelain-Coated Cast-Iron Cooking Grids (x2)
2 Lid Stopper
3 Flame Diffuser
4 Hopper Assembly
5 Main Barrel
6 Bezel (x2)
7 Lid Handle
8 Metal Wheels (x2)
9 Stationary Leg (x2)
10 Leg with Wheel Axle (x2)
11 Grease Bucket
12 Bottom Shelf
A Screw (x27)
B Washer (x2)
C Nut (x2)
D Washer (x27)
E Locking Washer (x27)
NOTE: Due to ongoing product development, parts are subject to change
without notice. Contact Customer Service if parts are missing when
assembling the unit.
110120, 33, 60, 275, 3
MODEL UNIT ASSEMBLED (WxHxD) UNIT WEIGHT COOKING AREA TEMP. RANGE DIGITAL FEATURES
340
940mm x 990mm x 551mm
/ 37” x 39” x 21 ⅔”
35.8 kg
/ 78.9 lb
Main
- 2,200 cm / 341 sq. in.
TOTAL
- 2,200 cm / 341 sq. in.
82-260°C
/ 180-500°F
Eight temperature
presets, start-up and
cool-down cycles,
electric igniter
