Overall description, continued

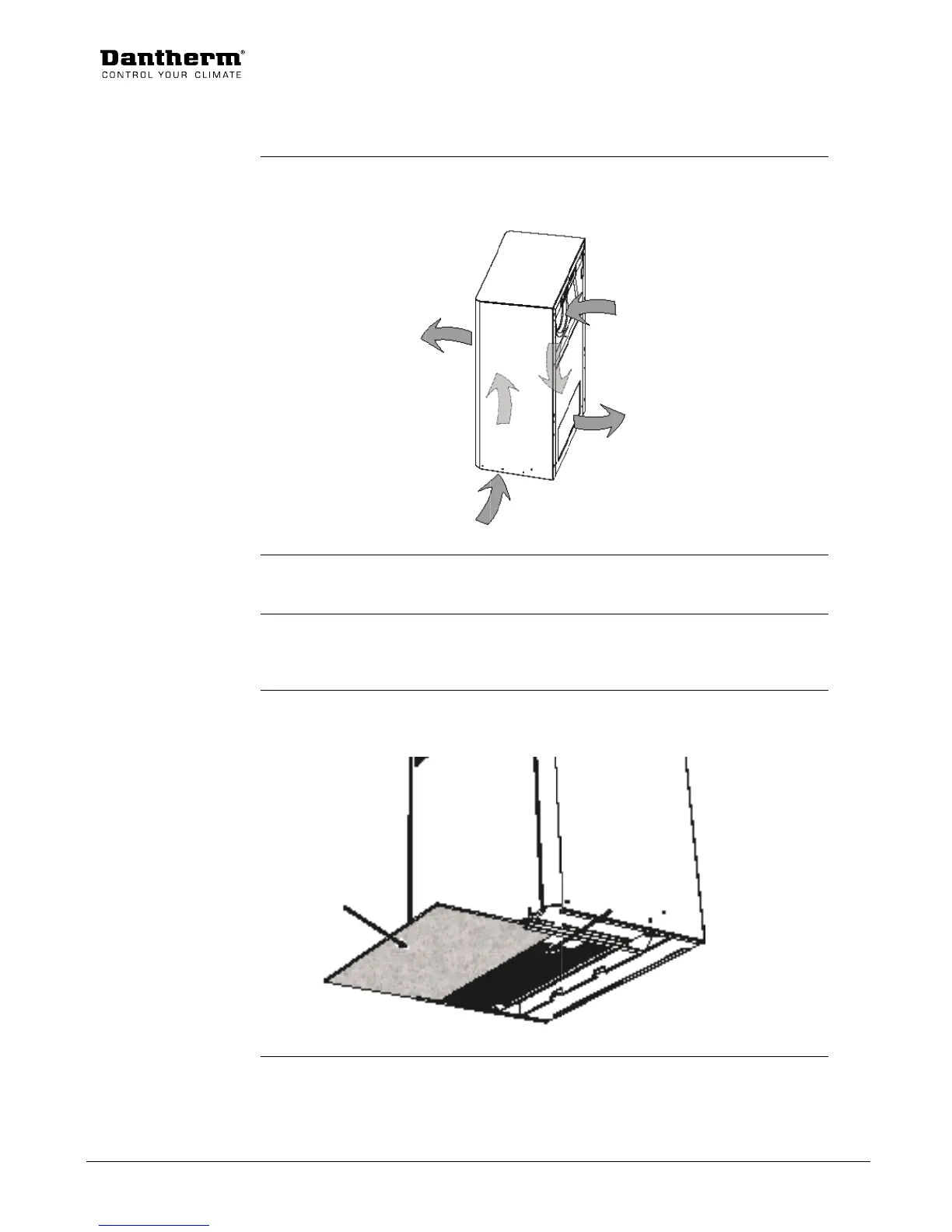

The illustration and table below show the airow of the Air conditioner. The two air ows
(internal/external) operate separately. External air is only used to cool down the condenser
which dissipates the heat absorbed by the indoor evaporator. The air ows are not mixed.
InternalExternal
Fig. 4
Warm, internal air is drawn into the unit by the internal evaporator fan, through the
evaporator, and then released into the enclosure, through the evaporator opening.
Cold, external air is drawn into the unit by the condenser fan, and routed through the
condenser, where it is cooling down the condenser. The air is returned to the external
environment after it passes through the condenser.
The external air inlet in the bottom of the unit, has an optional pre-lter. This will reduce the
instrusion of leaves or bugs in the air inlet.
The slide track in the bottom of the unit allows the user to slide in the pre-lter.
Accessory Embedded
Fig. 5
Functionallity
Internal air ow
External air ow
Filters
