Installation: Dismantling
Dismantling
Follow the steps below in order to disconnect the ACT 7.
Failure to follow the procedure may result in excess water being retained in the system which
may spill when the ACT 7 is moved.

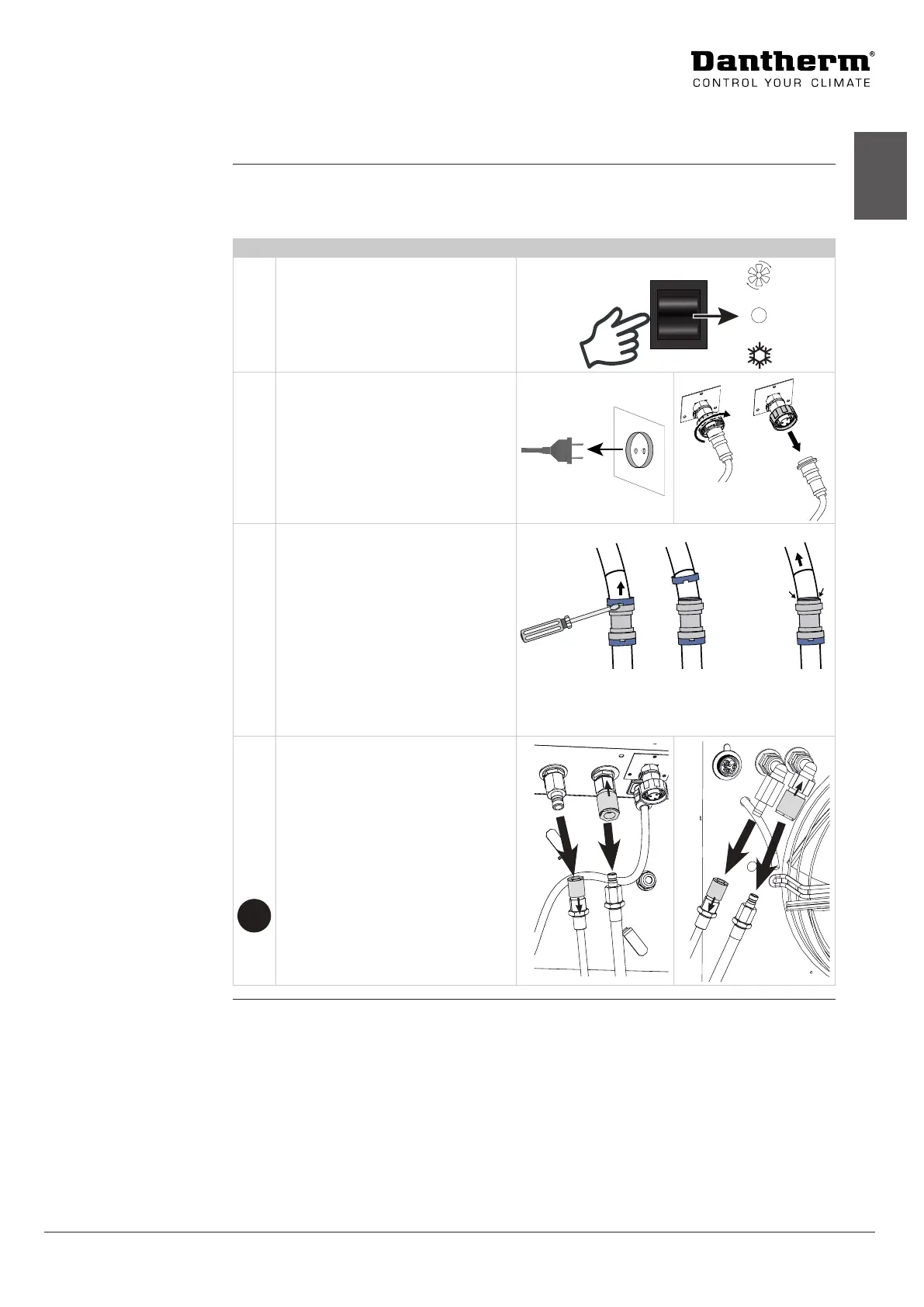

Step Action Illustration
1 Switch to standby mode.
Keep the unit in this mode for at
least 30 minutes in order to let the
condensate pump drain the system.
2 When you have waited for
30 minutes, you can disconnect:
a. mains power to room unit and
b. power cord between heat
exchanger and room unit.
a b
3 Disconnect drain hose from the
heat exchanger:
a. Use a screwdriver to remove
the blue collet from the hose
connector.
b. Push darker grey ring ‘in’ and
pull at the same time the hose
to remove.
Repeat step b to remove the hose
from the room unit.
a b
4 Disconnect pipes from
a. room unit and
b. heat exchanger
Pull the coupling of the female pipe
adapter back in order to disconnect
the pipes.
Be prepared with an old cloth or
alike to wipe the water/glycol mix-
ture up, since it will spill a bit, when
the pipes are disconnected.
a
b
Disconnecting/
