3
Product description: Overall description
Product description
Overall description
The ACT 7 is a portable air conditioner intended for small-scale temporary cooling, and can
be used in many dierent places such as rental companies, event organization, workshops
and oces.

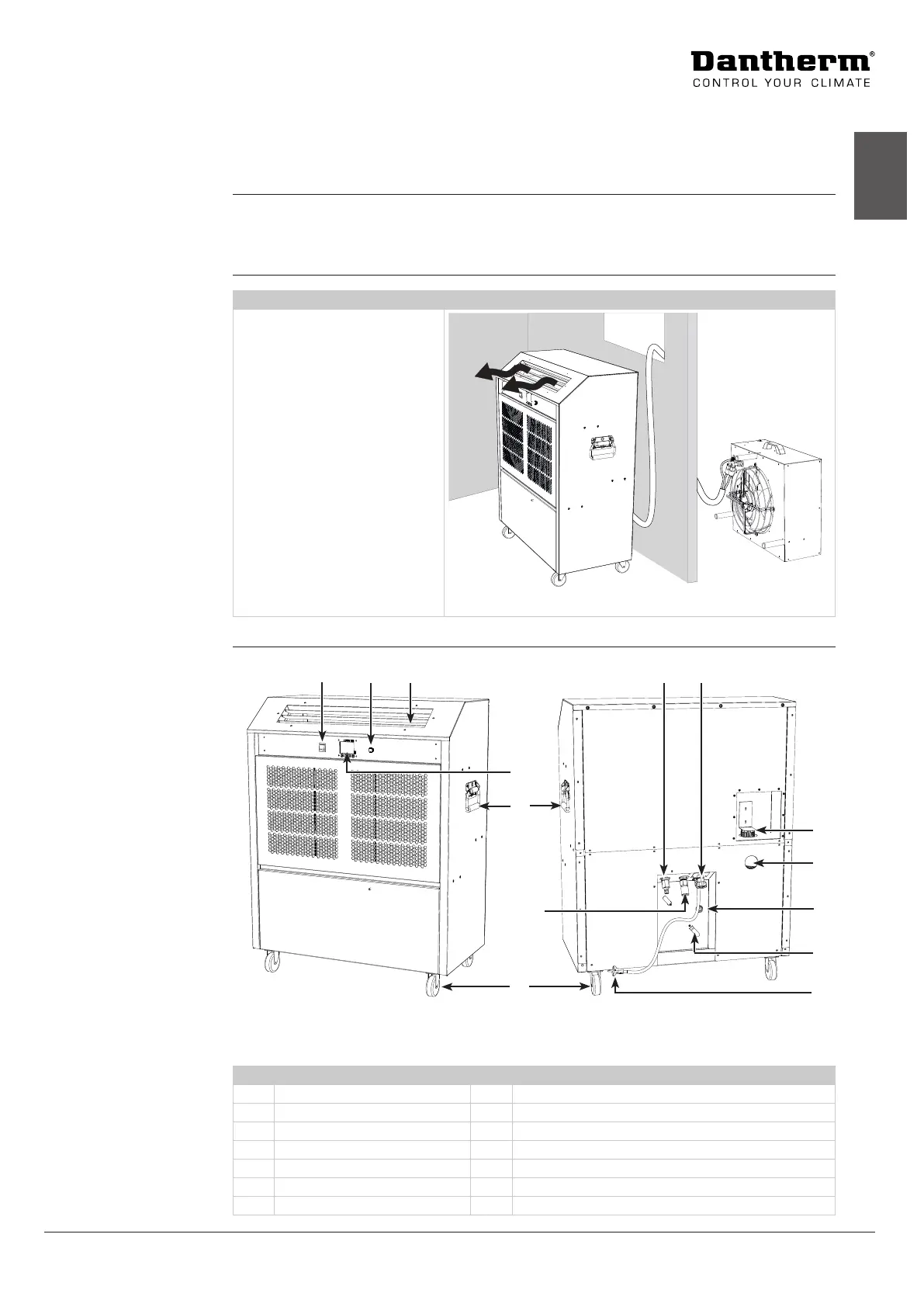

Description Illustration
The ACT 7 comprises
a room unit and
external heat exchanger.
The interconnecting line (max
30 m) which connects the two
parts together includes two
water pipes, condensed waste
water pipe and an electrical
supply power cord. Both ends
of the water pipes are fitted
with quick connect’ couplings
that open on connection but
reseal to become water tight
on disconnection.
14
4
3
21
5
6
8
7
9
10
11
12
13
Front Rear
Fig. 2
Pos. Description Pos. Description
1 Mode switch 8 Water pipe coupling (IN)
2 Fan speed control dial 9 Electrical supply connection to heat exchanger
3 Grille 10 Tank ller
4 Display 11 Inspection window
5 Handle for moving the unit 12 Condensed waste water outlet
6 Wheels 13 Cable keeper
7 Water pipe coupling (OUT) 14 Supply cord (2 m)
Designated use
ACT 7 system
connection
Fig. 1
Illustration
(Room unit)
en
