Dantherm CDT 30 MK III - Wiring Diagram

29
053322 • Version 1.0 • 5.12.2019
en

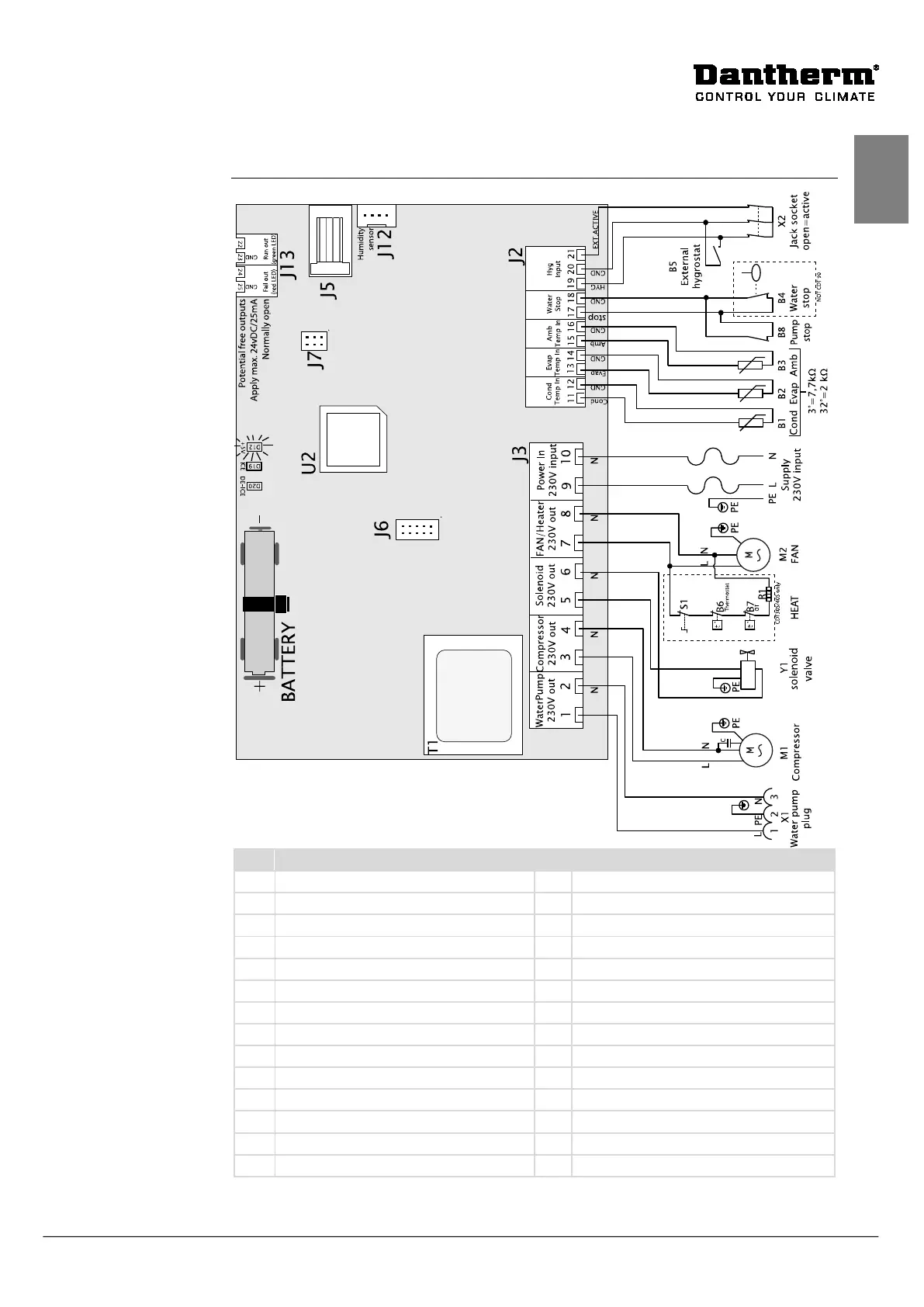

Wiring diagram
Diagram
Pos.
Description
Pos.
Description
B1
Condenser surface temperature sensor
J6
Not in use
B2
Evaporator surface temperature sensor
J7
Factory settings
B3
Ambient temperature sensor
J12
Internal hygrostat
B4
"Full water tank" sensor
J13
Extra output
B5
External hygrostat (accessory)
M1
Cooler compressor
B6
Thermostat (30S/40S only)
M2
Fan motor
B7
Over Temperature (30S/40Sonly)
R1
Heating element (30S/40S only)
B8
External pump alarm (accessory)
S1
Heating element on/off (30S/40S only)
D12
LED +5V DC supply control
T1
Transformer
D19
LED Ice on evaporator surface
U2
CPU
D20
LED Defrosting active
X1
Water pump plug
J2
Low voltage connections
X2
Jack plug for external hygrostat
J3
230V connections
Y1
Solenoid valve (pressure equalisation)
J5
Not in use
