Product and function descriptions, cont.
Control panel

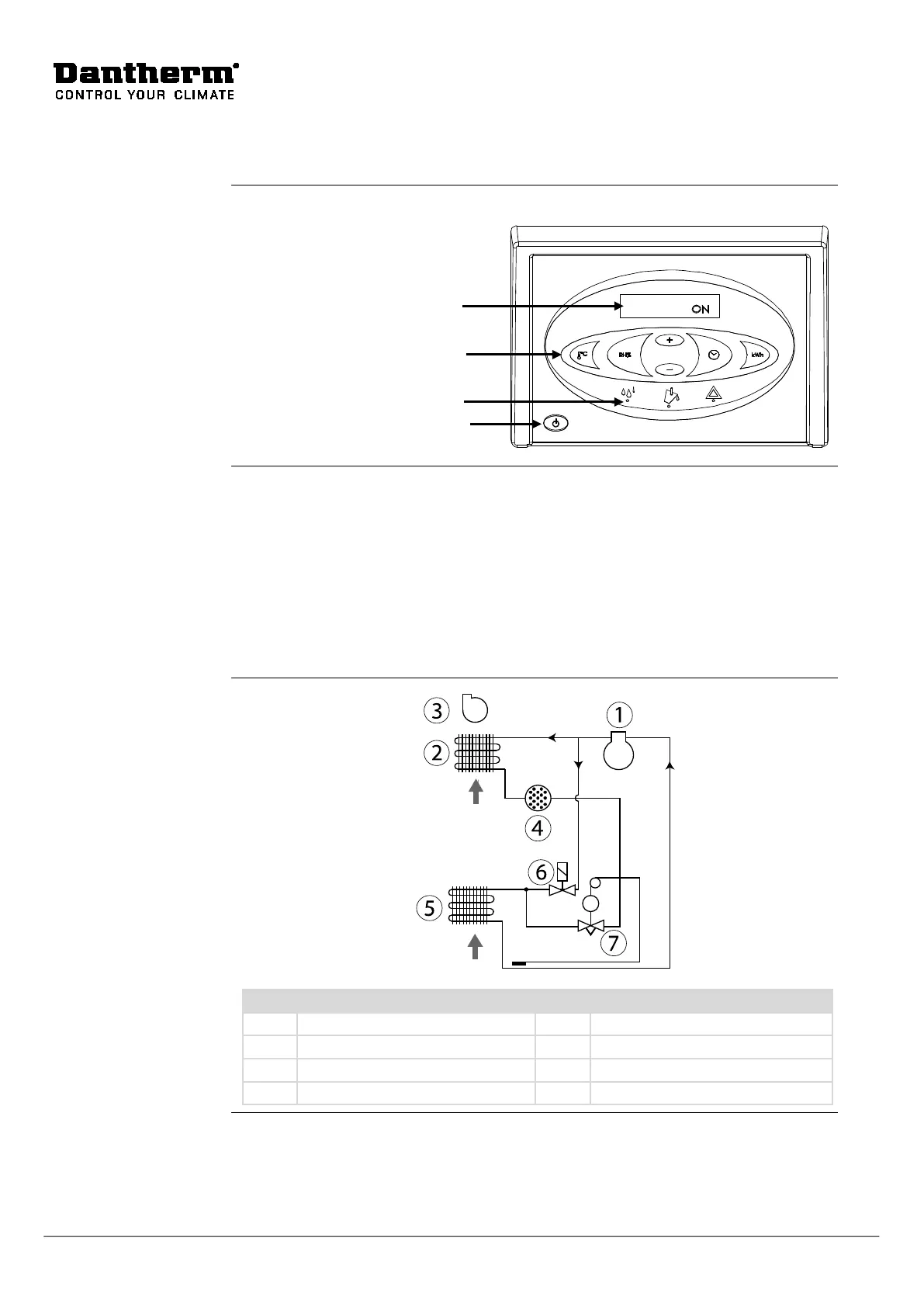

Illustration of control panel:
Functions
Main functions:
• Manual or auto operation (built-in adjustable hygrostat).
• External hygrostat socket.
• Display of temperature, relative air humidity, hours and kWh consumption.
• Hour counter and kWh consumed without 230V connection.
• Adjustable service interval counter.
Operation described in the user guide in this manual.
Cooling circuit dia-
gram
Pos.
Description
Pos.
Description
1
Compressor
5
Evaporator
2
Condenser
6
Solenoid valve
3
Fan
7
Thermostatic expansion valve
4
Dry filter
T
C
Main switch
Function keys
Status indicators
Display
