13
If you purchased Danuser Hose Kits PN 196025 or PN 196027, install by using a
7/8" wrench and a 1" wrench to tighten the hose connections onto the 45° adapters
on the drive unit.
All hoses and fittings used to connect the earth auger should be thoroughly cleaned
before use. Care should be taken to see that no thread sealer or metal chips are
forced to the inside of the joints when connections are being tightened.
Since the hydraulic motor is reversible, hose connections to motor fittings are
interchangeable.
Using a 1-7/16" wrench and a 1" wrench, tighten the hydraulic quick couplers onto
the hoses.
Danuser Hose Kit PN 196025 does not include hydraulic quick couplers. You
must obtain the proper hydraulic quick couplers for your particular vehicle.
Install the hose holder spring kit in the desired mounting location.
The quick attach
mount uses a hose holder spring kit to allow adjustment of hose routing, reducing
pinching, kinking, and stretching. The hose holder spring kit may be mounted left
or right of center on the quick attach plate. For center cradle installations, it is
recommended to install the hose holder spring kit in the mounting position nearest
the vehicle's hydraulic valve block.
For offset cradle installations, the desired spring
mounting location will vary based on the location of the vehicle's hydraulic valve
block. The vehicle loader arm and operator step configuration also may affect the
desired spring mounting location.
STEP 7:
STEP 8:
STEP 9:
Assembly &
Installation
(continued)

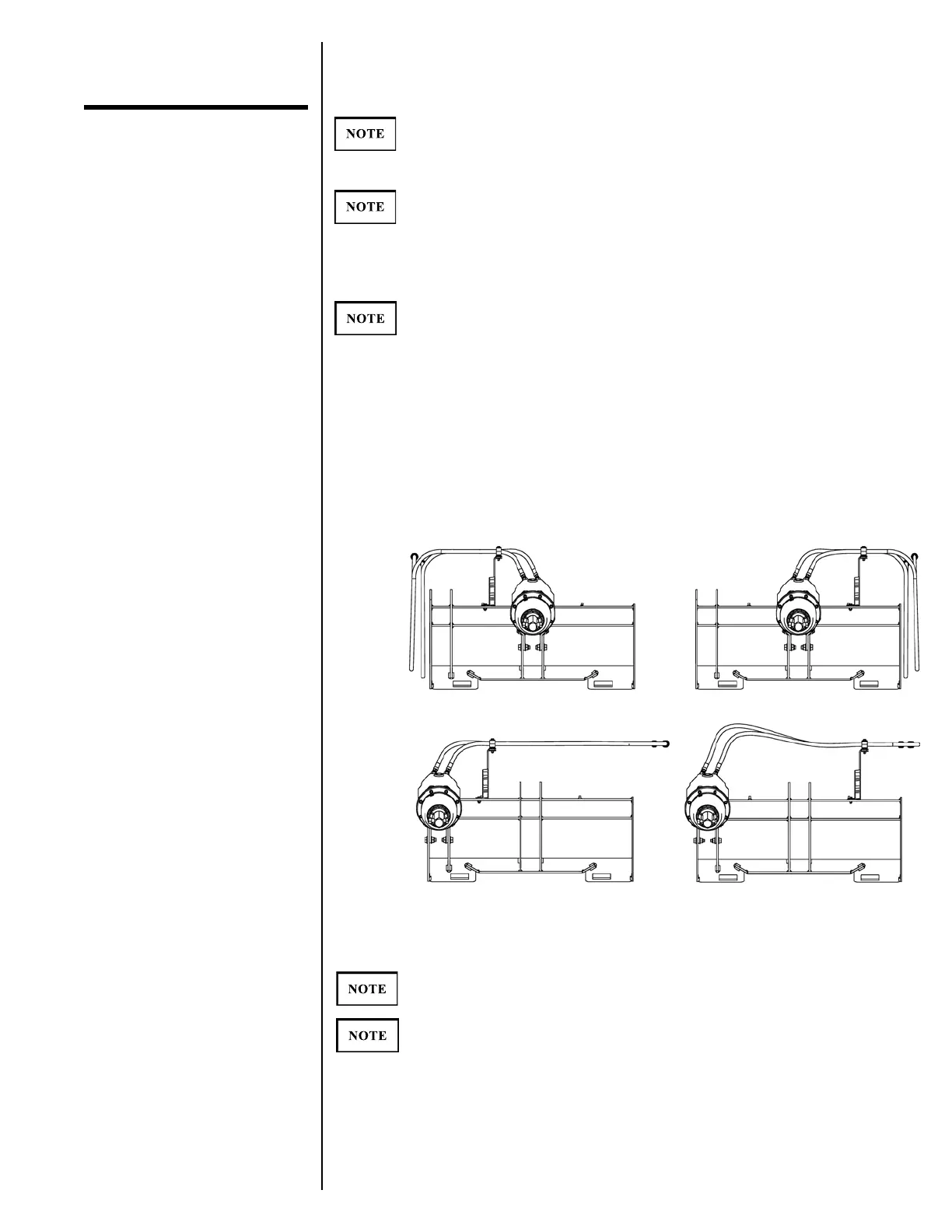

Skid-Steer Quick Attach,
center cradle position
Left spring mounting location
Right spring mounting location
Each vehicle may require different positioning of the hose holder spring kit, and of
the hoses as they pass through the clamp.
The hose holder spring kit will suit 1/2" diameter hoses only.
Tighten the hose holder spring mounting nut. Using two 1/2" wrenches, loosen the hose
clamp assembly, route the hydraulic hoses through the clamp assembly, and reattach the
hardware.
If routing hoses to the right of center, using a 7/8" wrench, orient the 45° adapters
on the drive unit toward the hose holder spring kit. The 45° adapters come from
the factory oriented to accommodate the left spring mounting location.
STEP 10:
STEP 11:
Left spring mounting location
Right spring mounting location
Skid-Steer Quick Attach,
offset cradle position
