darda C2S - Connection to Hydraulic Hoses

4 Work Preparation
OM Hydraulic Stone and Concrete Splitter, Version 1.0 04/2010 21
4
8
10
2
3
8
9
3
2
3
2
HP
LP
HP
LP
1
11
11
6
6
5
5
7
9
10
7
4.2 Connection to Hydraulic Hoses
1 Pressure limitation valve, complete
2 Hydraulic hose
3 Hydraulic hose
4 Distribution pieces, 1 to 3-point, complete
5 Hydraulic hose
6 Hydraulic hose
7 Quick-release coupling, low pressure, complete
8 Quick-release coupling, high pressure, complete
9 Quick-release coupling, low pressure, complete
10 Quick-release coupling, high pressure, complete
11 Control valve, complete
HP = High Pressure LP = Low Pressure

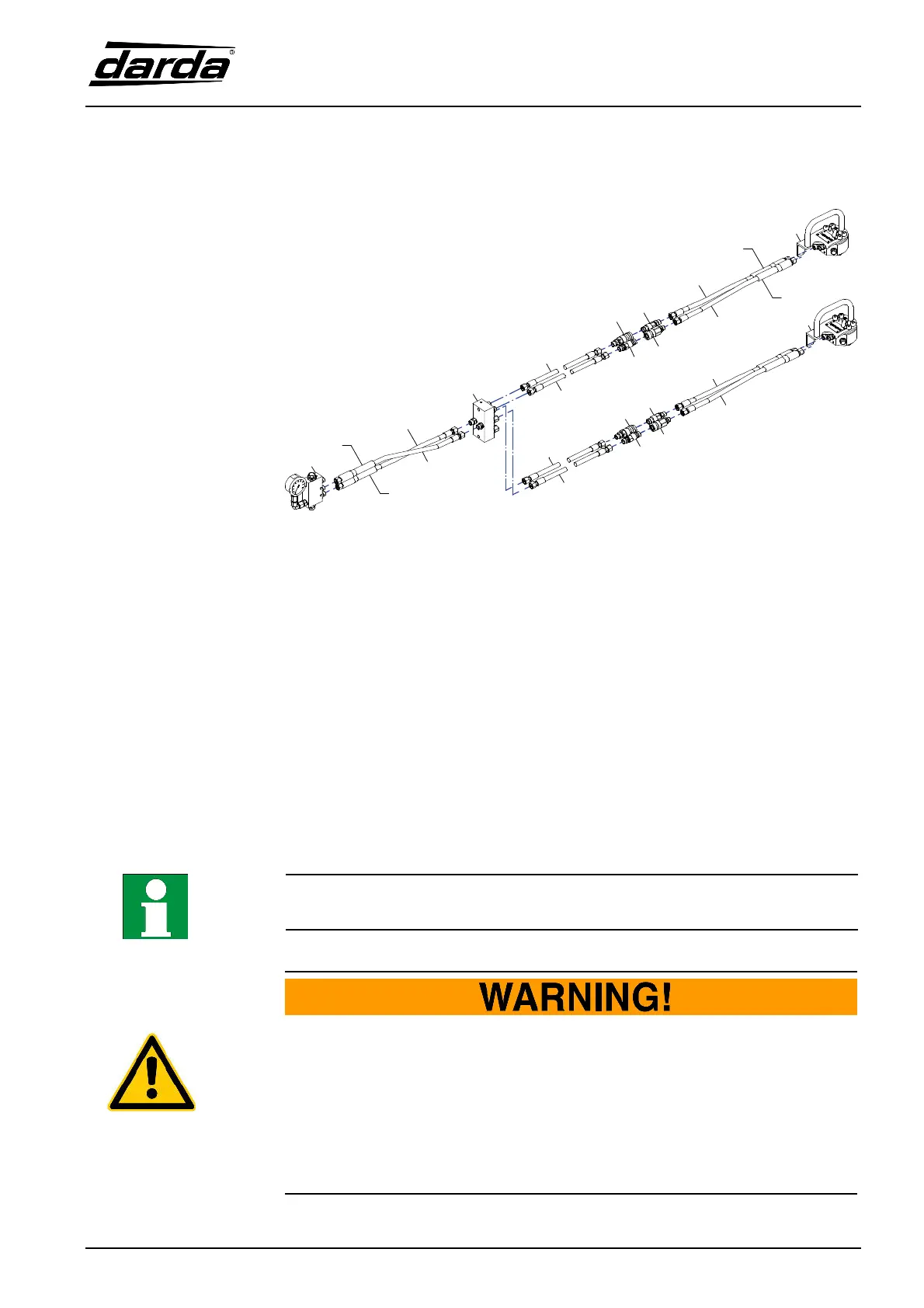

Fig. 4-2 - 1 Connection of hydraulic hoses
This diagram is an example. Please find all diagrams in the current replacement
parts list.
Do not bend hoses and test them for damage before use! Damaged hose sets
may not be used!
z Before connecting the hydraulic hoses and before commissioning, please
heed the safety instructions in chapter 2 of this product manual!
¹ 2.2.4 Danger Caused by Pressured Device Parts
z Connect the splitter(s) to the hydraulic aggregate. Heed the figure above.
