5.4 Expanding
5.4.1 Splitter types C2S, C4S
1 Built-in pot of splitter
2 Splitting wedge
3 Inner expander insert, 1st side
4 Outer expander insert, 1st side
5 Outer expander insert, 2nd side
6 Inner expander insert, 2nd side

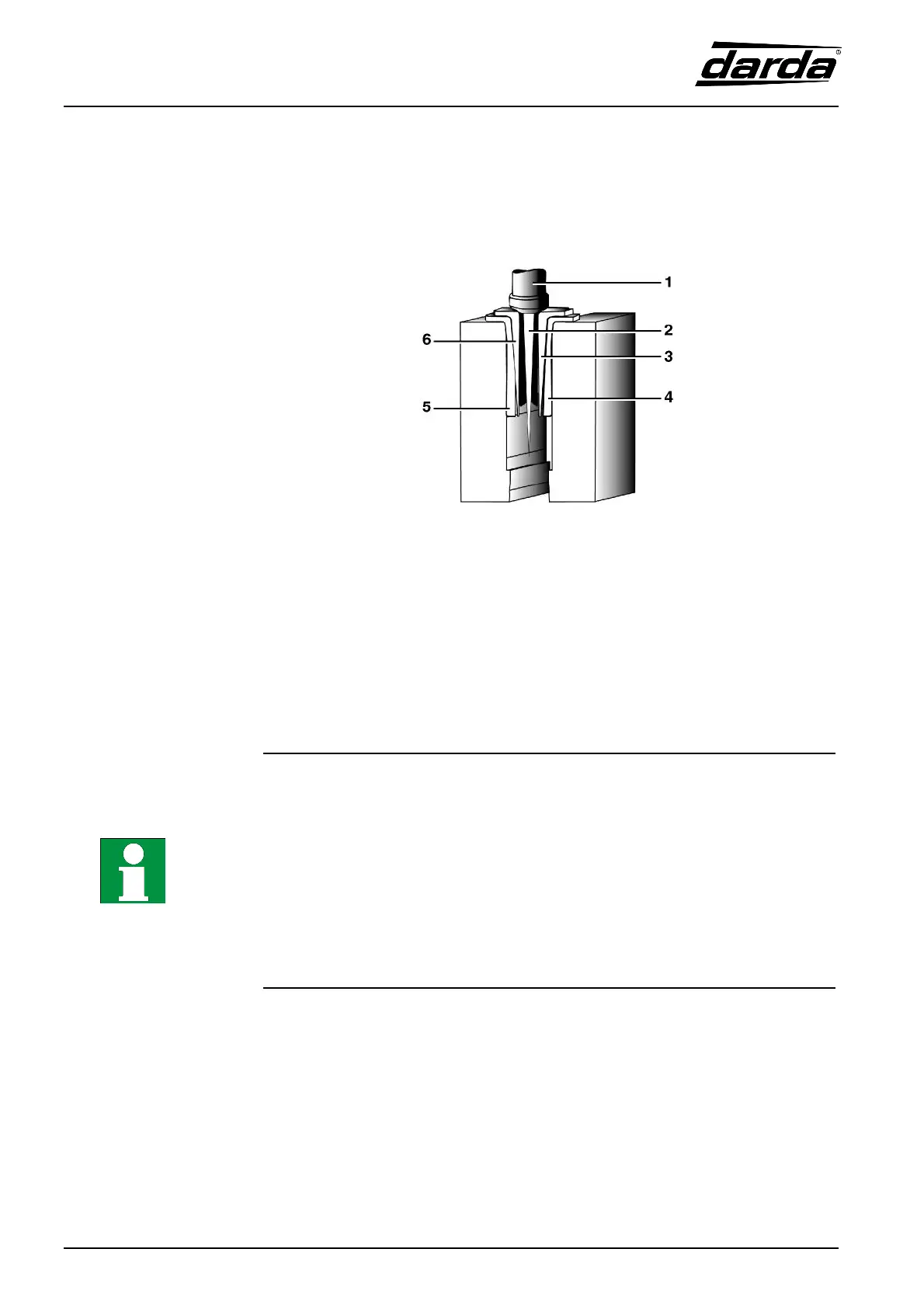

Fig. 5-4-1 - 1 Expanding with expander inserts
After securing the split, e.g. with an iron wedge, the expander insert (4) is laid
completely in the split.
Afterwards, you lay the second expander insert (3), which is thin at the bottom,
flush against the built-in pot (1) and push the splitting heads together with the ex-
pander insert (3) in the retracted state of the splitting wedge (2) as far as possible
into the split.
After extending the splitting wedge, secure the expanded split again and repeat the
process until the expander insert (3) is also completely sunk in the split.
To achieve the maximum splitting distance, repeat the process with the second
pair of expander inserts (5, 6).
