darda C2S - Splitter Types C9, C10 S, C12

6 Replacing Splitting Heads
OM Hydraulic Stone and Concrete Splitter, Version 1.0 04/2010 31
6.2 Splitter Type C9, C10S, C12
6.2.1 Exchanging the pressure pieces
A B C
1 Screwdriver
2 Hooks (2 x, right and left)
3 Splitting wedge
4 Pressure piece

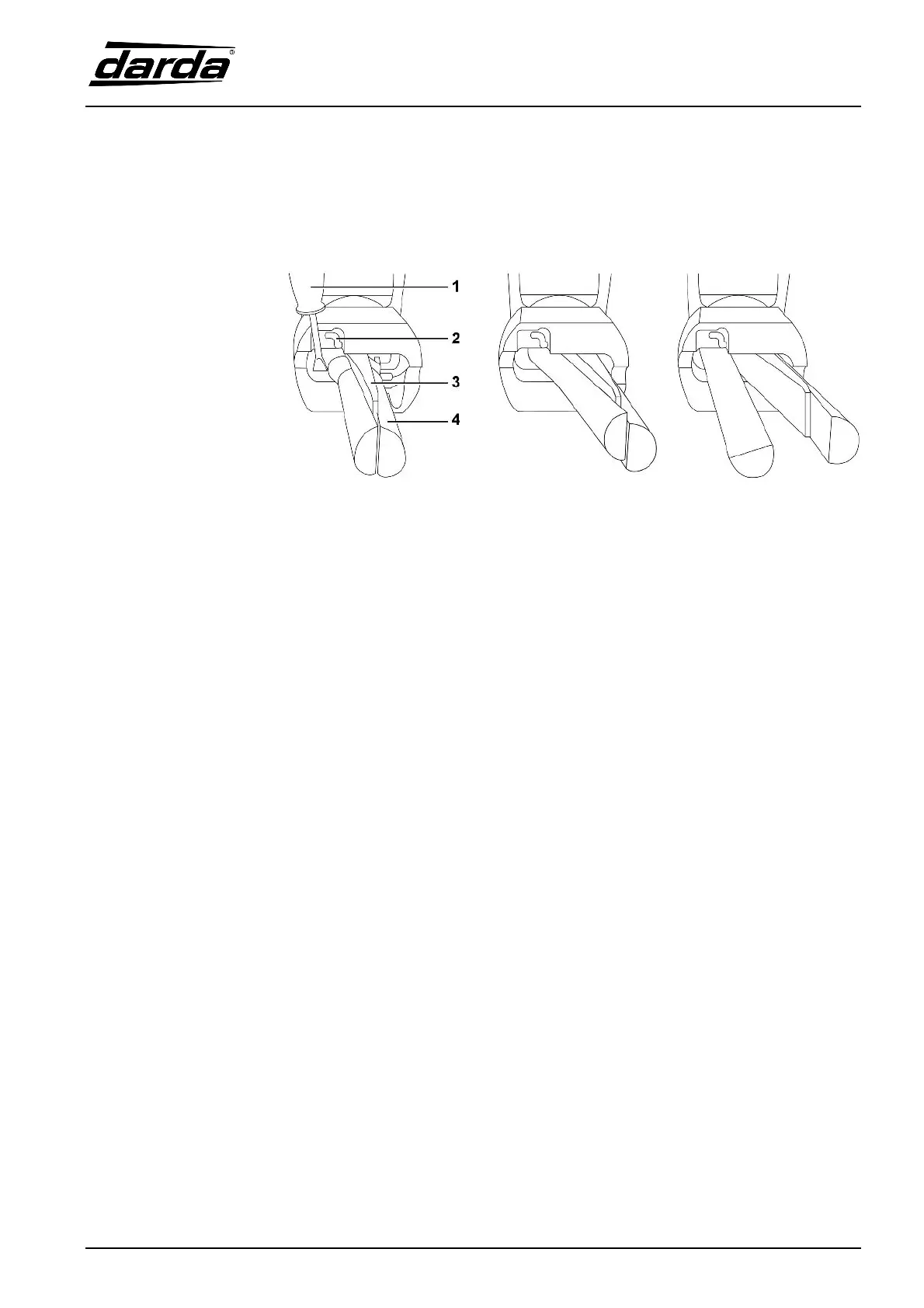

Fig. 6-2-1 - 1 Exchanging the pressure pieces
z Retract the splitting wedge (3) completely (operating lever in position R).
z Press both hooks (2), e.g. with a screwdriver, down or up (fig. A).
z Slide both pressure pieces together with the splitting wedge to the right (fig. B).
z Turn the left pressure piece 90º and pull it out (fig. C).
z Insert another pressure piece on the left side or slide the right pressure piece
together with the splitting wedge to the left.
z Turn the right pressure piece 90º and pull it out.
z Now change the splitting wedge as described on the next page or assemble
other pressure pieces in the reverse order.
