28 / 47

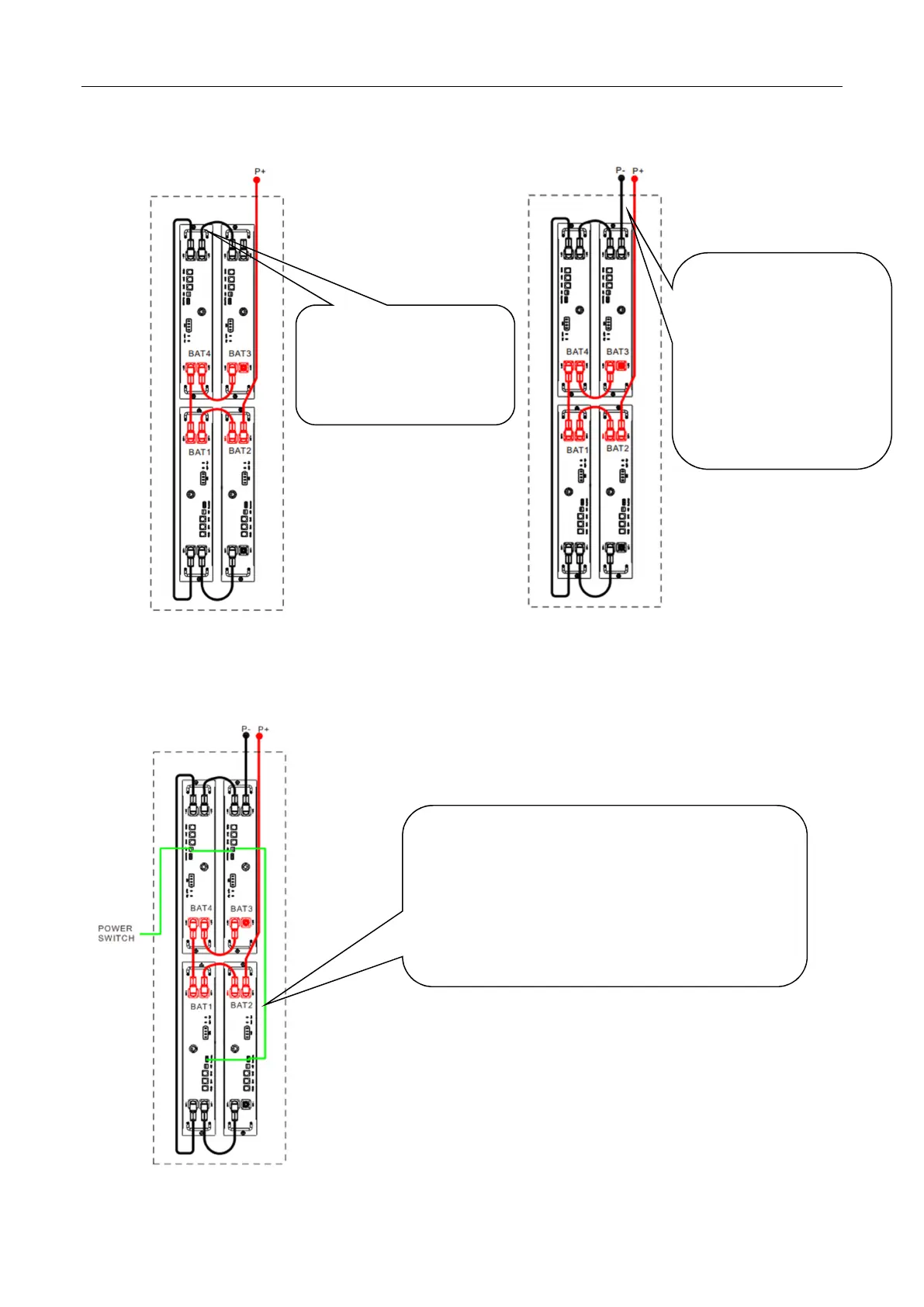

e. Connect the B- of BAT3 to
the B-terminal of BAT4 using
a wire harness (label
5619100023341)
f. Use a wire harness
(labeled 5619100023601) to
pull the B- terminal from
BAT3 through the
waterproof connector to the
negative terminal of the
external inverter BAT side.
g. After removing the boot harness (labeled with DRY1)
attached to the cabinet, the power button is already
installed on the cabinet, and the online terminal is inserted
into the BAT4 Dry contact interface and the BAT3 Dry
contact interface according to the direction of the gap. , Dry
contact interface of BAT2, Dry contact interface of BAT1.
