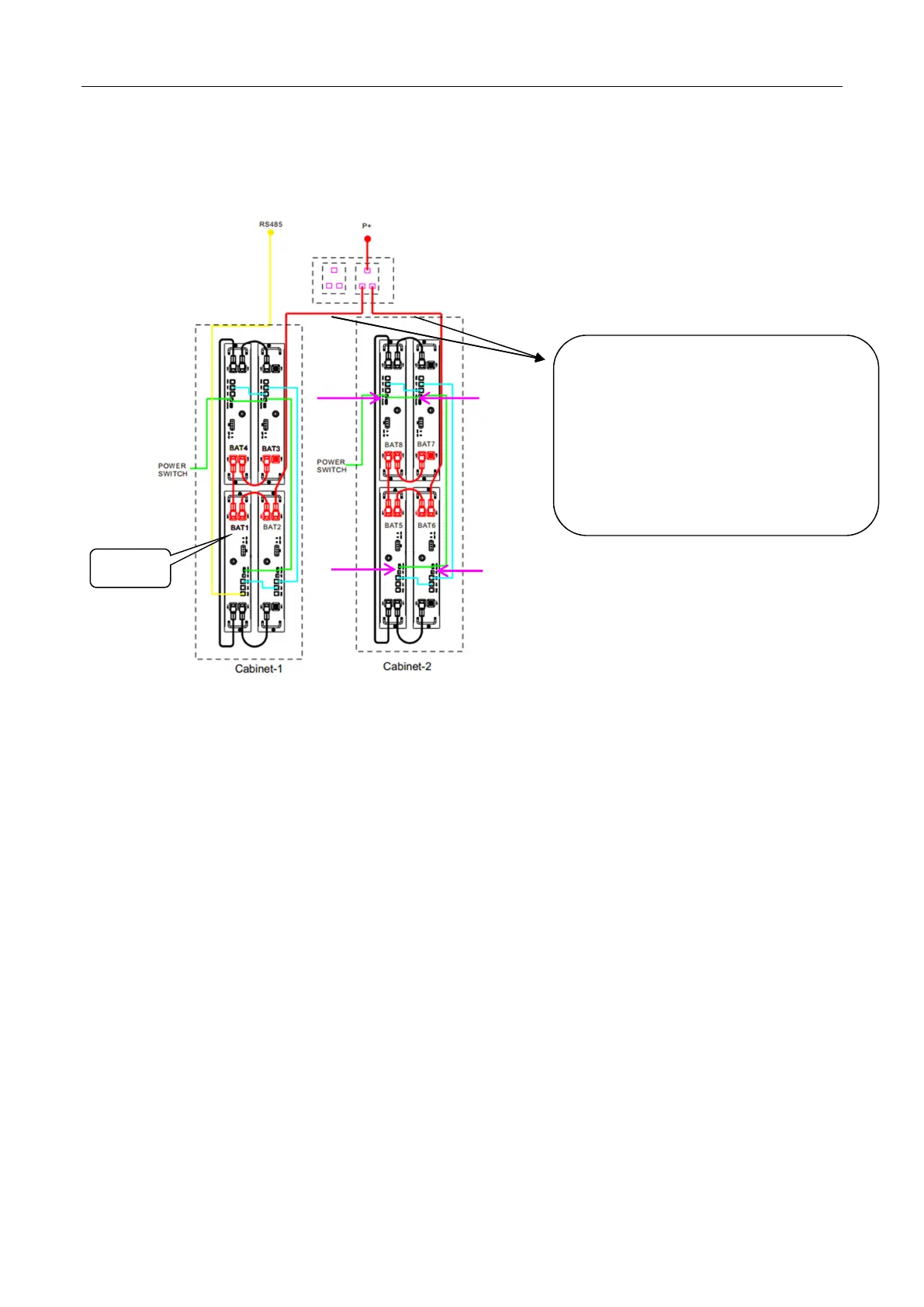

3.4.3 Two parallel cabinet wiring
a. Cabinet-1 and Cabinet-2 internal wiring reference 3.4.2 single cabinet wiring steps.
b. Connect the B+ terminal of BAT2 of
Cabinet-1 and the B+ terminal of BAT6 of
Cabinet-2 to the positive terminal of Bus
Terminal by wire harness (label
5619100023611), and connect it to the
positive side of inverter BAT side from the
output side of Bus Terminal.
SLAVE1
Address 6
ADDR: 1100
Address 5
ADDR: 1010
Address 7
ADDR:1110
Address 4
ADDR:1000
