Data Aire DAP III Instructions

Data Aire, Inc. DAP
TM
III BACnet Integration Instructions
Engineering Document - 600-000-460
Page 3 of 13
1 Overview
The DAP III control panel supports a BACnet communication with a BMS for the system
monitoring and control. This document describes all the requirements and configuration
steps to implement the interface with a DAP III panel using the BACnet MS/TP and
Bacnet IP protocol.
2 Hardware Requirements and Installation
2.1 Required Network Card
2.1.1 The BACnet MS/TP protocol interface requires a Data Aire RS-485 Multidrop
communication network card to be installed into the DAP III Display board.
The RS-485 Multidrop card part number is 160-400-383.

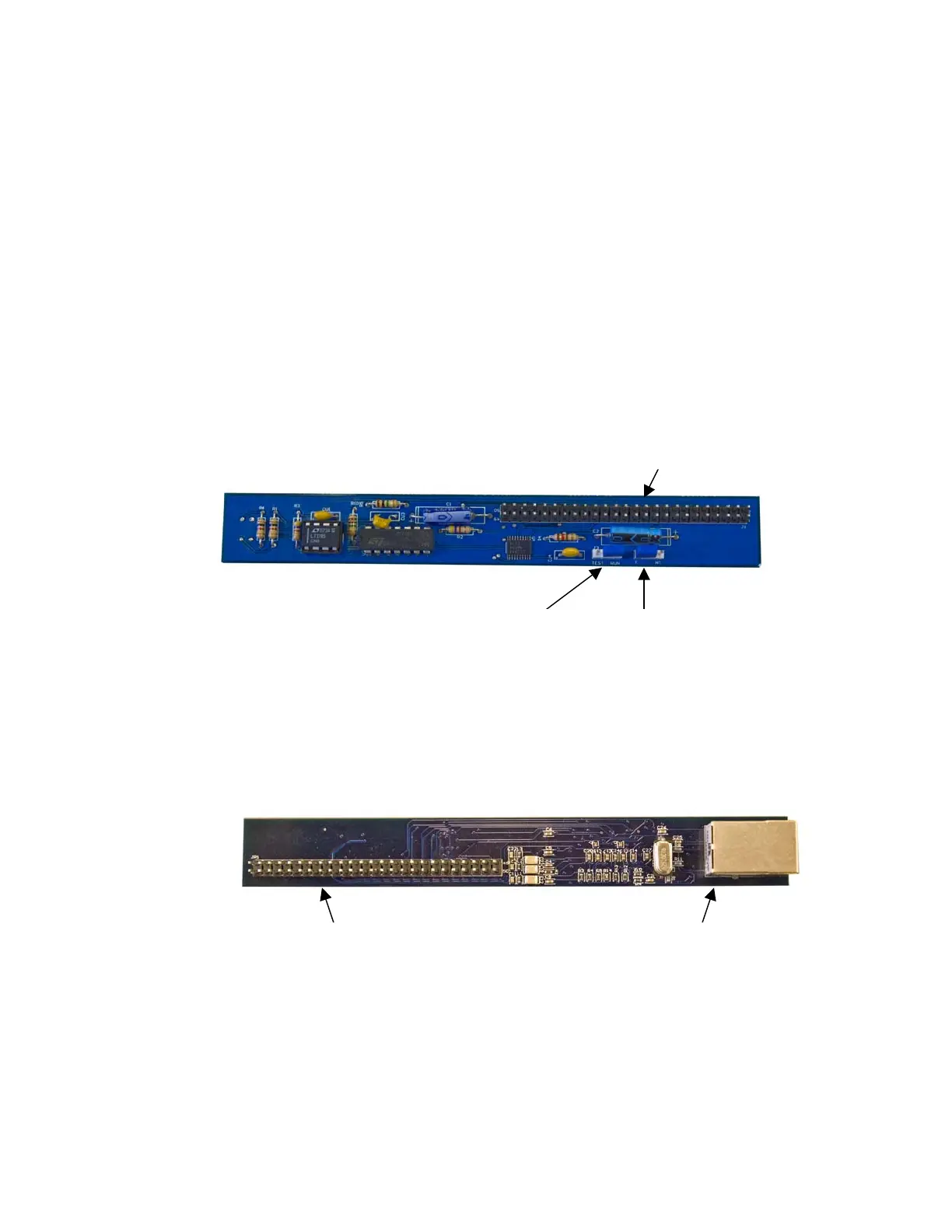

Figure 1: Data Aire RS-485 Multidrop Communications Network card
2.1.2 The BACnet IP protocol interface requires a Data Aire Ethernet network card to
be installed into the DAP III Display board. The Ethernet card part number is
160-400-385. This card is compliant with IEEE 802.3/802.3u 100BaseTX
Ethernet standard and auto-negotiation at 10Mbps/ 100 Mbps.
Figure 2: Data Aire Ethernet Communications Network card
BOARD CONNECTOR RJ-45 CONNECTOR
END JUMPER TEST JUMPER
BOARD CONNECTOR
