Replace the printhead cartridge
1 Position the printhead cartridge with the silver label toward you and on top. Place the printhead cable behind
the cartridge so the plug is visible through the opening in the printhead cartridge.

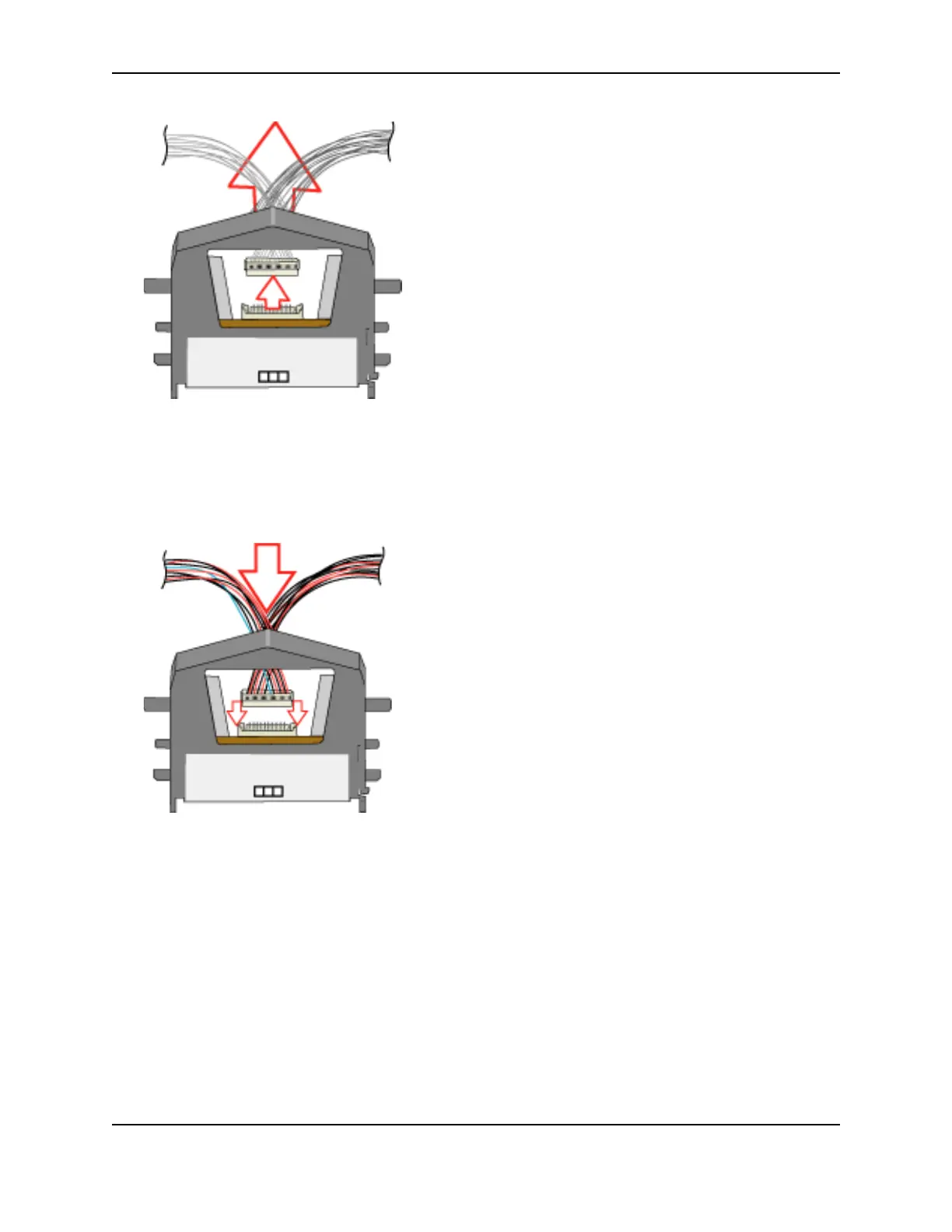

2 Carefully align the plug with the receptacle on the printhead. Push the plug all the way onto the receptacle (see
the following illustration).
3 Align the printhead cartridge pins with the printhead cartridge slots on the cover arm (see the following
illustration).
