The local teach-in mode can be emulated through
serial interface selecting a group of contiguous beams.

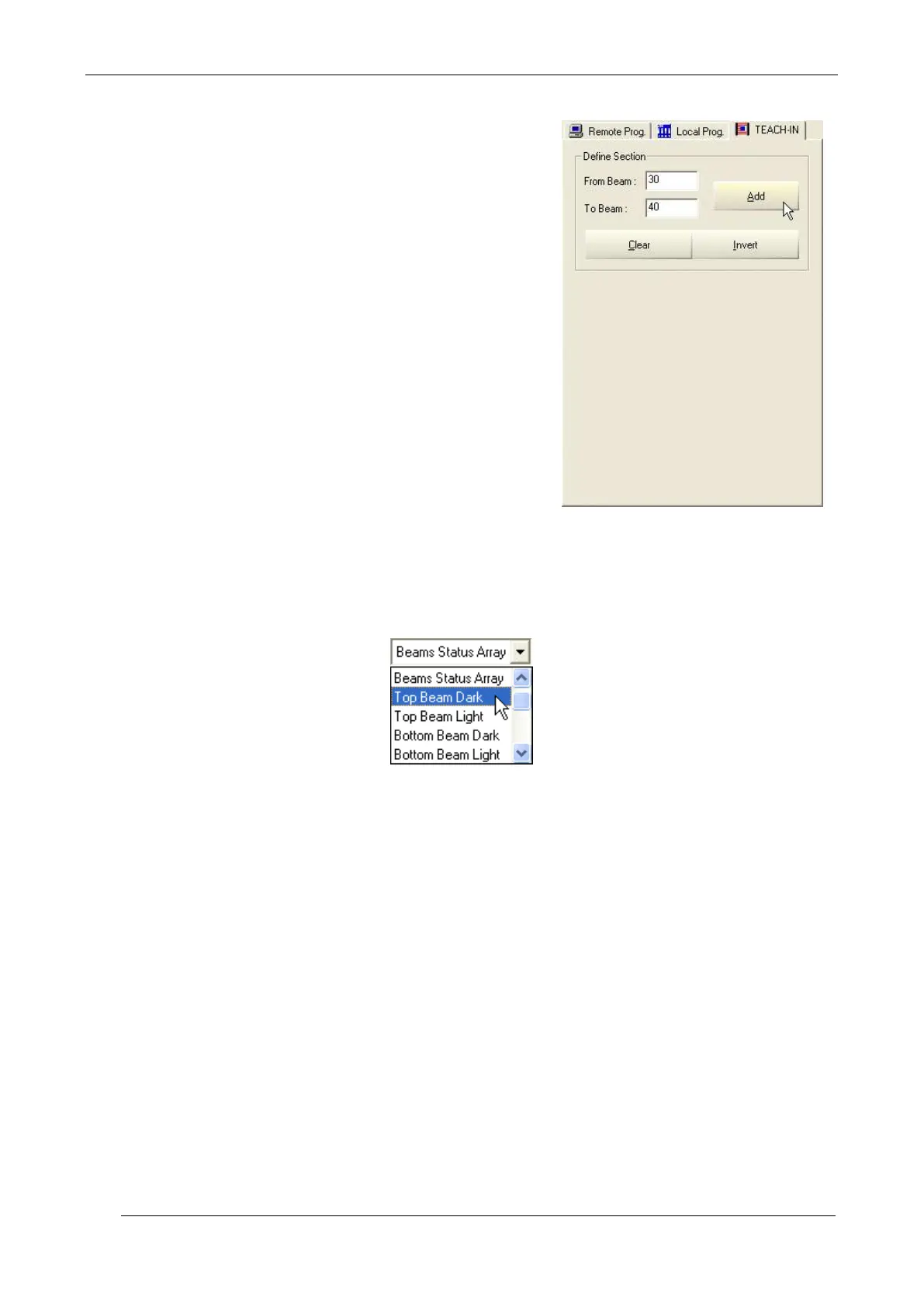

Select the first and last photoelements of the segment
that have to be added and then press Add. The shape
is immediately drawn in the Teach-in bar (see Fig.17).
This operation can be repeated to set different objects
with the most varied shapes.
The entire shape can be changed or inverted selecting
repetitively the Cancel and Invert buttons. The object
presence is characterised by a dark colour and the
object absence by a light colour.
Measurement analysis: maximum two measurement
transmissions can be set in the remote mode according to the Serial transmission section.
Different options are available:
- None
- Beam Status Array
- Top Beam (dark or light)
- Bottom Beam (dark or light)
- Middle Beam (dark or light)
- Total Beam (dark or light)
- Total Contiguous Beam (dark or light)
- Transition number (dark or light)
