Data Capture
198 DL-Axist™
3. Center the symbol in any orientation within the aiming pattern.
Ensure the entire symbol is within the rectangular area formed
by the brackets in the aiming pattern, then either wait for the
timeout or release the scan key to capture the image. A red beam
illuminates the symbol, which is captured and decoded.
If the scan has been successful:
• If enabled, the good read LED glows steadily green for a
configurable time.
• If enabled, the good read beep plays.
• The barcode type and content data display on the screen.
The field of view changes its size as you move the reader closer or
farther away from the barcode. The aiming pattern is smaller when
the imager is closer to the barcode and larger when it is farther from
the barcode.
Scan symbols with smaller bars or elements (mil size) closer to the
unit and those with larger bars or elements (mil size) farther from
the unit. Hold the DL-Axist between two and nine inches (depending
on symbol density) from the symbol, centering the aiming pattern
cross hairs on the symbol.

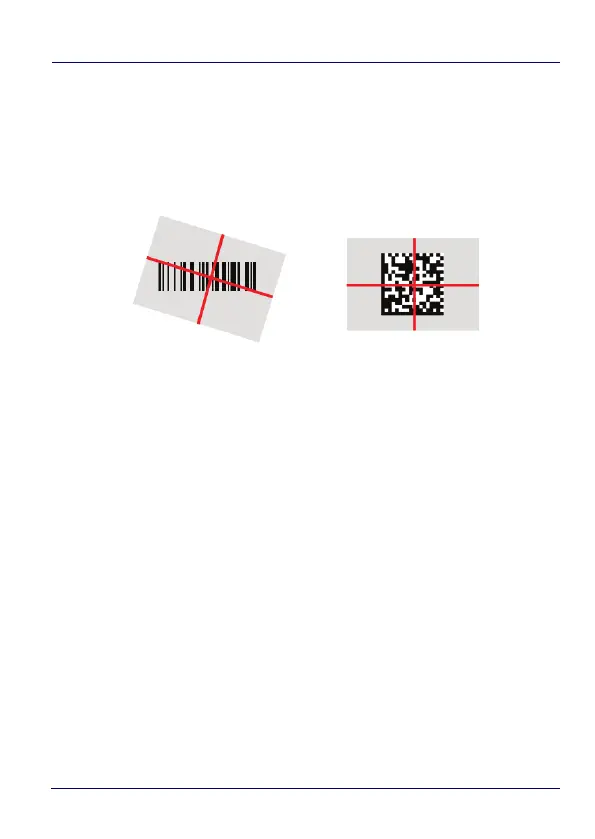

Linear Bar Code
