F734-E SERIES TERMINALS
2
2.2 CONNECTION TO THE HOST COMPUTER
CAUTION
Before proceeding with this phase, make sure
that both the computer and the terminal are
switched off.
2.2.1 RS232 Connection
To connect the F951 cradle to the host computer, proceed as
indicated below:
1- Connect the cable to the serial port of the host computer.
2- Connect the other end of the same cable (RJ connector) to the
RS232 port of the cradle (point E in the previous figure).
3- Insert the power-supply plug into the jack on the base of the
cradle (point D in the previous figure).
4- Attach the power supply to a power outlet.
5- Turn on the cradle (point B in the previous figure) and the
computer.
6- Put the F734-E terminal into the cradle and, if necessary, wait
for battery recharging.
A
C
B
D

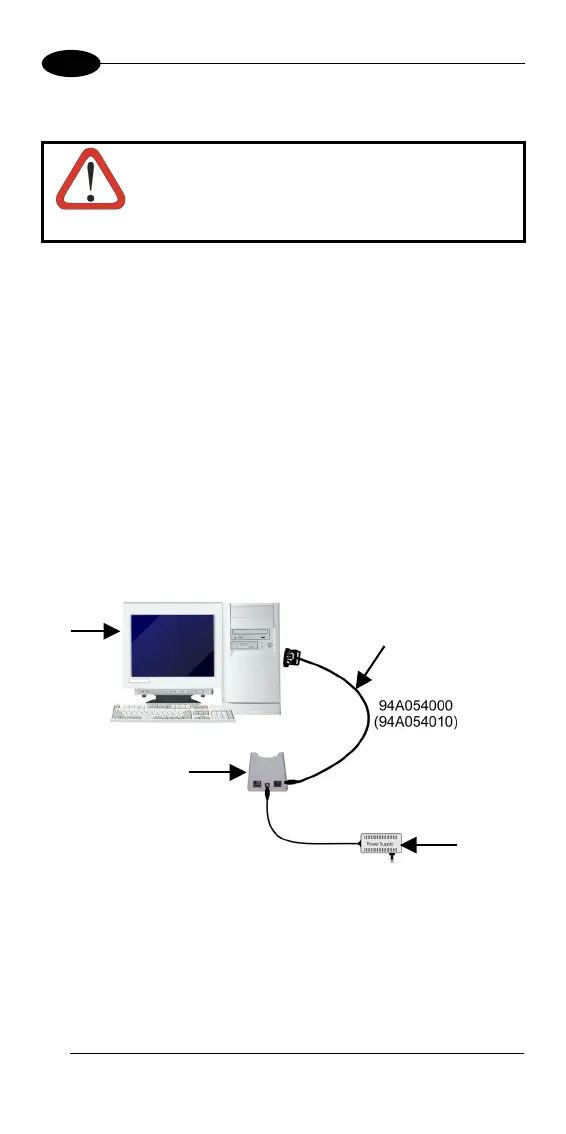

Figure 7 - RS232 Single Cradle Connection
Key:
A) Host computer
B) Serial cable
C) Single cradle F951
D) Power supply
8
