2.2.4 RF Connection
The RF connection allows the F734-E/RF terminal to communicate
with the host via radio frequency using the STARGATE™ RF base
station connected to the host computer.
C
D
B
A

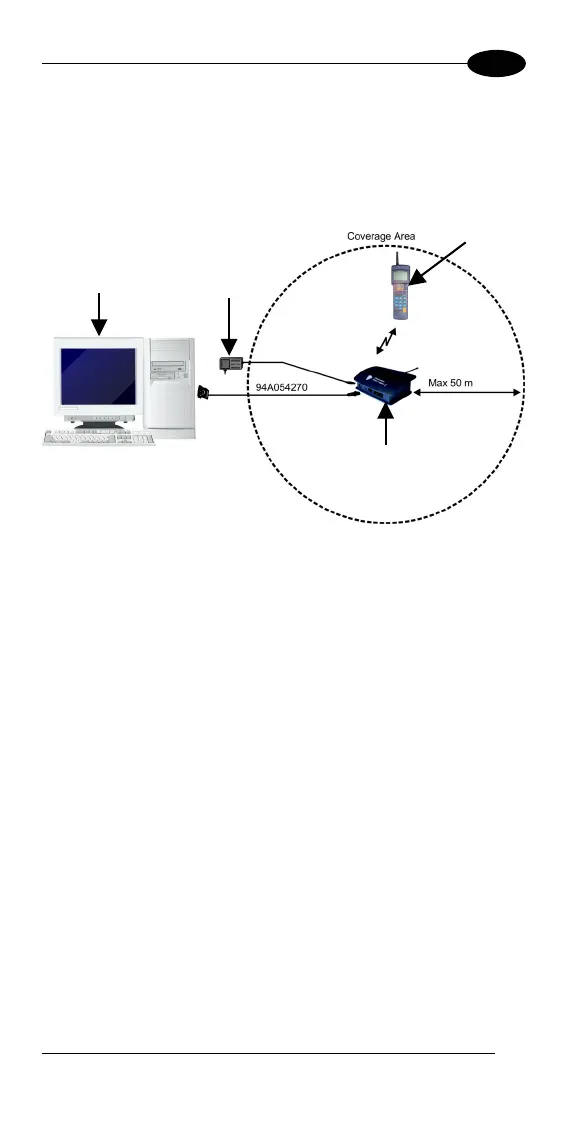

Figure 11 - RF Connection
Key:
A) Host computer
B) Power supply
C) F734-E/RF terminal
D) STARGATE™ RF base station
