Changing the Base Station Position
The base station is configured by installing one of two sets of
mechanical parts that come with the cordless kit. The default
mounts (shown in
Figure 2
) provide three options: vertical
(wall) mounting, standing (45°), or horizontal mounting with
a higher mechanical retention of the scanner. Use the other
mounts only for horizontal mounting, with lower retention of
the scanner.
1. Insert the appropriate parts for the desired base station
position, as shown.

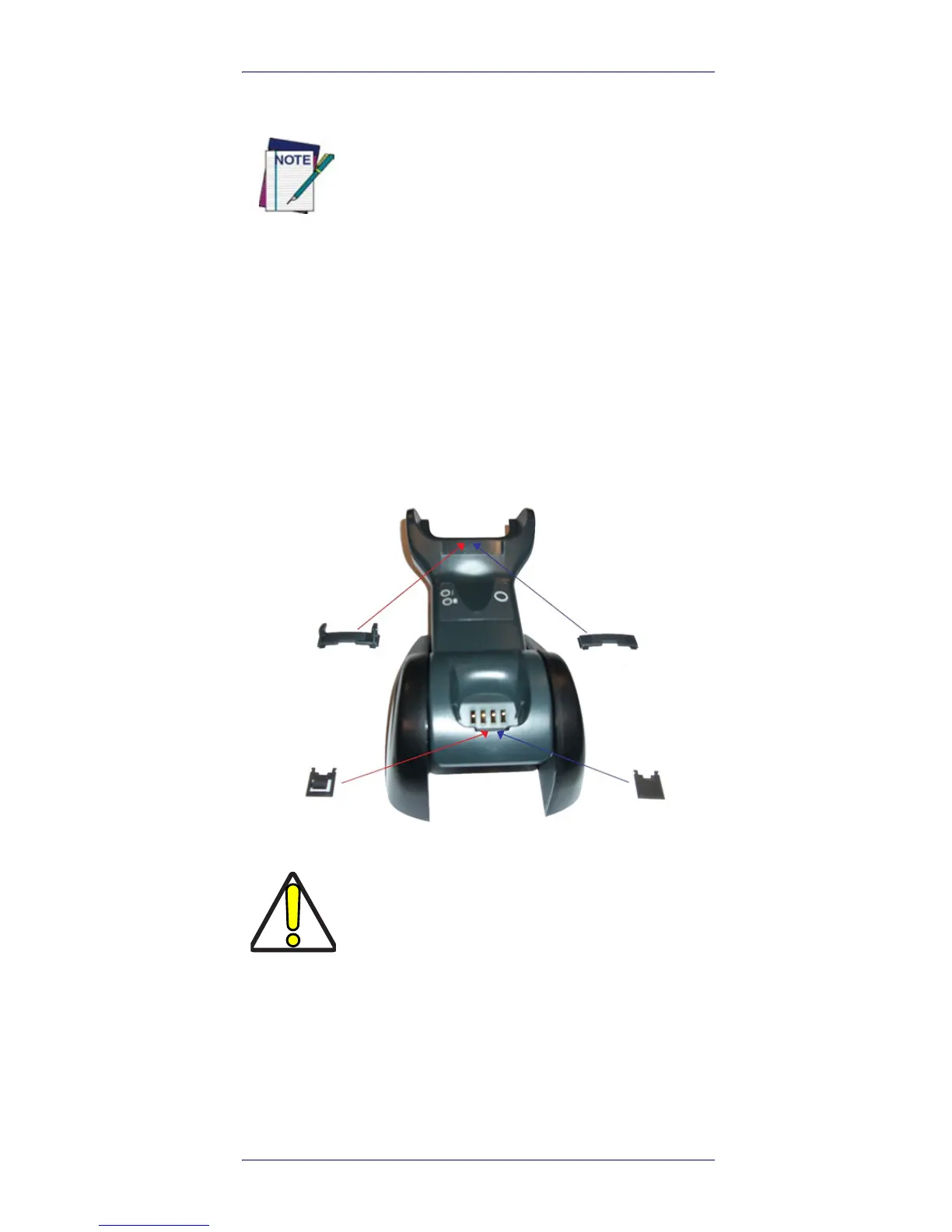

Figure 2. Mounting Parts
A tool such as a rigid pen or a flat screwdriver can be used
to change the mounts. Do not allow the tool to touch the
contacts.
CAUTION
To ensure best contact and performance, do not intermix
the parts of the two different mount sets.
