Datalogic Gryphon GM44XX - System and Network Layouts; Stand Alone Layouts

Connecting the Base Station
8 Gryphon™ I GM44XX
System and Network Layouts
Stand Alone Layouts

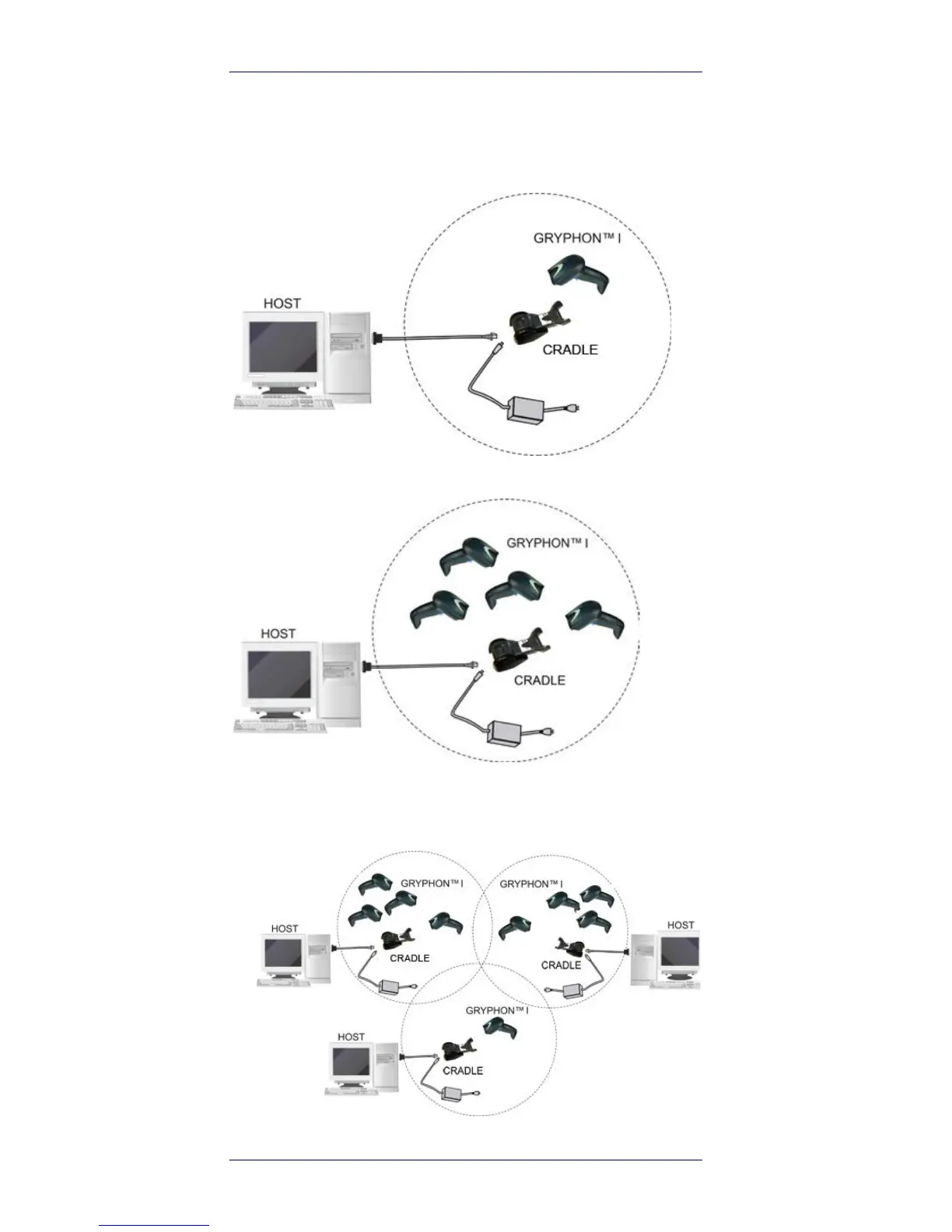

Figure 10. Single Reader Layout
Figure 11. Multiple Reader Layout
In stand alone systems, each cradle is connected to a single
Host.
Figure 12. Multiple Stand Alone Layouts
