Connecting the Base Station
6 Gryphon™ I GM44XX

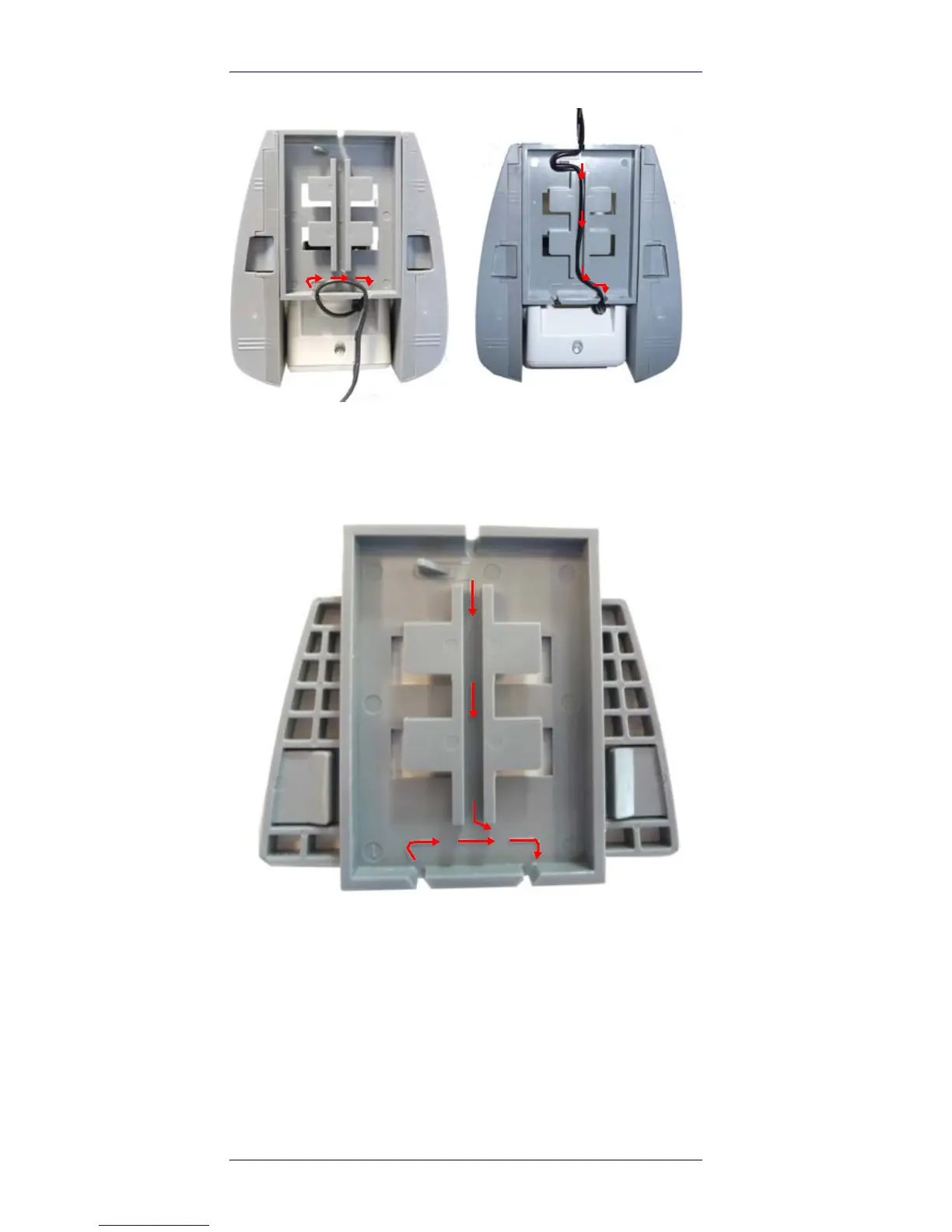

Figure 6. Options for routing the DC cord
Please refer to the arrows depicted on the bottom of the base
when placing the cables, detailed in
Figure 7
.
Figure 7. Arrows showing routing
Host Connection:
Verify before connection that the reader’s ca-
ble type is compatible with your host equipment.
Most connections plug directly into the host device as shown
in
Figure 8
. Keyboard Wedge interface cables have a ‘Y’ connec-
tion where its female end mates with the male end of the cable
from the keyboard and the remaining end at the keyboard port
on the terminal/PC.
