Datalogic Magellan 2200VS Quick Reference Guide

4 Magellan
TM
2200VS
Green LED Indicator
The green LED indicates scanner status as shown in the table below..

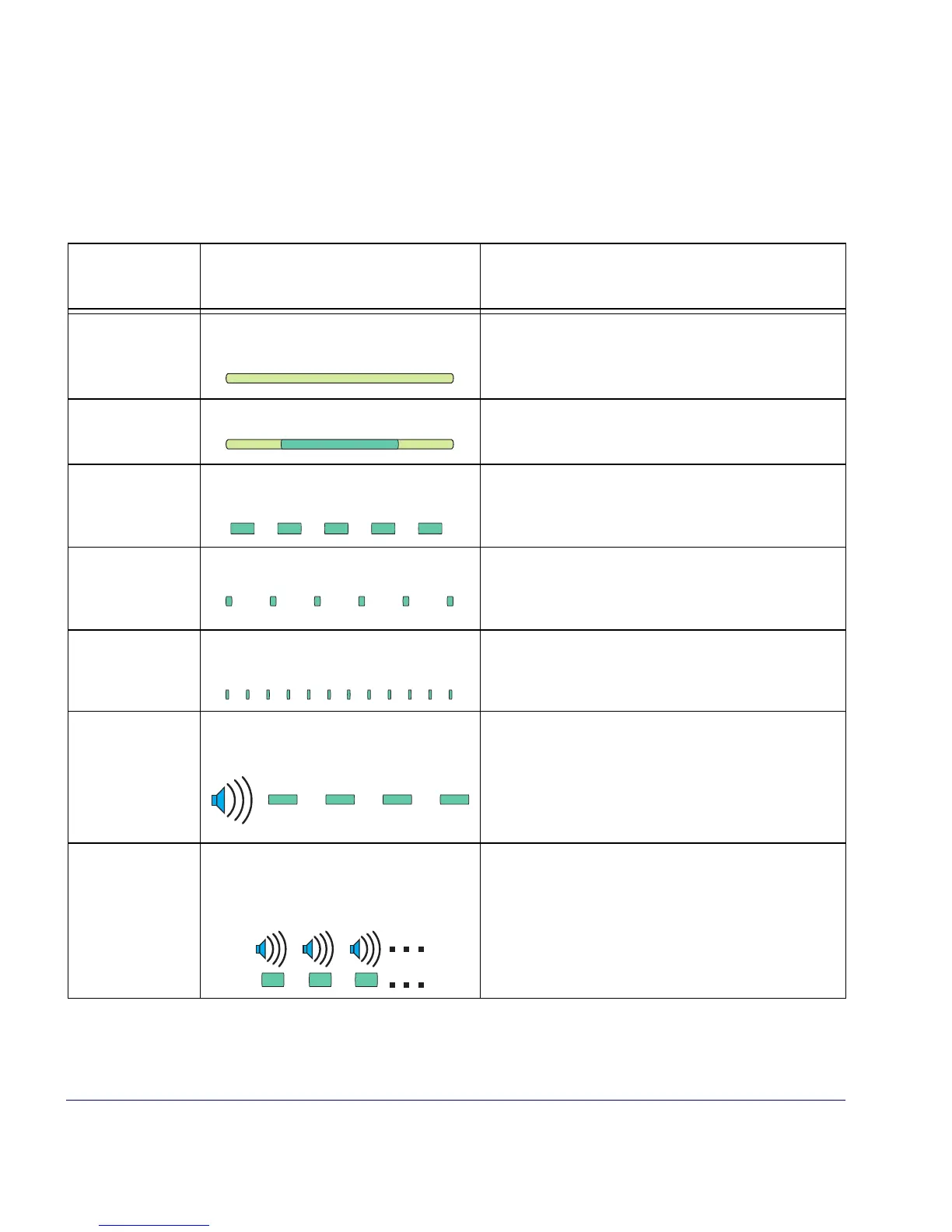

Table 2. Green LED Indications
LED
INDICATION
DURATION COMMENT
Scanner Active
a
a. Certain functions of the LED are selectable to be enab
led or disabled. Your scanner may not be pro-
grammed to display all indications.
(Normal Mode)
Scanner (Green) LED on steady and
dim
The scanner is ready for operation. Scanning is
immediately available.
Good Read
Indication
a
Scanner (Green) LED - bright flash
Indicates a bar code has been read and decoded.
Program Mode
Indication
Scanner (Green) LED - Continuous
flashing
Indicates the scanner is in Label Programming
Mode. Cycle power to exit Programming Mode.
Sleep Mode
Indication
Scanner (Green) LED flashes slowly
The scanner motor and/or laser have automati-
cally switched off and the unit has entered Sleep
Mode du
e to extended inactivity.
Host Disabled
Scanner (Green) LED 1-second off, 1/
10-se
cond on
Host has disabled scanning.
Field Replace-
able Unit (FRU)
W
arning (Error
Mode)
Audible low tone 1 second. LED
flashes contin
uously.
Serves notice that a fatal FRU failure has been
detected. Call systems support for service.
FRU Indication
Scanner (Green) LED flashes a
coded sequence in concer
t with the
speaker
.
Occurs ONLY upon Volume/Tone button push fol-
lowing a FRU warning. Enables service techni-
cians to identify FRU failures.

Datalogic Magellan 2200VS Specifications

General

Decoding standards	-1D + GS1 DataBar, -GS1 DataBar Expanded Stacked, -GS1 DataBar Stacked, -GS1 DataBar Stacked Omnidirectional.
Standard interfaces	USB, RS-232
Dimensions (WxDxH)	152 x 152 x 97 mm
Product color	Gray
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	1100 g
