Quick Reference Guide 1
Introduction
This Quick Reference Guide presents a brief description of scanner and scanner/scale
operation for your convenience. If you’d like more detailed information about setup,
installation and programming, see the Product Reference Guide for this product. These
manuals are provided in Portable Document Format (PDF) for viewing and printing
from the website listed on the back cover of this manual. Additionally, printed manuals
can be ordered from your dealer/distributor.
Operation
Scanning Items

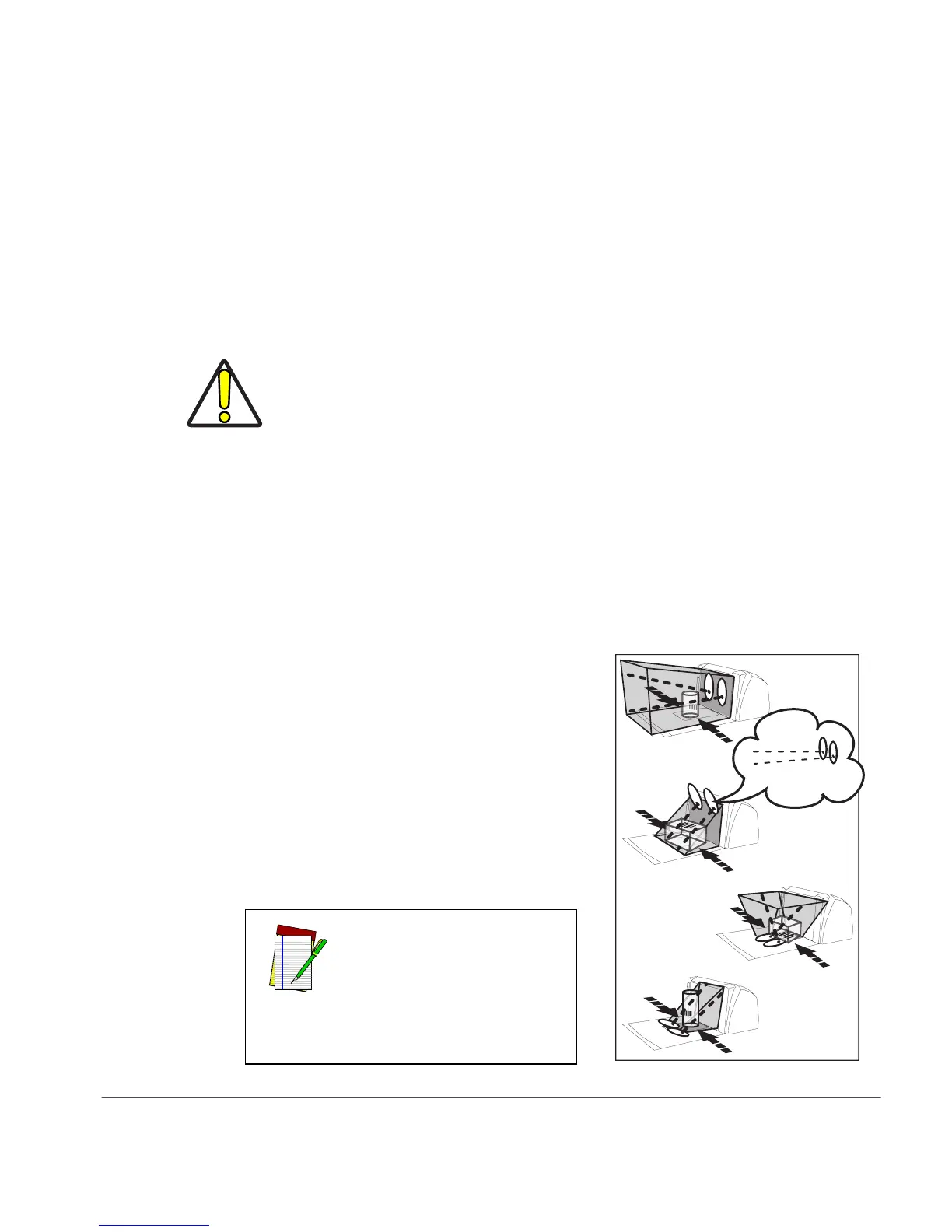

To scan items using the scanner, slide or push them through the SurroundScan
TM
scan
zone as shown on this page. The scanner will work equally well with either a left-to-
right or right-to-left motion through the scan zone. There is no need to reorient an item’s
bar code since the scanner can “see” the left, right, front and back side, as well as the top
and bottom of an item.
Here are some tips for best scanning results:
• Don’t favor either the horizontal or verti-
cal scan windows. Keep items in their
natural orientation.
• Remember to slide or push items rather
than picking them up. By avoiding any
gripping, twisting and rotation of your
hands and wrists, you can prevent repet-
itive motion injuries. This technique also
relieves you from possibly lifting thou-
sands of pounds per day.
CAUTION
Apply power to the EAS Controller box before powering on the scanner..
NOTE
“Limited Scanning Mode”
is entered by default until
a POS terminal enables
scanning. Labels are
“chirped” while in this
mode.
Vertical Window
Scan Zone
Horizontal Window
Scan Zone
Checker Side
Scan Zone
Top D own
Scan Zone
...indicate what the
scanner "sees."
Note that
eyes...
To Next Page
