Datalogic Matrix 120 - I;O Connections

I/O Connections

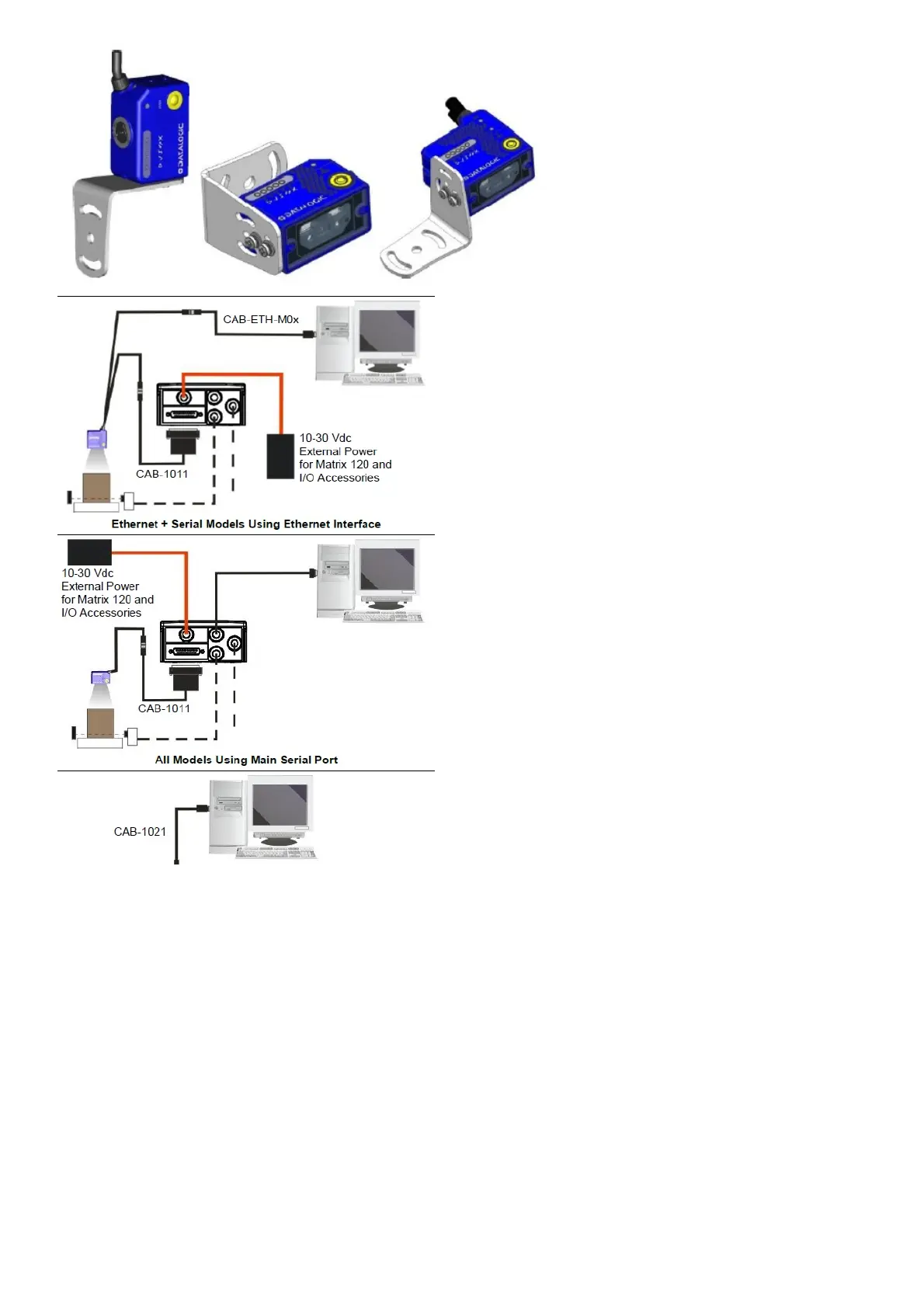

I/O Using CAB-1011 to CBX:
CAUTION: When Matrix 120 is connected to the CBX connection box through CAB-1011, Inputs and Outputs
become opto-isolated and maintain the polarity significance of the CBX signals. To function correctly, they all require
setting the respective Line Type configuration parameters to NPN. The hardware connection to the CBX can be
either NPN or PNP
The electrical features of both inputs at the CBX are:
VAB = 30 Vdc max.
IIN = 12 mA (CAB-1011) + 12 mA (CBX) max.
The following connections refer to Datalogic sensors.
