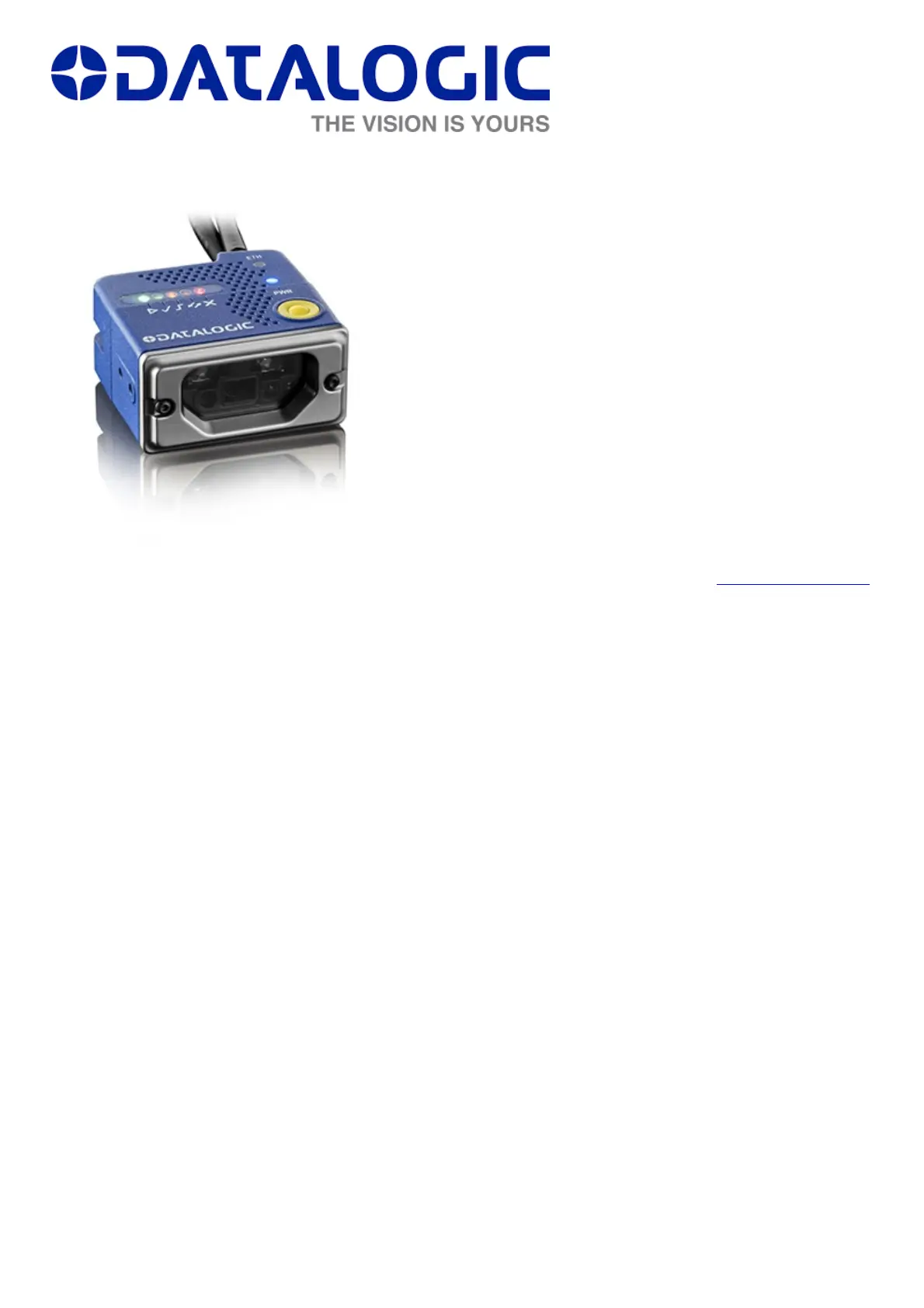

DATALOGIC Matrix 120
Datalogic provides several services as well as technical support through its website. Log on to www.datalogic.com.
For quick access, from the home page click on the search icon , and type in the name of the product you’re looking
for. This allows you access to download Data Sheets, Manuals, Software & Utilities, and Drawings. Hover over the
Support & Service menu for access to Services and Technical Support.
INSTALLATION PROCEDURE
1. Using a 2.5 mm hex key, set the Focus Adjustment Screw to one of the three pre-calibrated distances according
to your application.
2. Physically mount the Matrix 120 reader.
3. Make the necessary electrical connections.
4. Configure the reader using the X-PRESS interface (AIM, SETUP, LEARN and TEST for simple configuration) or
the DL.CODE software configuration program (complete configuration).
HMI X-PRESS™ INTERFACE
In normal operating mode the colors and meaning of the five LEDs are illustrated in the following table:
READY (green) indicates the device is ready to operate.
GOOD (green) confirms successful reading.
TRIGGER (yellow) indicates the status of the reading phase.
COM (yellow) indicates active communication on main serial port.
STATUS (red) indicates a NO READ result.
