1. HMI X-PRESS™ Interface PRESS
2. Power On LED
3. Ethernet Connection LED
4. Mounting Holes (4)
5. Aiming System Laser Source
6. Lens
7. Good Read LED Green
8. Internal Illuminators
9. Focus Adjustment Screw
10. Ethernet Cable
11. Power-serial- I/O Cable
Mounting

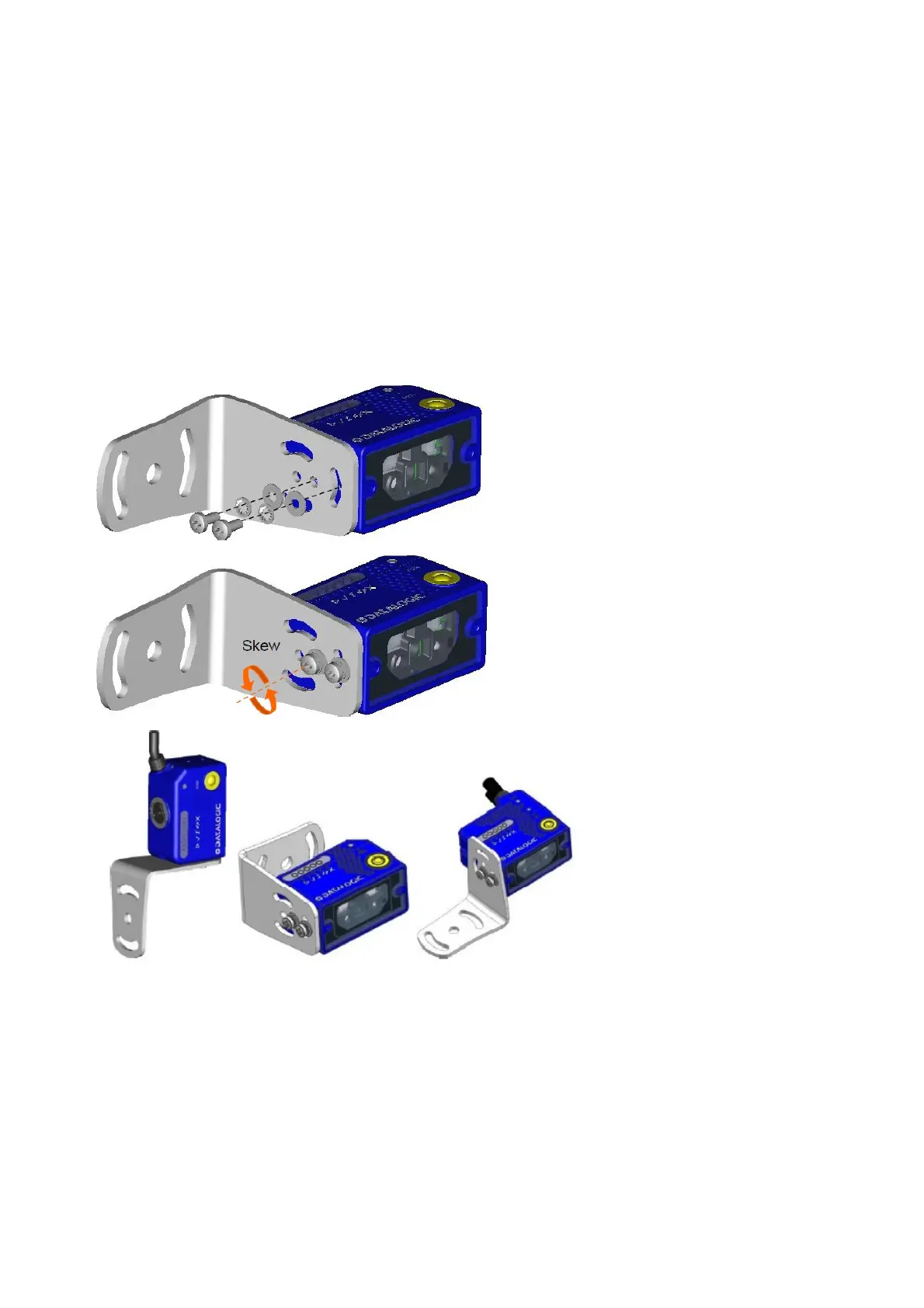

1. To mount the Matrix 120, use the mounting bracket to obtain themost suitable position for the reader. Common
mounting configurations are shown in the figures below.
