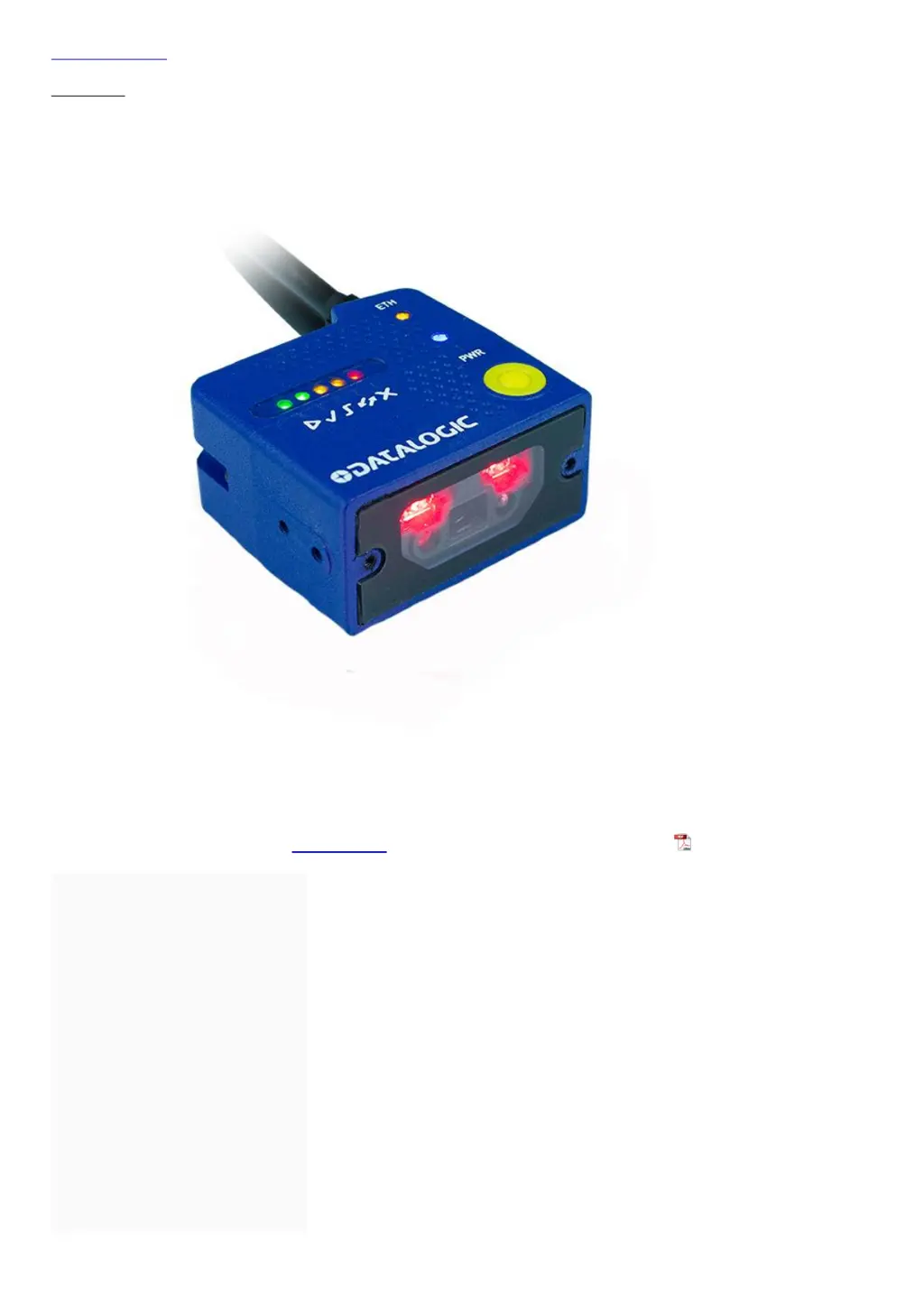

Datalogic Matrix 120 - User Manual

Other manuals for Datalogic Matrix 120

Reference Manual144 pages

Product Reference Guide188 pages

Questions and Answers

A
Andrew SmithNov 27, 2025
What to do if the TRIGGER LED is not blinking with External Trigger on Datalogic Scanner?
- J
  Jeffrey FitzpatrickNov 28, 2025
  If the TRIGGER LED is not blinking while the External Trigger is switching in One Shot or Phase Mode on your Datalogic Scanner, consider the following checks: * Verify whether you're using the 17-pin connector or the CBX spring clamp connectors. * Confirm the sensor is connected to Input 1 or Input 2. * Ensure power is supplied to the photo sensor. * For NPN configuration, check if power is supplied to one of the two I1 or I2 signals (A or B). * For PNP configuration, verify if one of the two I1 or I2 signals is grounded (A or B). * Check if the photo sensor LEDs (if any) are working correctly. * Ensure the sensor/reflector system is aligned (if present). * Review the Input 1 or Input 2 Debouncing Time parameter setting in the Reading Phase step. * Check the settings for...
G
George ChambersAug 23, 2025
Why is the data transferred to the host incorrect or corrupted from Datalogic Scanner?
- S
  Sarah BrownAug 25, 2025
  If the data transferred to the host from your Datalogic Scanner is incorrect, corrupted, or incomplete, check the following: * Ensure the host serial port settings match the reader's serial port settings. * Verify the Header and Terminator String parameter settings in the DL.CODE Data Formatting step. * Check the various Message Field parameter settings in the DL.CODE Data Formatting step.
R
Randy JonesAug 25, 2025
How to fix Datalogic Scanner when it is not transmitting data to the host?
- L
  lindseylandryAug 26, 2025
  If your Datalogic Scanner is not transmitting anything to the host, consider these potential solutions: * Check the serial cable wiring to ensure it is correct. * If using CBX, make sure the RS422 termination switch is OFF. * Confirm that the host serial port settings are the same as the reader serial port settings. * In DL.CODE, you can configure the COM LED Function to indicate Main Serial Port TX or Main Serial Port RX under Device menu > Settings > Settings > LED Configuration.
M
Mary ThomasAug 27, 2025
What to do if the POWER LED is not lit on Datalogic Scanner?
- J
  John MossAug 27, 2025
  If the POWER LED on your Datalogic Scanner is not lit, check the following: * Ensure the power is connected. * If using a power adapter (like PG6000), verify it's connected to the wall outlet. * If using rail power, check if the rail has power. * If using CBX, confirm it has power by checking the switch and LED. * Verify whether you are referring to the device/accessory cable or the CBX spring clamp connectors. * Measure the voltage either at pin 1 and pin 2 (for the 17-pin connector) or at the spring clamp Vdc and GND (for CBX).
L
leesamanthaAug 27, 2025
Why Datalogic Scanner doesn't transmit results even when TRIGGER LED is blinking?
- T
  terri04Aug 27, 2025
  If the TRIGGER LED on your Datalogic Scanner is blinking but no result is transmitted, verify the Code Collection parameters in the Reading Phase step and the Data Formatting parameters in the Data Formatting step.
M
Melissa TaylorSep 16, 2025
How to fix DL.CODE installation if Autorun or Start.hta doesn't run for Datalogic Card Reader?
- K
  Kristen HuntSep 16, 2025
  If Autorun or Start.hta doesn't run during DL.CODE installation for your Datalogic Card Reader, check your Windows settings to see if Autorun is disabled. Also, ensure the file type .hta is associated with the Microsoft HTML Application host mshta.exe in Windows\System32.
J
Jeanne GarciaSep 14, 2025
What to do if TRIGGER LED is not blinking while the External Trigger is switching on my Datalogic Matrix 120 Card Reader?
- M
  Mallory PalmerSep 14, 2025
  If the TRIGGER LED isn't blinking while the External Trigger is switching on your Datalogic Card Reader, check whether you are referring to the device / accessory cable connector or to the CBX spring clamp connectors. Ensure the sensor is connected to Input 1 or Input 2, and that power is supplied to the photo sensor. For NPN configuration, verify power is supplied to one of the two I1 or I2 signals (A or B). For PNP configuration, ensure one of the two I1 or I2 signals is grounded (A or B). Also, check the photo sensor LEDs and sensor/reflector system alignment. Finally, review the Input 1 or Input 2 Debouncing Time parameter setting, and the settings for Acquisition Trigger, Reading Phase-ON, and Reading Phase-OFF parameters on the Reading Phase step.
M
mattheworrSep 15, 2025
Why is the POWER LED not lit on my Datalogic Card Reader?
- K
  kennedykevinSep 15, 2025
  If the POWER LED is not lit on your Datalogic Card Reader, check the following: 1. Is power connected? 2. If using a power adapter (like PG6000), is it connected to a wall outlet? 3. If using rail power, does the rail have power? 4. If using CBX, does it have power (check switch and LED)? 5. Check if you are referring to the device / accessory cable connector or to the CBX spring clamp connectors. 6. Measure Voltage either at pin 1 and pin 2 (for 17-pin connector) or at spring clamp Vdc and GND (for CBX).
C
Christopher VasquezSep 6, 2025
What to do if my Datalogic Matrix 120 is not transmitting anything via serial communication?
- C
  christina98Sep 6, 2025
  If your Datalogic Card Reader isn't transmitting anything to the host via serial communication, first check the serial cable wiring. If you're using a CBX, ensure the RS422 termination switch is OFF. Confirm that the host serial port settings match the reader's. Also, note that the COM LED Function can be configured to indicate Main Serial Port TX or Main Serial Port RX in DL.CODE Device menu > Settings > Settings > LED Configuration.
A
Anne RamirezSep 4, 2025
How to fix Autorun or Start.hta when it doesn't run during Datalogic Scanner DL.CODE Installation?
- S
  Scott RussellSep 4, 2025
  If Autorun or Start.hta doesn't run during DL.CODE installation for your Datalogic Scanner, check your Windows settings to see if Autorun is disabled. Also, associate the file type .hta with the Microsoft HTML Application host mshta.exe in Windows\System32.

Summary

INSTALLATION PROCEDURE

Mounting

Procedure for physically mounting the Matrix 120 reader using a mounting bracket.

Electrical Connections

Details on making necessary electrical connections for the reader.

I;O Connections

Information on I/O connections using CAB-1011 and CBX, including NPN/PNP wiring.

Connector Pinouts

Pinout details for Power-Serial-IO and Ethernet connections of the reader.

CONFIGURATION

Installing DL.CODE

Steps to download, install, and run the DL.CODE software for reader configuration.

TECHNICAL FEATURES

Electrical Features

Details on power supply, consumption, and communication interfaces of the reader.

Environmental Features

Information on operating temperature, storage, humidity, and resistance ratings.

User Interface

Description of LED indicators and keypad button functionality for user interaction.

Software Features

Overview of readable code symbologies, operating modes, and configuration methods.

SAFETY AND COMPLIANCE

EMC and Power Supply Compliance

Guidelines for EMC compatibility and safe power supply connections.

Laser Safety

Information on the Class 1M laser source and safety precautions for use.

Regulatory Compliance (CE;FCC)

Details on CE marking directives and FCC rules for device operation and interference.

ADDITIONAL INFORMATION

File Downloads

Links to download user guides and other relevant files for the Matrix 120.

References and Related Manuals

List of external references, patents, and related product manuals for further information.

Datalogic Matrix 120 Specifications

General

Type	2D Imager
Light Source	White LED
Aiming System	Laser
Image Sensor	CMOS
Read Capability	1D, 2D
Minimum Resolution	0.1 mm
Interface	USB, RS-232, Ethernet
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 60°C
Power Supply	5V DC
Humidity	90% non-condensing
Certifications	CE
