MATRIX 400™ QUICK GUIDE
3
STEP 1 – ASSEMBLE THE READER
The first step to perform is to assemble the accessories that make up the Matrix 400™ reader. The lens and
either an internal or an external illuminator must be used. This procedure shows an internal illuminator.
CAUTION
Matrix 400™ must be disconnected from the power supply during this procedure.
1. In a dust-free environment, remove the Matrix 400™ Lens Cover by unscrewing it.
CAUTION
Do not touch the sensor aperture, lens glass or lens cover glass. These areas must be kept
clean. Avoid any abrasive substances that might damage these surfaces during cleaning.
2. Remove the rubber sensor protection cap by pulling it out of the base.
3. Mount the lens by screwing it tightly onto the base.
4. If using an internal illuminator:
a. Mount the 4 internal illuminator spacers into the holes provided on the base.
b. Align and mount the Illuminator board tightly onto the spacers using the 4 screws provided in the
illuminator package. The spacers are positioned asymmetrically to avoid incorrect alignment.
5. To keep dust and dirt off of the lens during mounting, temporarily replace the lens cover.

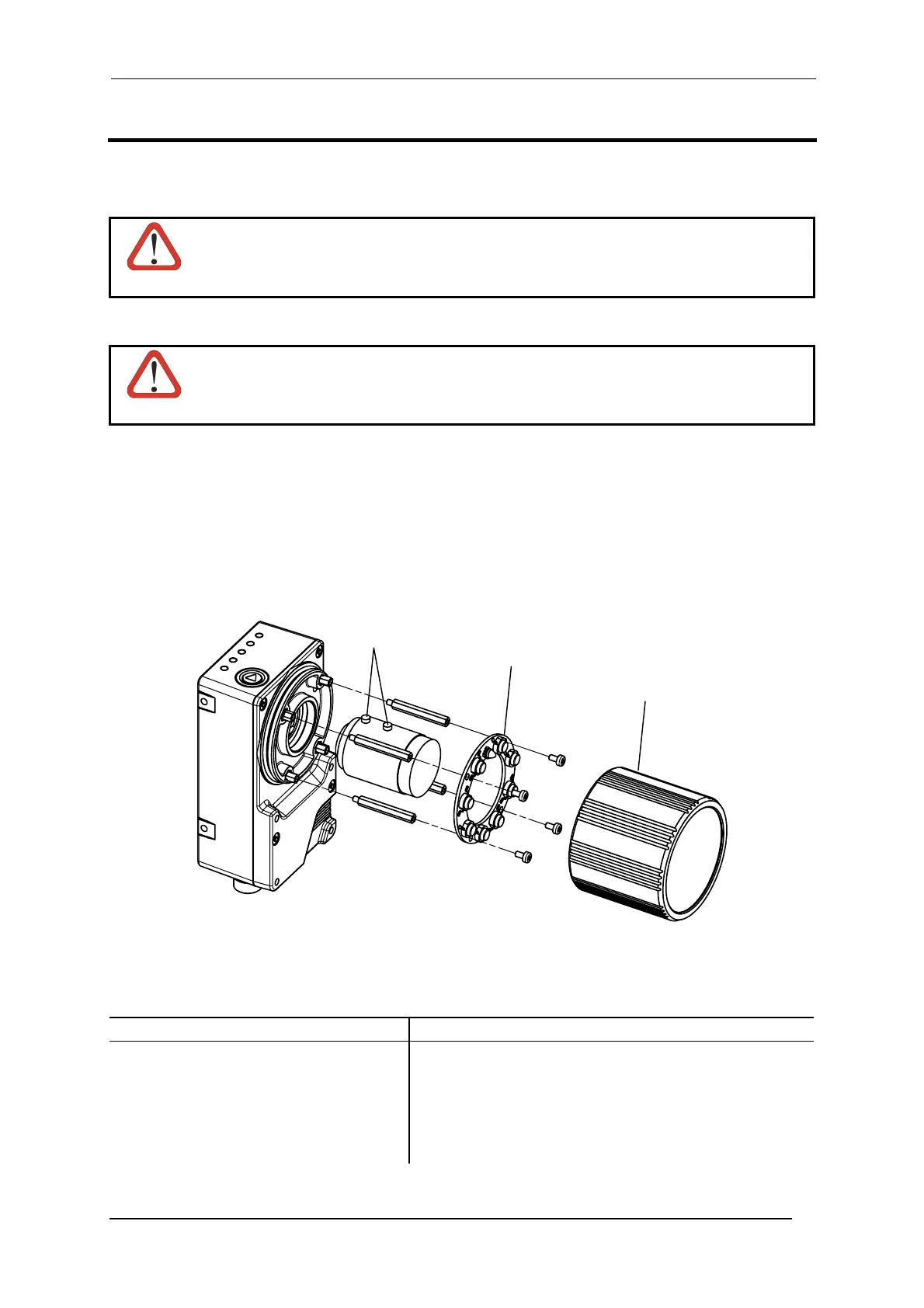

Figure 1 – Assembling Matrix 400™ Accessories
REQUIRED ACCESSORIES
Lenses Internal Illuminators
93ACC1793 LNS-1006 6MM C-MOUNT LENS 93A401019 LT-001 INTERNAL LT RED NARROW ANGLE
93ACC1794 LNS-1109 9MM C-MOUNT LENS 93A401020 LT-002 INTERNAL LT RED WIDE ANGLE
93ACC1795 LNS-1112 12.5MM C-MOUNT LENS 93A401021 LT-003 INTERNAL LT WHITE NARROW ANGLE
93ACC1796 LNS-1116 16MM C-MOUNT LENS 93A401022 LT-004 INTERNAL LT WHITE WIDE ANGLE
93ACC1797 LNS-1125 25MM C-MOUNT LENS 93A401024 LT-006 INTERNAL LT RED SUPER NARROW ANGLE
93ACC1798 LNS-1135 35MM C-MOUNT LENS
93ACC1799 LNS-1150 50MM C-MOUNT LENS
Set Screws
Internal
Illuminator
Lens Cover
