Datalogic Matrix 400 Quick Reference Guide

MATRIX 400™ QUICK GUIDE
8
STEP 6 – X-PRESS™ CONFIGURATION
Once Matrix 400™ has calibrated image density, you can configure it for optimal code reading relative to your
application. This configuration can be performed either through the X-PRESS™ Interface or the VisiSet™
configuration program.
LOCATE
1. Enter the Focus function by pressing and holding the X-
PRESS™ push button until the Focus LED is on.
2. Release the button to enter the Focus function. The
Blue Diamonds™ turn on.
3. Select a code from your application or from the
Datalogic 1D/2D Test chart. Position the code at the
center of the FOV (equidistant from the Blue
Diamonds™).
4. Exit the Focus function by pressing the X-PRESS™
push button once. The Blue Diamonds™ turn off.
READY
green
green
y
ellow
y
ellow
red
SETUP
FOCUS
T
ES
T
LEARN
GOOD
T
RIGGER
COM
STATUS

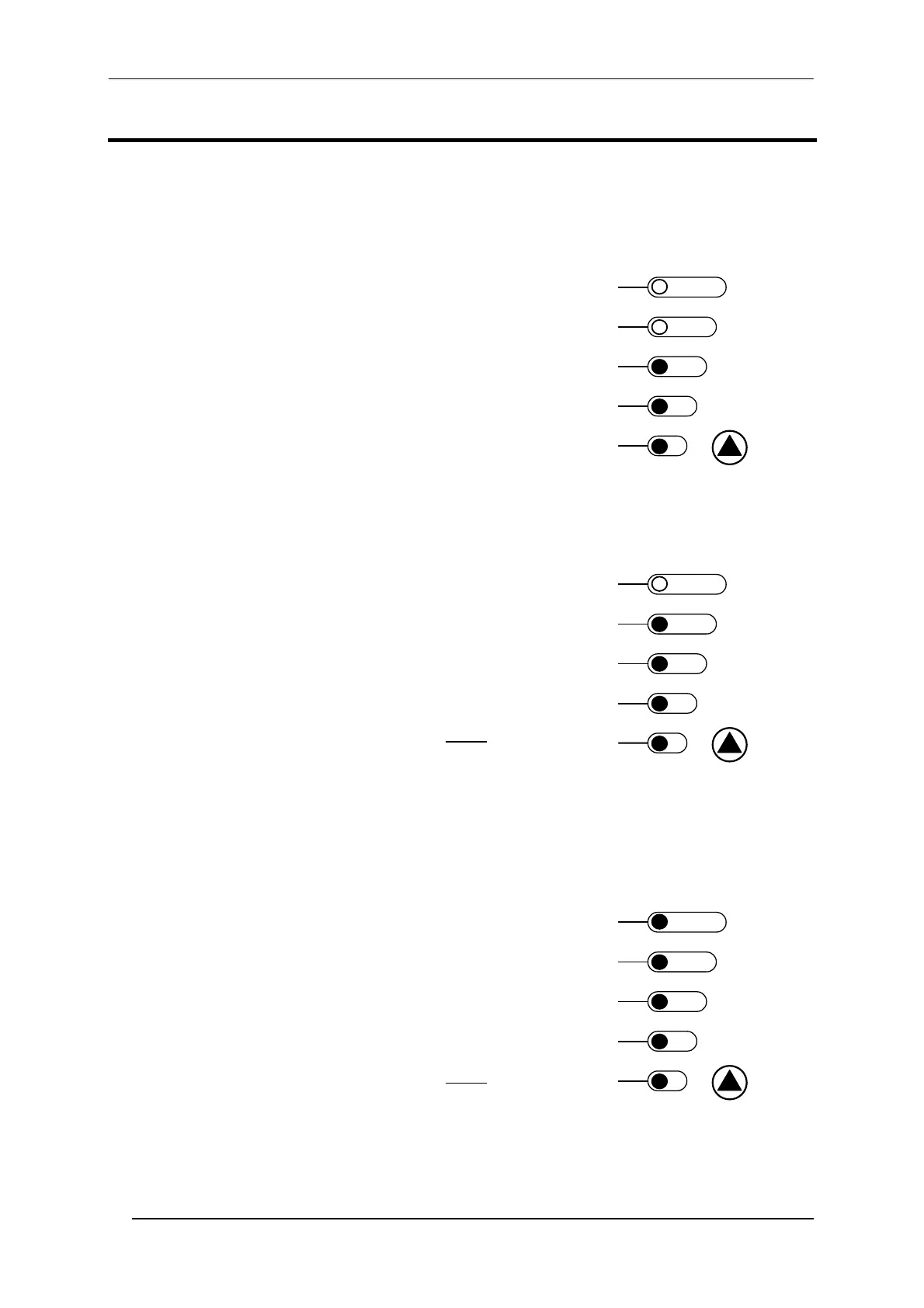

Figure 11 – X-PRESS™ Interface: Locate Function
SETUP
5. Enter the Setup function by pressing and holding the X-
PRESS™ push button until the Setup LED is on.
6. Release the button to enter the Setup function. The
Setup LED will blink until the procedure is completed.
The Setup procedure ends when the Image Acquisition
parameters are successfully saved in the reader
memory, the Setup LED will remain on continuously and
Matrix 400™ emits 3 high pitched beeps.
If the calibration cannot be reached after a timeout of
about 5 (five) seconds Matrix 400™ will exit without
saving the parameters to memory, the Setup LED will not
remain on continuously but it will just stop blinking. In this
case Matrix 400™ emits a long low pitched beep.
7. Exit the Setup function by pressing the X-PRESS™
push button once.
READY
green
green
y
ellow
y
ellow
red
SETUP
FOCUS
T
ES
T
LEARN
GOOD
T
RIGGER
COM
STATUS
Figure 12 – X-PRESS™ Interface: Setup Function
LEARN
8. Enter the Learn function by pressing and holding the X-
PRESS™ push button until the Learn LED is on.
9. Release the button to enter the Learn function. The
Learn LED will blink until the procedure is completed.
The Learn procedure ends when the Image Processing
and Decoding parameters are successfully saved in the
reader memory, the Learn LED will remain on
continuously and Matrix 400™ emits 3 high pitched
beeps.
If the calibration cannot be reached after a timeout of
about 3 (three) minutes Matrix 400™ will exit without
saving the parameters to memory, the Learn LED will not
remain on continuously but it will just stop blinking. In this
case Matrix 400™ emits a long low pitched beep.
10. Exit the Setup function by pressing the X-PRESS™
push button once.
READY
green
green
y
ellow
y
ellow
red
SETUP
FOCUS
T
ES
T
LEARN
GOOD
T
RIGGER
COM
STATUS
Figure 13 – X-PRESS™ Interface: Learn Function
If you have used this procedure to configure Matrix 400™ go to step 8.
