MATRIX 400™ QUICK GUIDE
12
STEP 8 – TEST MODE
Use a code suitable to your application to test the reading performance of the system. Alternatively, you can use
the Datalogic 1D/2D Test Chart (Code 39, Data Matrix ECC 200).
1. Enter the Test function by pressing and holding the X-PRESS™ push button until the Test LED is on.
2. Release the button to enter the Test function.
Once entered, the Bar Graph on the five LEDs is activated and if the reader starts reading codes the Bar-
Graph shows the Good Read Rate. In case of no read condition, only the STATUS LED is on and blinks.
READY
g
reen
g
reen
y
ellow
y
ellow
red
SETUP
FOCUS
T
ES
T
LEARN
GOOD
T
RIGGER
COM
STATUS

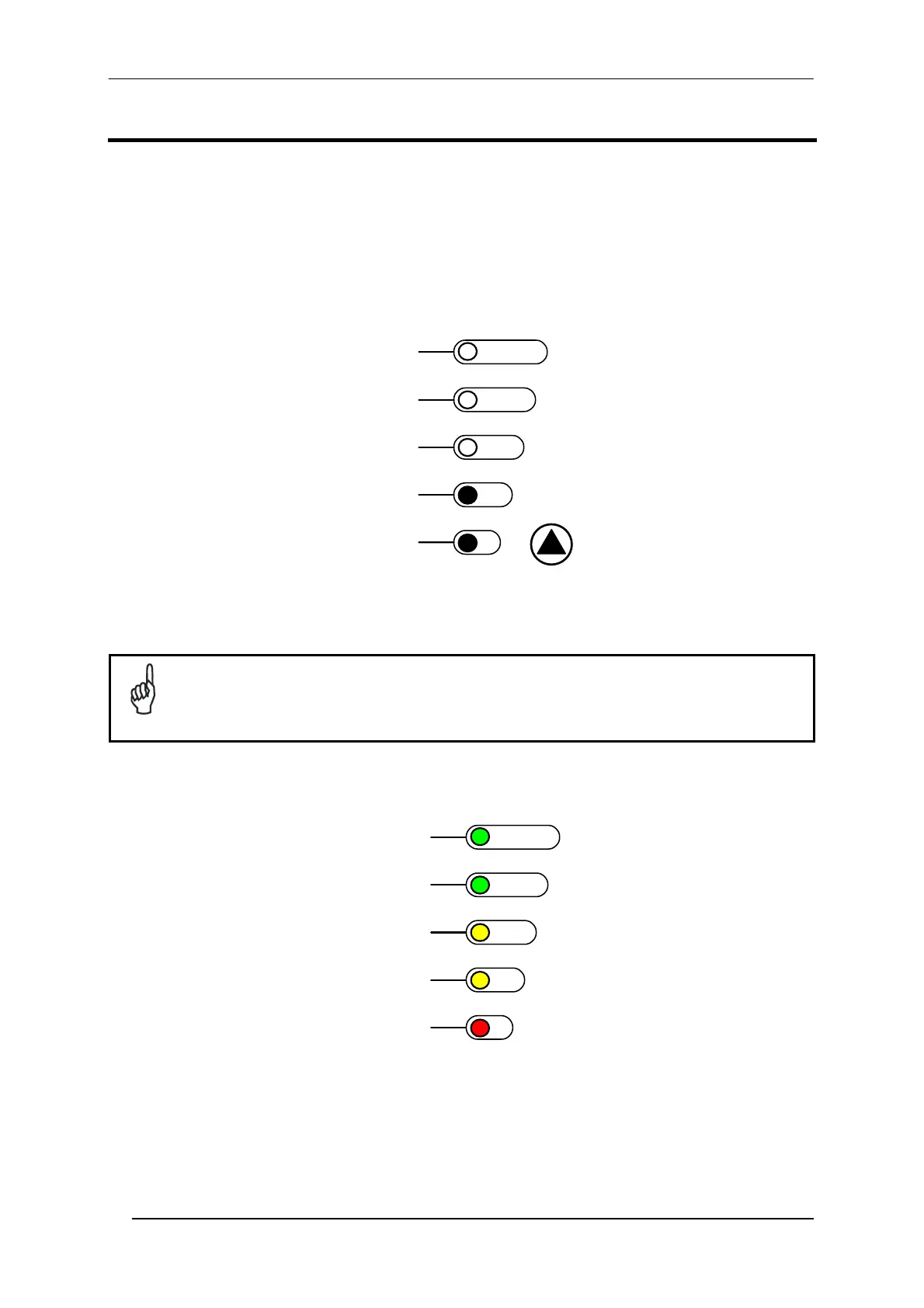

Figure 16 – X-PRESS™ Interface: Test Function
3. To exit the Test, press the X-PRESS™ push button once.
NOTE
By default, the Test exits automatically after three minutes.
The Bar Graph has the following meaning:
READY
≥
95%
≥
75%
≥
60%
≥
40%
≥
20%
SETUP
FOCUS
T
ES
T
LEARN
GOOD
T
RIGGER
COM
STATUS
