60
MEMOR™ K
DATA CAPTURE
The Memor K has an integrated imager that collects data by scanning barcodes.
See "
Scanner Settings" on page 24 for instructions on configuring the scanner settings.
IMAGER DATA CAPTURE
The imager uses digital camera technology to take a digital picture of a barcode, the
image is stored in memory and software decoding algorithms are executed to extract
the data from the image.

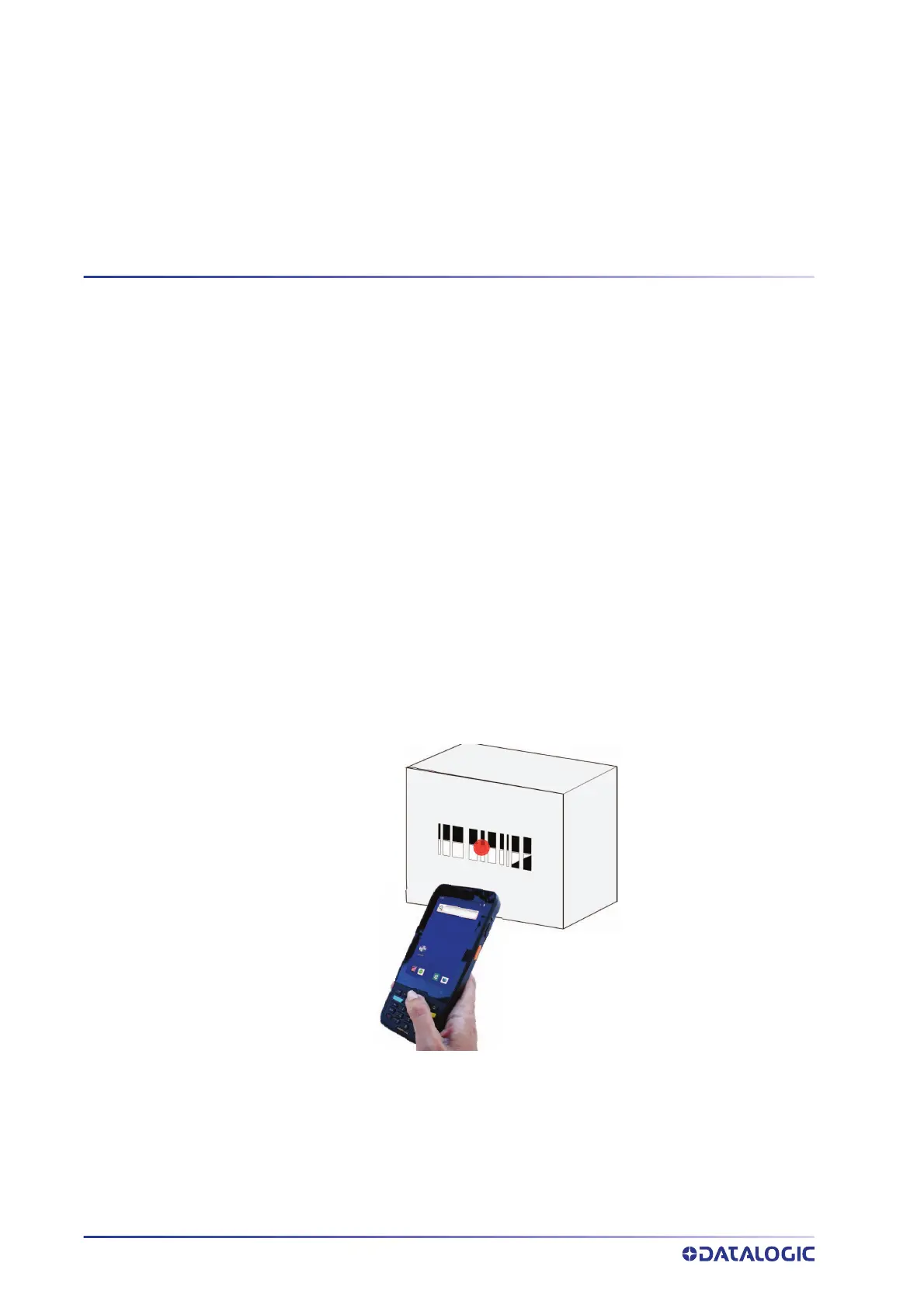

To scan a barcode symbol:
1. Point the scan window at the barcode.
2. Press one of the scan triggers. The imager projects a laser aiming pattern similar to
those used on
cameras. The aiming pattern is used to position the barcode or
object within the field of view.
3. Center the symbol in any orientation within the aiming pattern. Ensure the entire
symbol is within the r
ectangular area formed by the brackets in the aiming pat-
tern, then either wait for the timeout or release the Scan Key to capture the
image. A r
ed beam illuminates the symbol, which is captured and decoded.
If the scan has been successful:
• If enabled, the good read beep plays.
• If enabled, the GreenSpot projects a green spot
onto the barcode image.
• If enabled, the good read indicator positioned at the top left side of the display
glow
s solid green.
•If Enable display notification is
enabled, the decode results display on the screen
(see "
Enable Display Notification" on page 25).
